Home >> Volvo >> 1990 >> 740 L4-2.3L SOHC VIN 88 B230F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Compartment at Right Wheelhouse Strut Tower

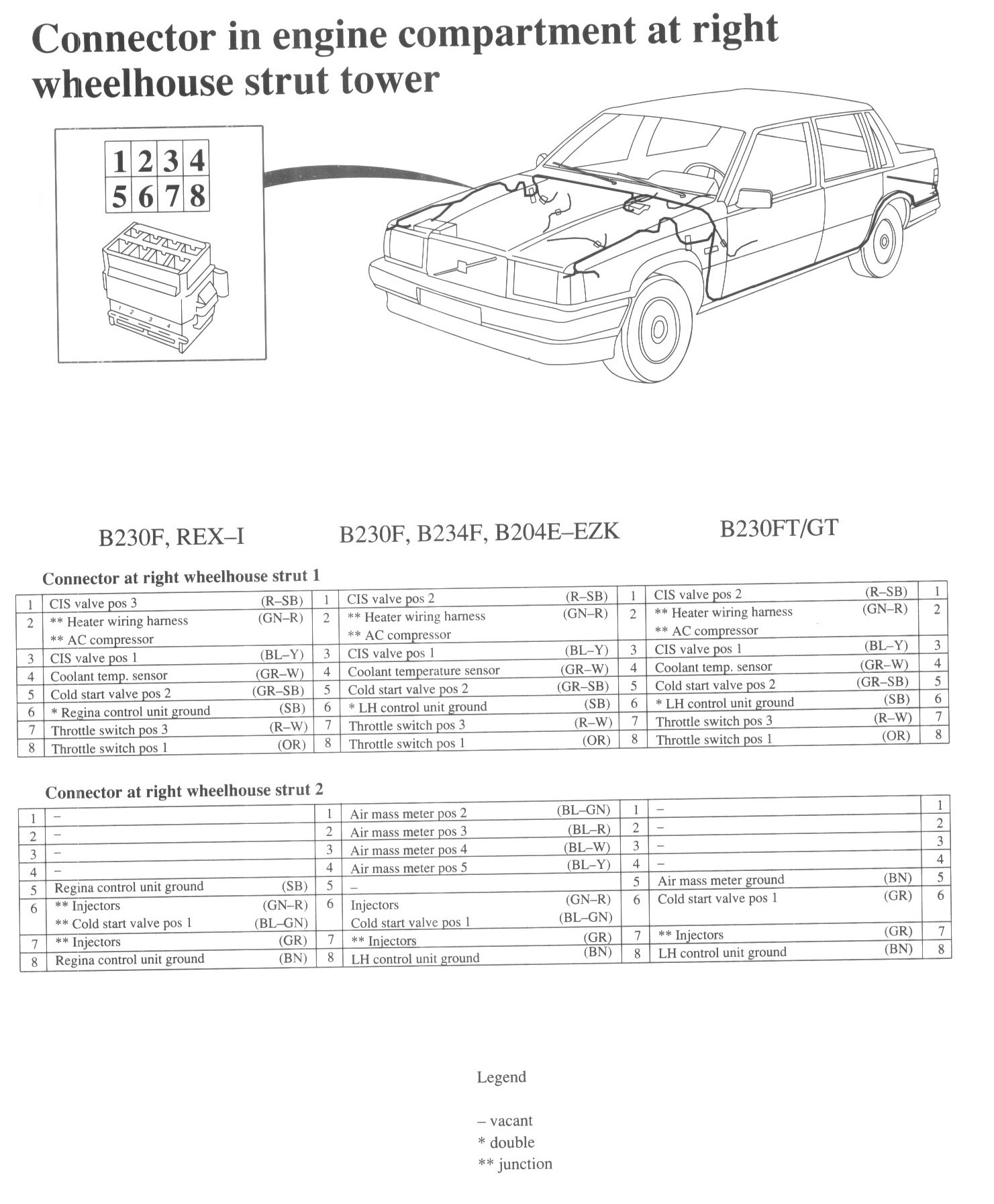

Engine Compartment at Right Wheelhouse Strut Tower
