System Diagram

Wiring Diagrams:

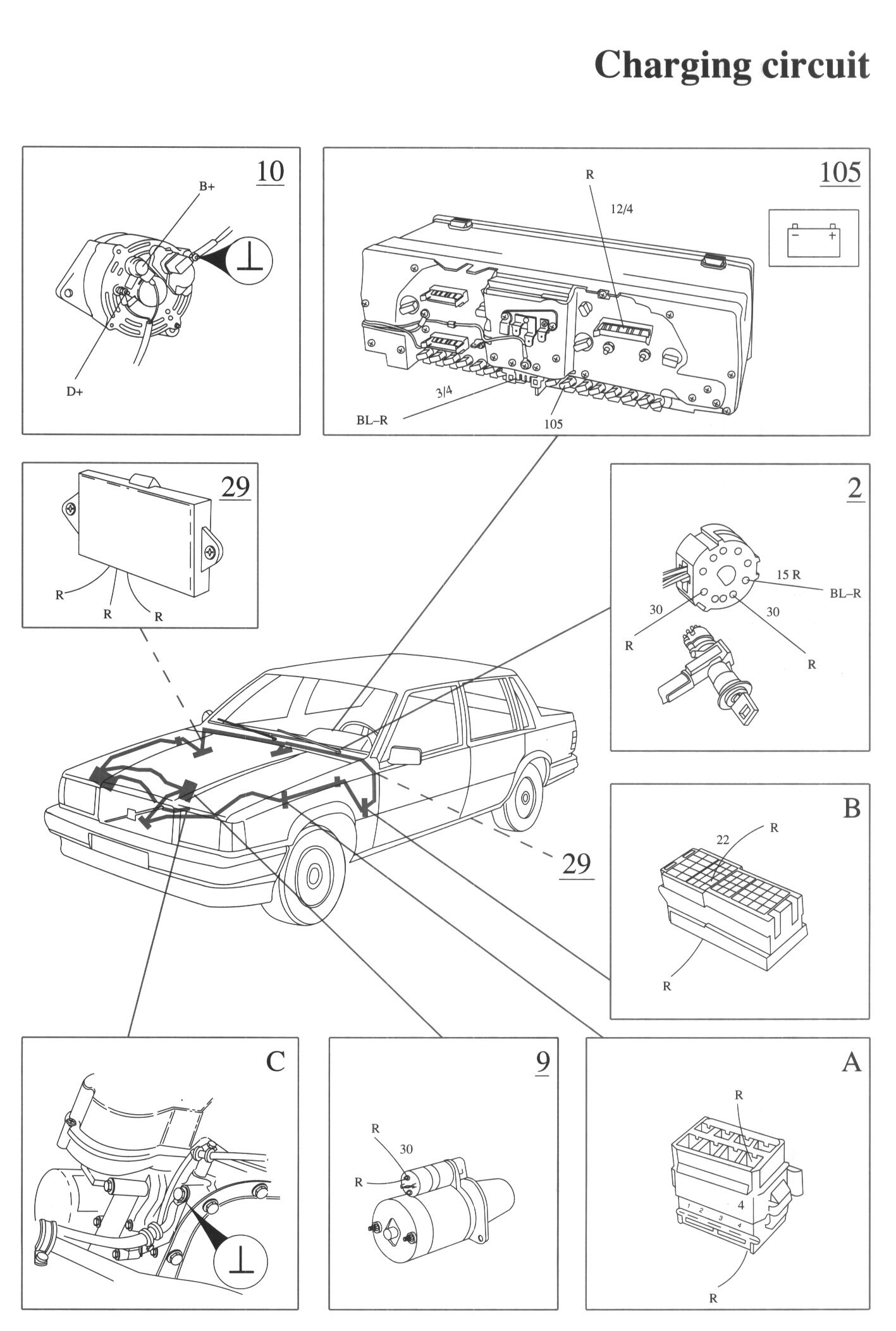

Component / Connector Views:

LEGEND
2 Ignition switch
3 4-pole connector, combined instrument panel
9 Starter motor

10 Alternator
12 12-pole connector, combined instrument panel
29 Positive terminal

105 Indicator lamp, charging

A Connector, left A-post
B Connector, left A-post
C Ground connection, battery
