System Diagram

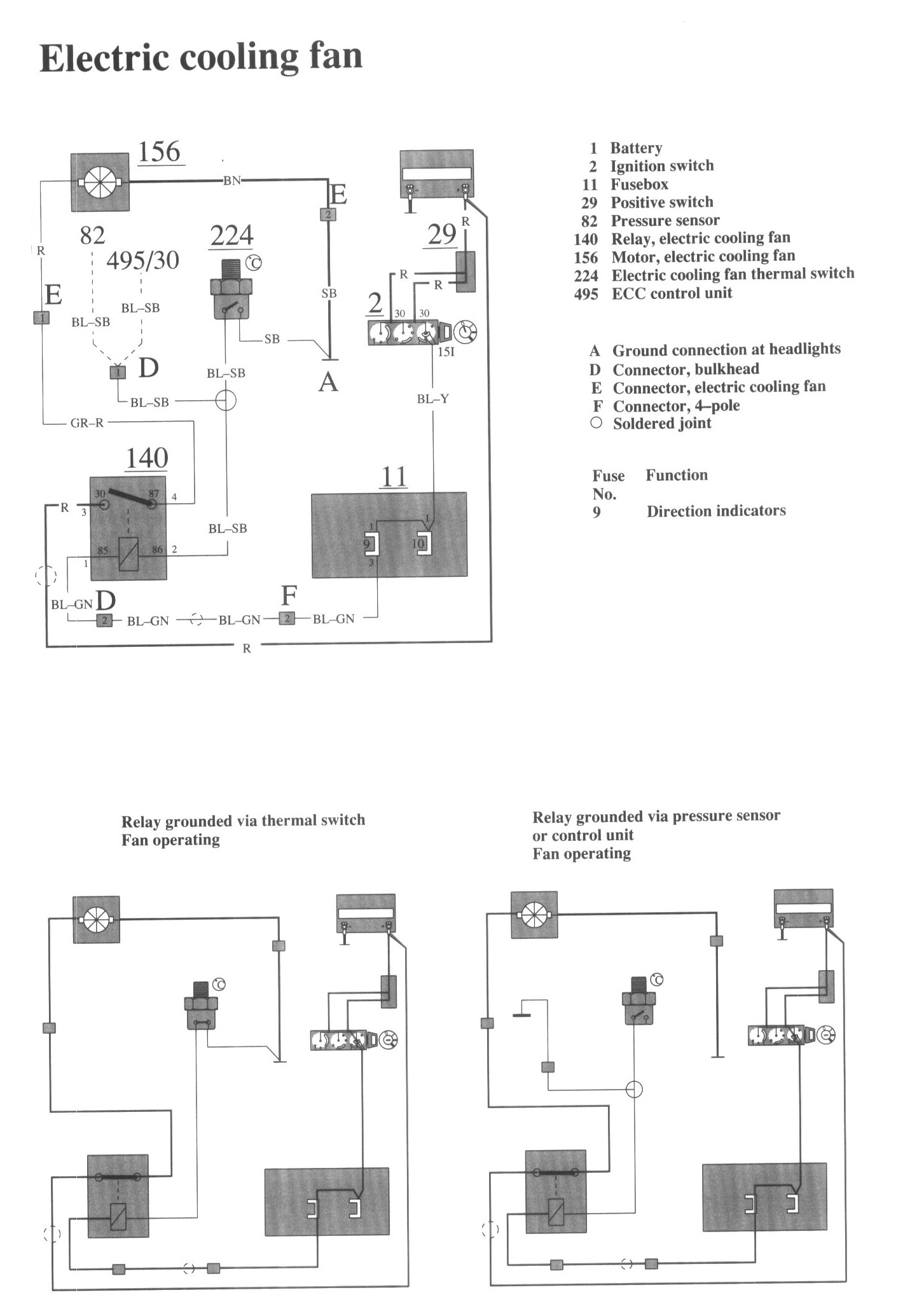

Wiring Diagrams:

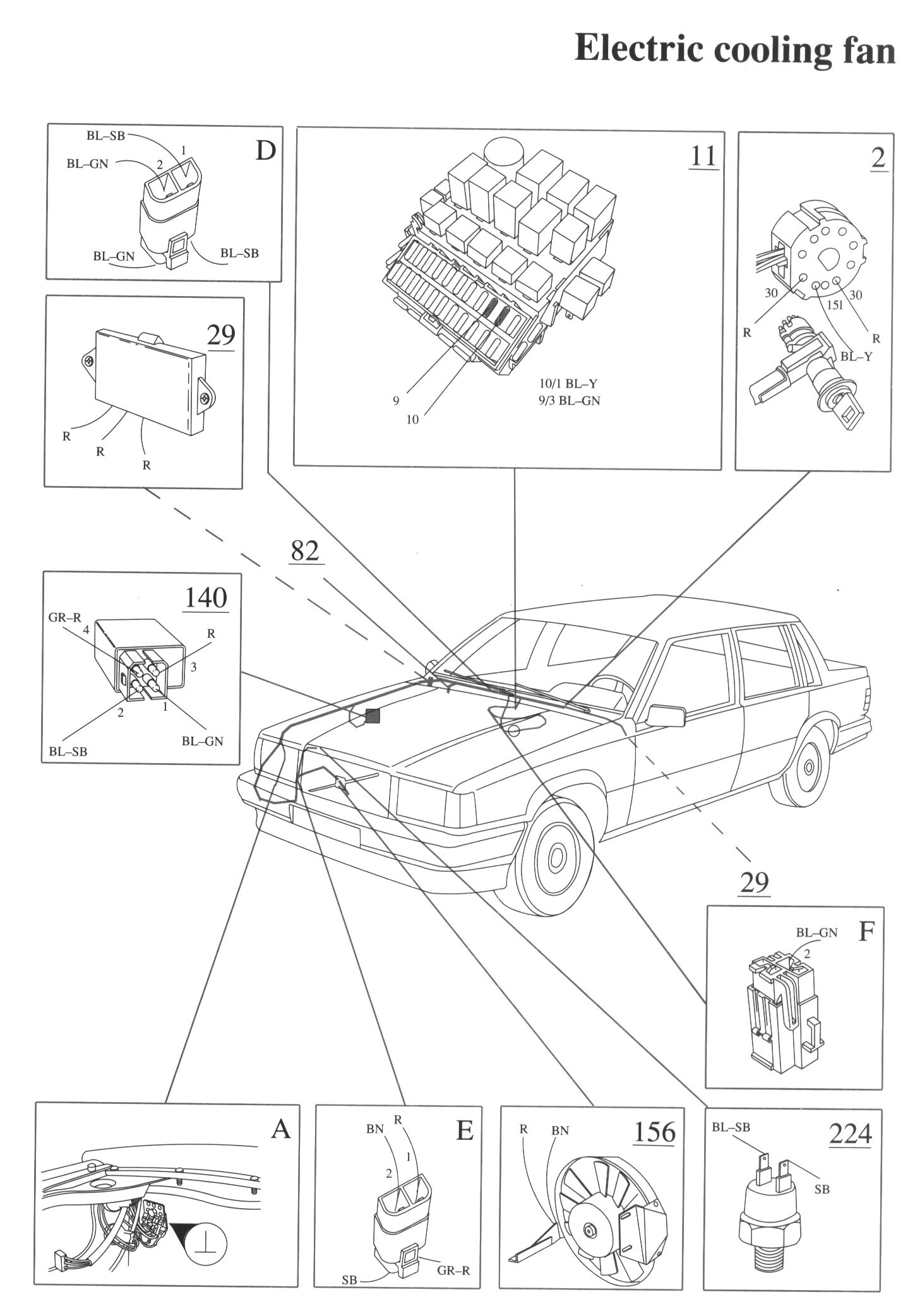

Component / Connector Views:

LEGEND
1 Battery
2 Ignition switch

11 Fusebox
29 Positive switch
82 Pressure sensor

140 Relay, electric cooling fan
156 Motor, electric cooling fan
224 Electric cooling fan thermal switch
495 ECC control unit

A Ground connection at headlights
D Connector, bulkhead
E Connector, electric cooling fan
F Connector, 4-pole
