Brake Lamp

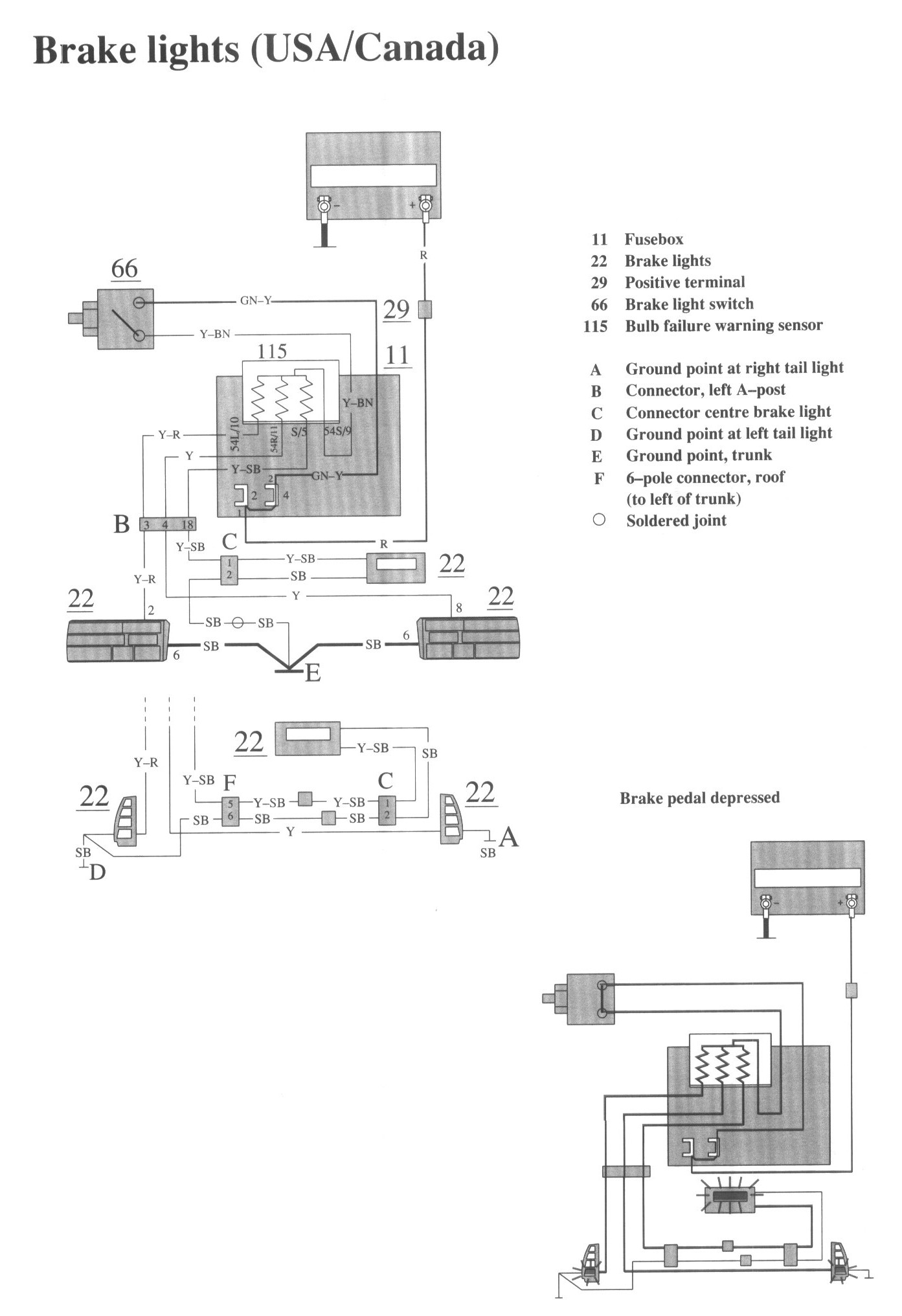

Wiring Diagrams:

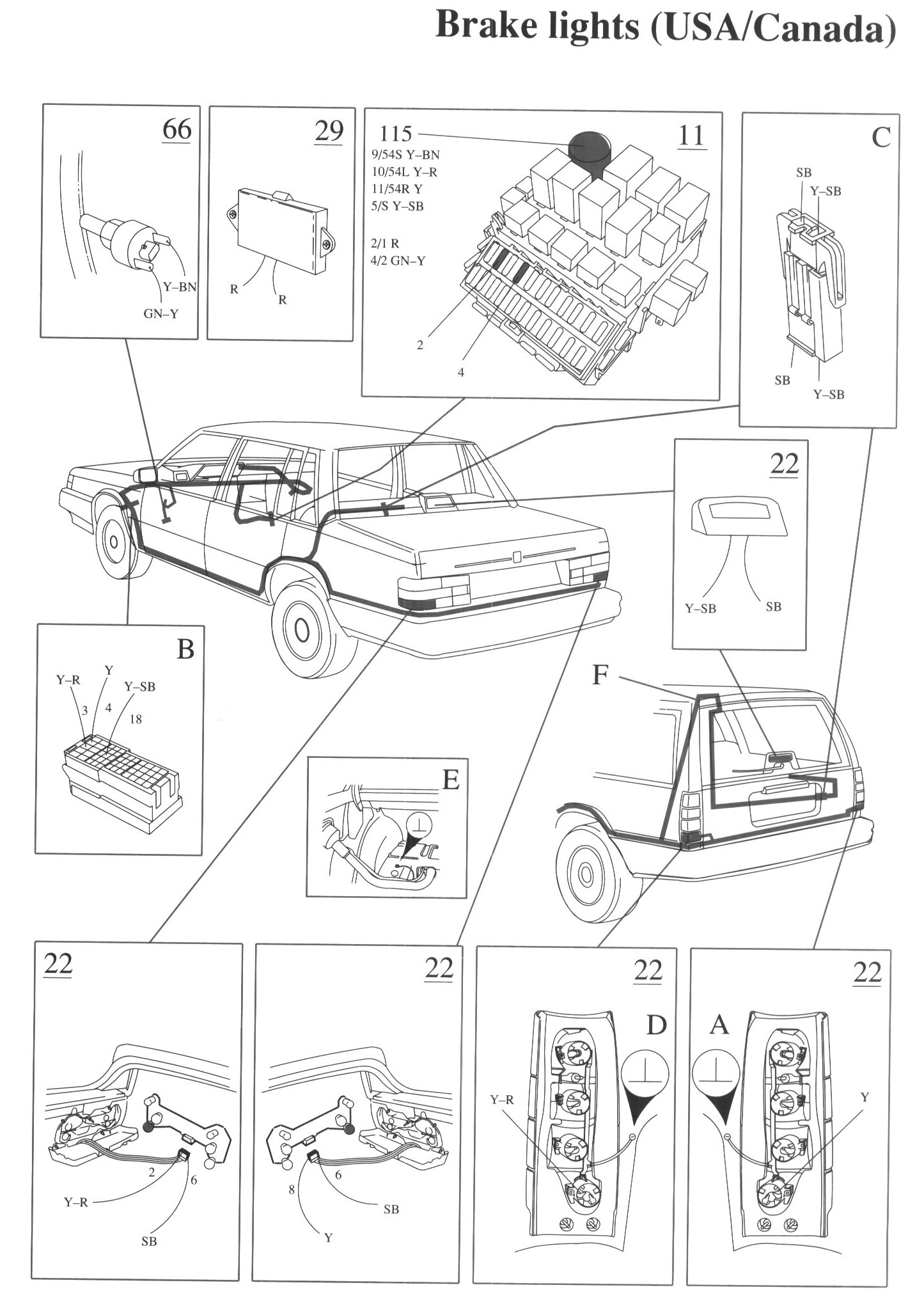

Component / Connector Views:

LEGEND
11 Fusebox

22 Brake lights
29 Positive terminal
66 Brake light switch

115 Bulb failure warning sensor

A Ground point at right tail light
B Connector, left A-post
C Connector centre brake light
D Ground point at left tail light
E Ground point, trunk
F 6-pole connector, roof (to left of trunk)
