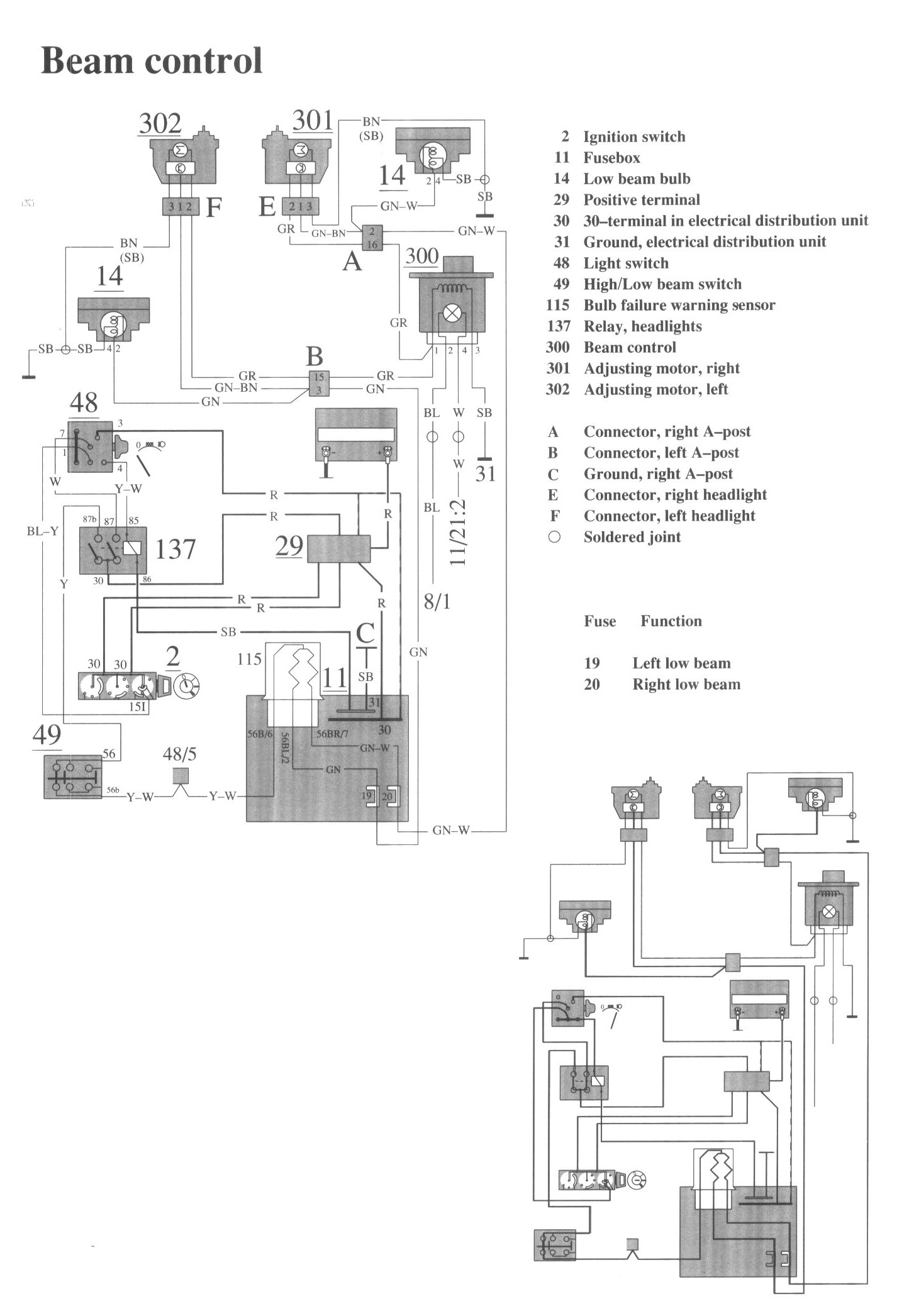

Beam Length Control 740

Wiring Diagrams:

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
14 Low beam bulb
29 Positive terminal
30 30-terminal in electrical distribution unit
31 Ground, electrical distribution unit
48 Light switch
49 High/Low beam switch

115 Bulb failure warning sensor
137 Relay, headlights
300 Beam control
301 Adjusting motor, right
302 Adjusting motor, left

A Connector, right A-post
B Connector, left A-post
C Ground, right A-post
E Connector, right headlight
F Connector, left headlight
