Tail Lamp

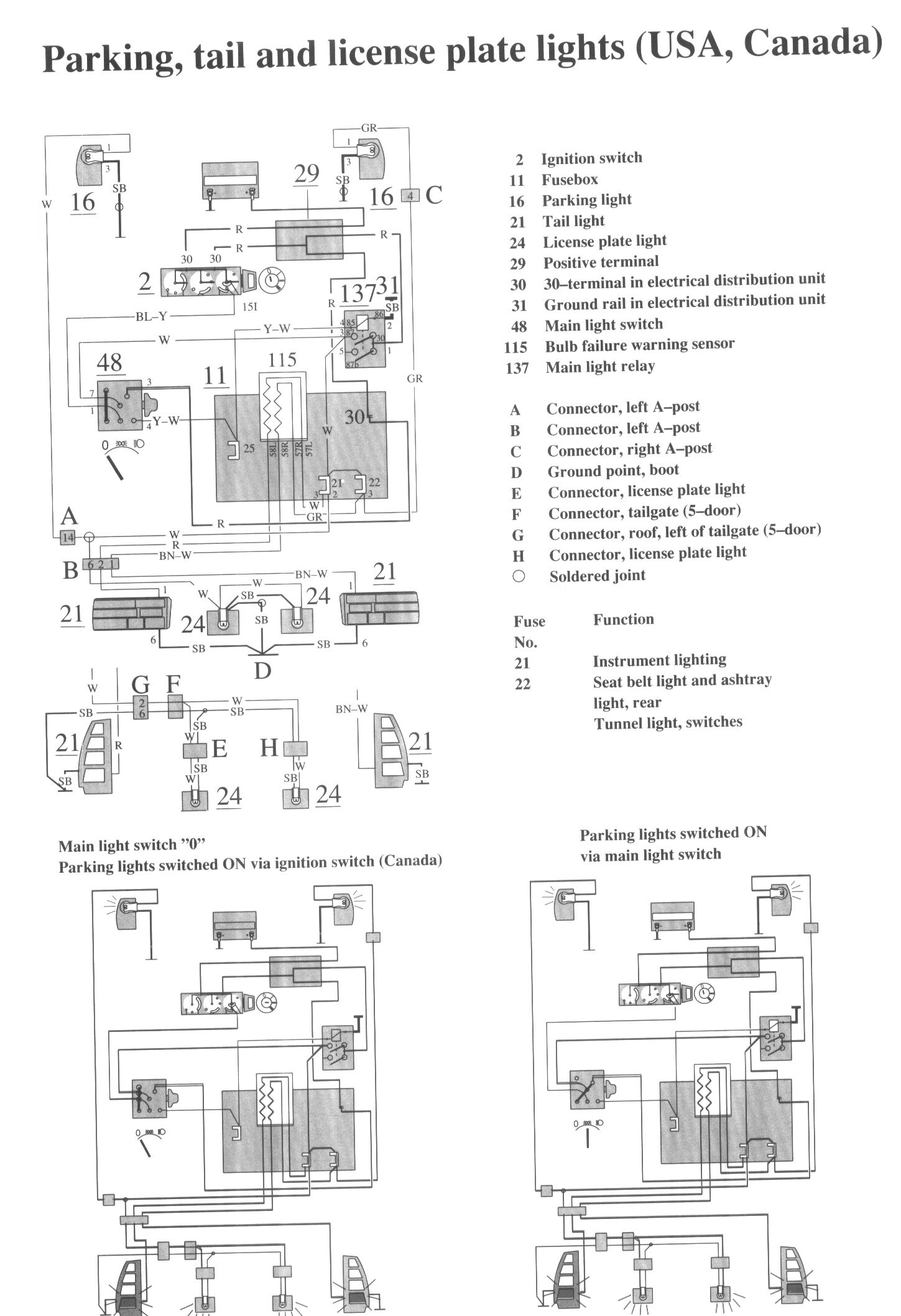

Wiring Diagrams:

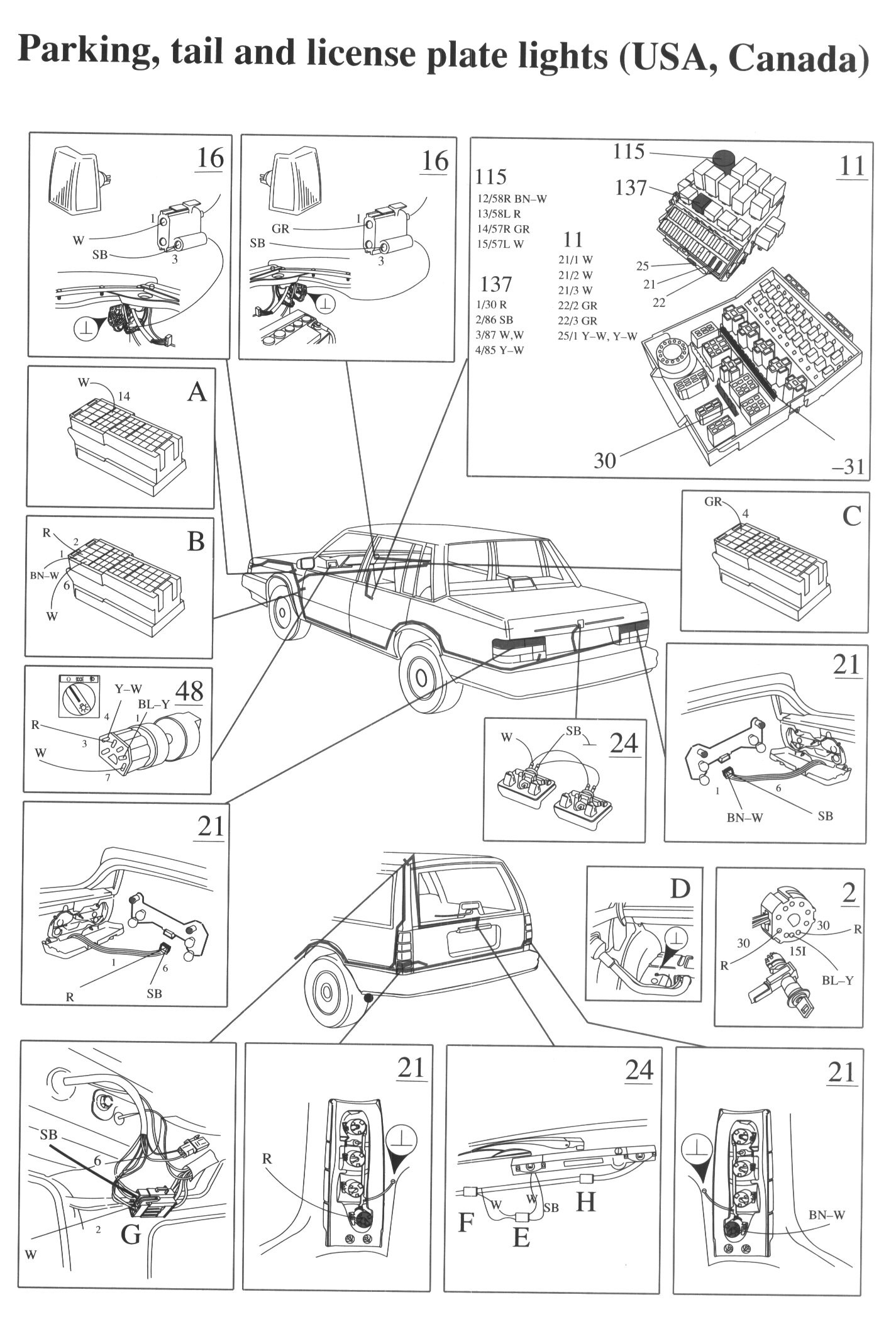

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
16 Parking light
21 Tail light
24 License plate light
29 Positive terminal
30 30-terrniaal in electrical distribution unit
31 Ground rail in electrical distribution unit
48 Main light switch

115 Bulb failure warning sensor
137 Main light relay

A Connector, left A-post
B Connector, left A-post
C Connector, right A-post
D Ground point, boot
E Connector, license plate light
F Connector, tailgate (5-door)
G Connector, roof, left of tailgate (5-door)
H Connector, license plate light
