Power Aerial and Radio With Separate Amplifier

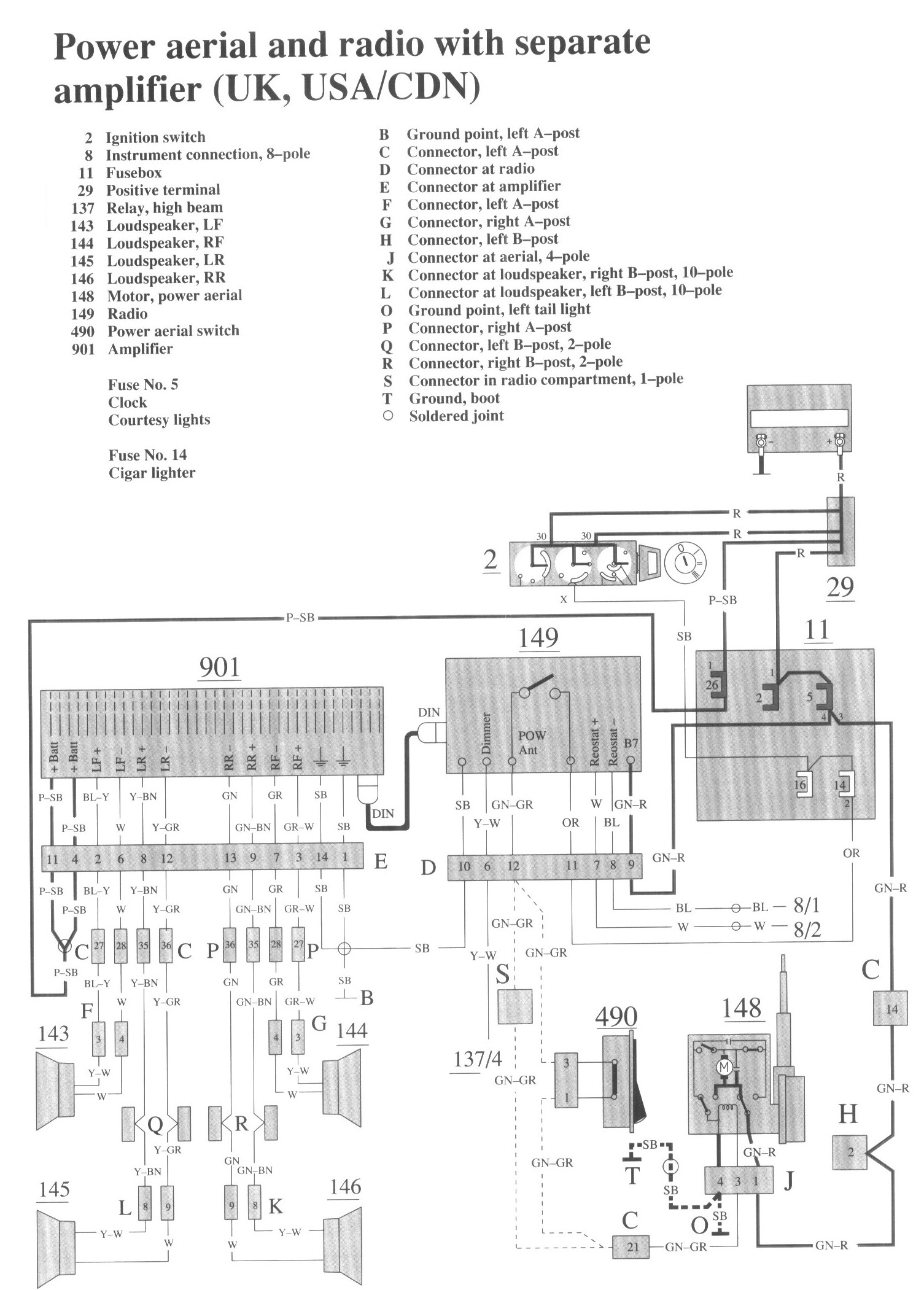

Wiring Diagrams:

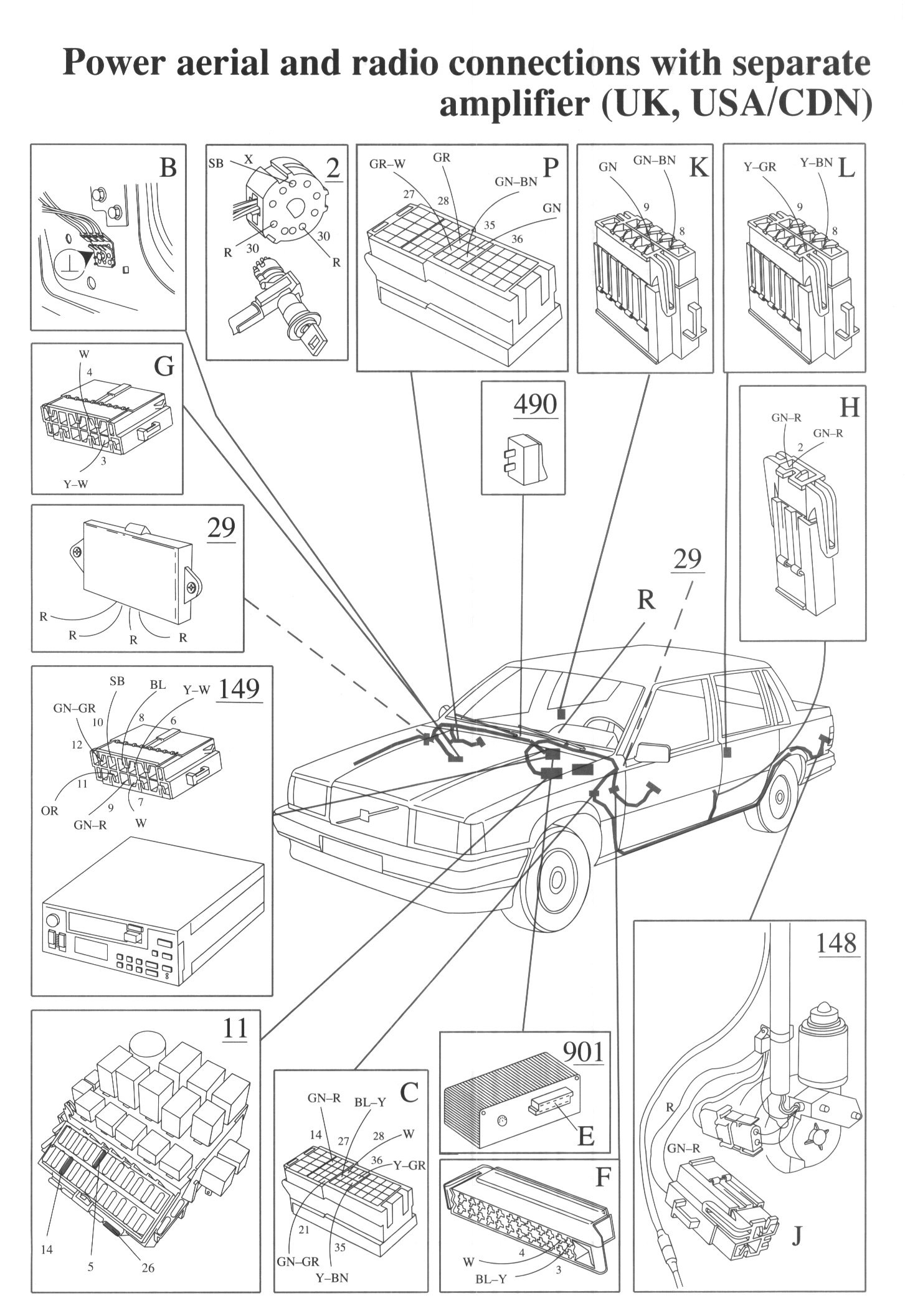

Component / Connector Views:




LEGEND
2 Ignition switch
8 Instrument connection, 8-pole

11 Fusebox
29 Positive terminal

137 Relay, high beam
143 Loudspeaker, LF
144 Loudspeaker, RF
145 Loudspeaker, LR
146 Loudspeaker, RR
148 Motor, power aerial
149 Radio
490 Power aerial switch
901 Amplifier

B Ground point, left A-post
C Connector, left A-post
D Connector at radio
E Connector at amplifier
F Connector, left A-post
G Connector, right A-post
H Connector, left B-post
J Connector at aerial, 4-pole
K Connector at loudspeaker, right B-post, 10-pole
L Connector at loudspeaker, left B-post, 10-pole
O Ground point, left tail light
P Connector, right A-post
Q Connector, left B-post, 2-pole
R Connector, right B-post, 2-pole
S Connector in radio compartment, 1-pole
T Ground, boot
