Electronic Climate Control

Wiring Diagrams:

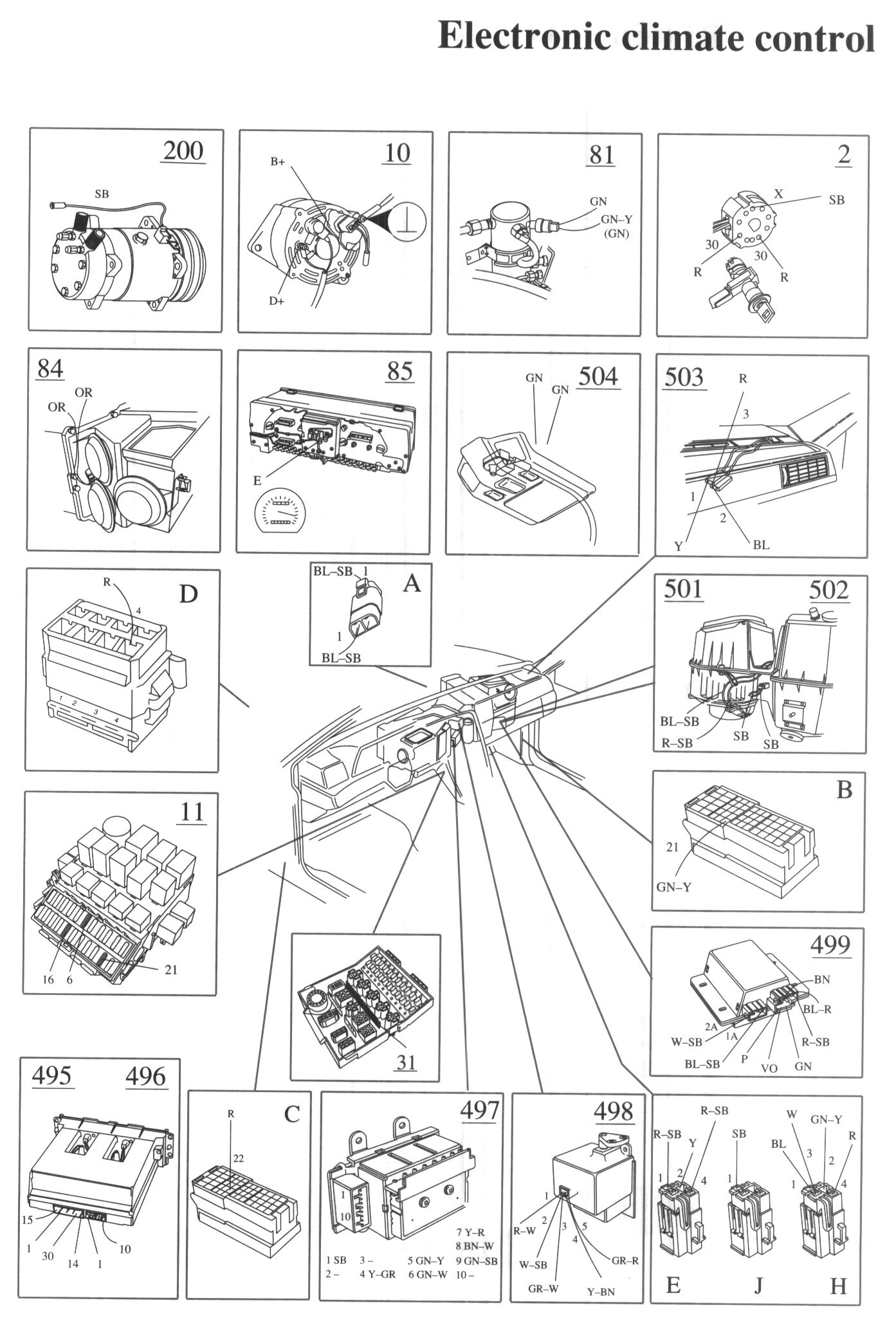

Component / Connector Views:

LEGEND
1 Battery
2 Ignition coil
8 8-pole connection, comb. instrument

10 Alternator
11/1-26 Fuses
12 12-pole connector, comb. instrument
29 Positive terminal
81 AC pressure switch
84 Coolant temp. sensor
85 Speedometer

137 Headlight relay
140 Electric cooing fan relay
200 Compressor solenoid
472 LH-jetronic 2.4 control unit
473 Regina control unit
495 ECC control unit
496 ECC sensor control unit
497 Solenoids
498 ECC servo motors
499 ECC power unit
501 Heater fan motor
502 Ambient temp. sensor
503 Solar sensor
504 In-car temp. sensor

A Bulkhead
B Right A-post
C Left A-post
D Left suspension tower
E Dashboard
F Right A-post
H Dashboard
J Dashboard
K Accessories
