Back-Up/Reversing Lights

Wiring Diagrams:

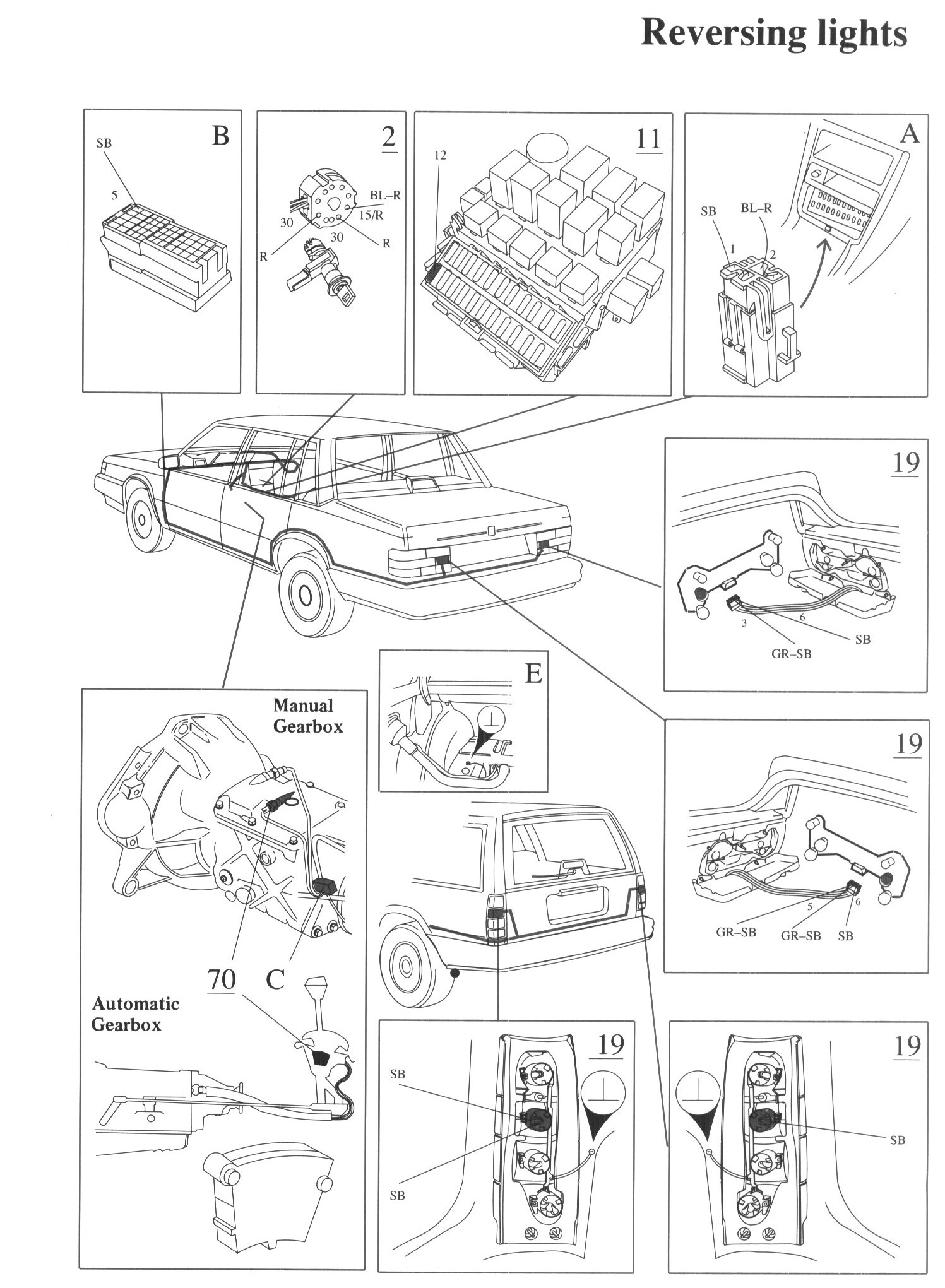

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
19 Reversing lights
29 Positive terminal
70 Reversing light switch

A Connector, electrical distribution unit
B Connector, left A-post
C Connector at gearshift (manual) E Ground, boot
