Turn/Direction Indicators, Hazard Warning Lights

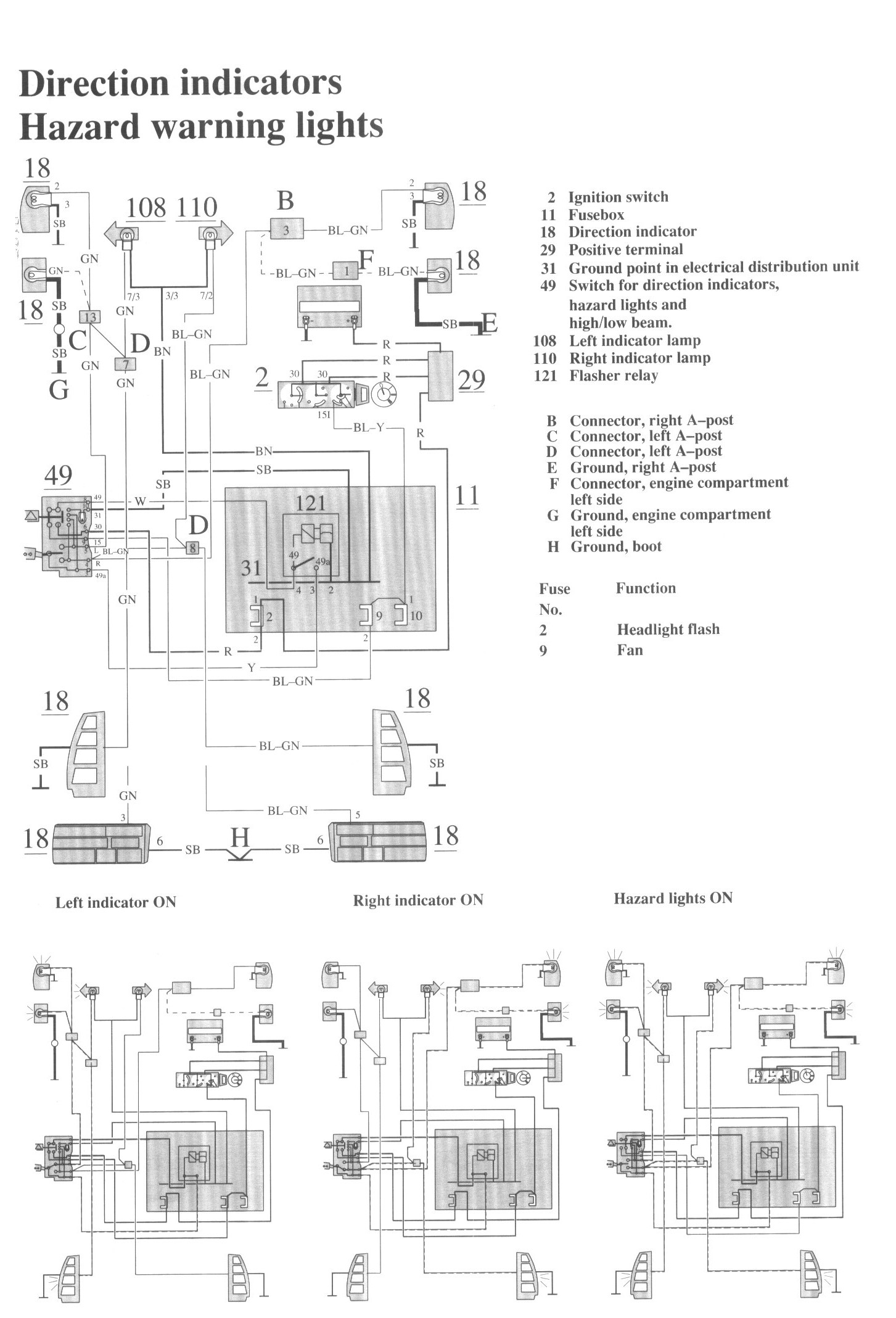

Wiring Diagrams:

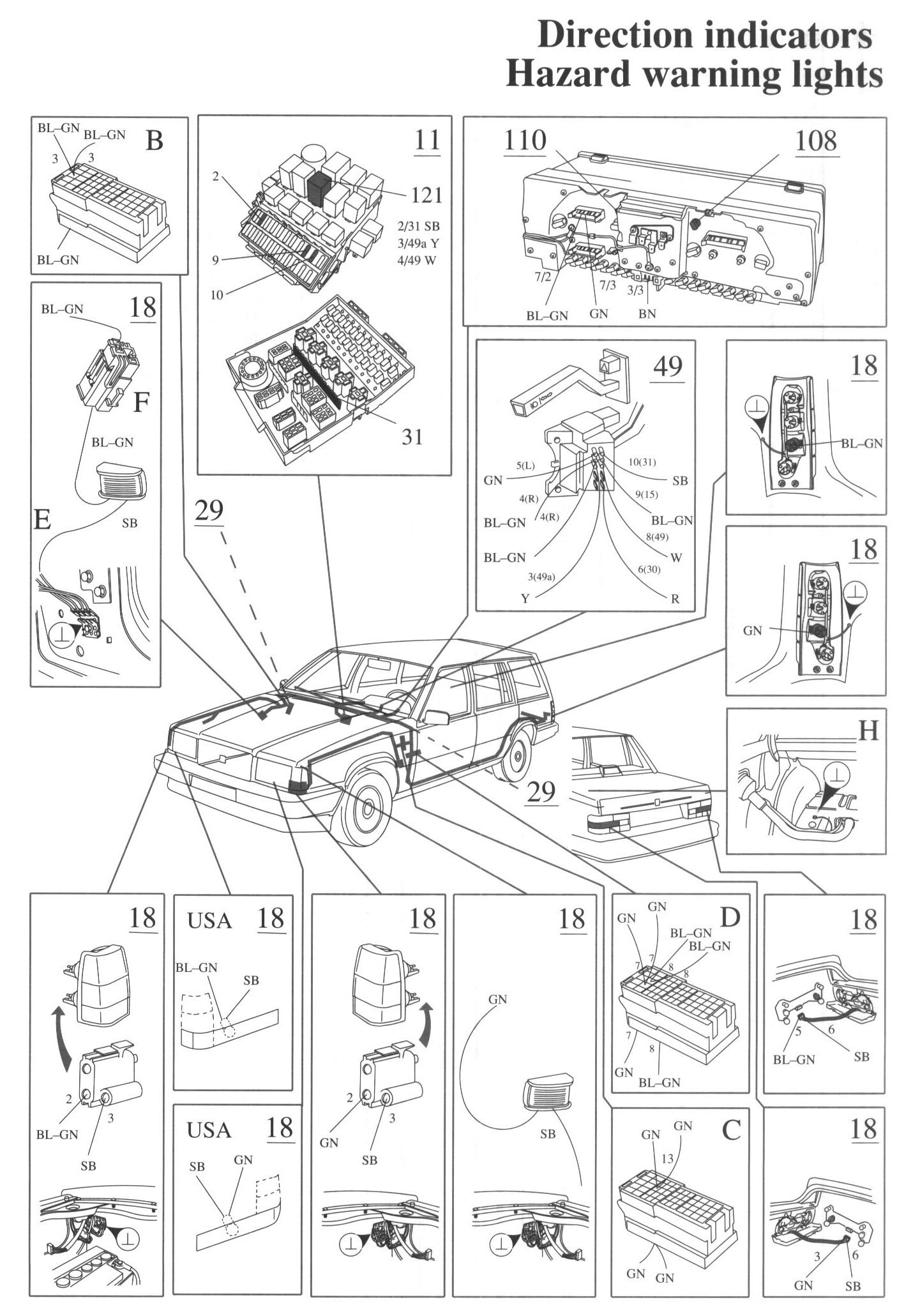

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusehox
18 Direction indicator
29 Positive terminal
31 Ground point in electrical distribution unit
49 Switch for direction indicators, hazard lights and high/low beam.

108 Left indicator lamp
110 Right indicator lamp
121 Flasher relay

B Connector, right A-post
C Connector, left A-post
D Connector, left A-post
E Ground, right A-post
F Connector, engine compartment left side
G Ground, engine compartment left side
H Ground, boot
