Regina (B230F)

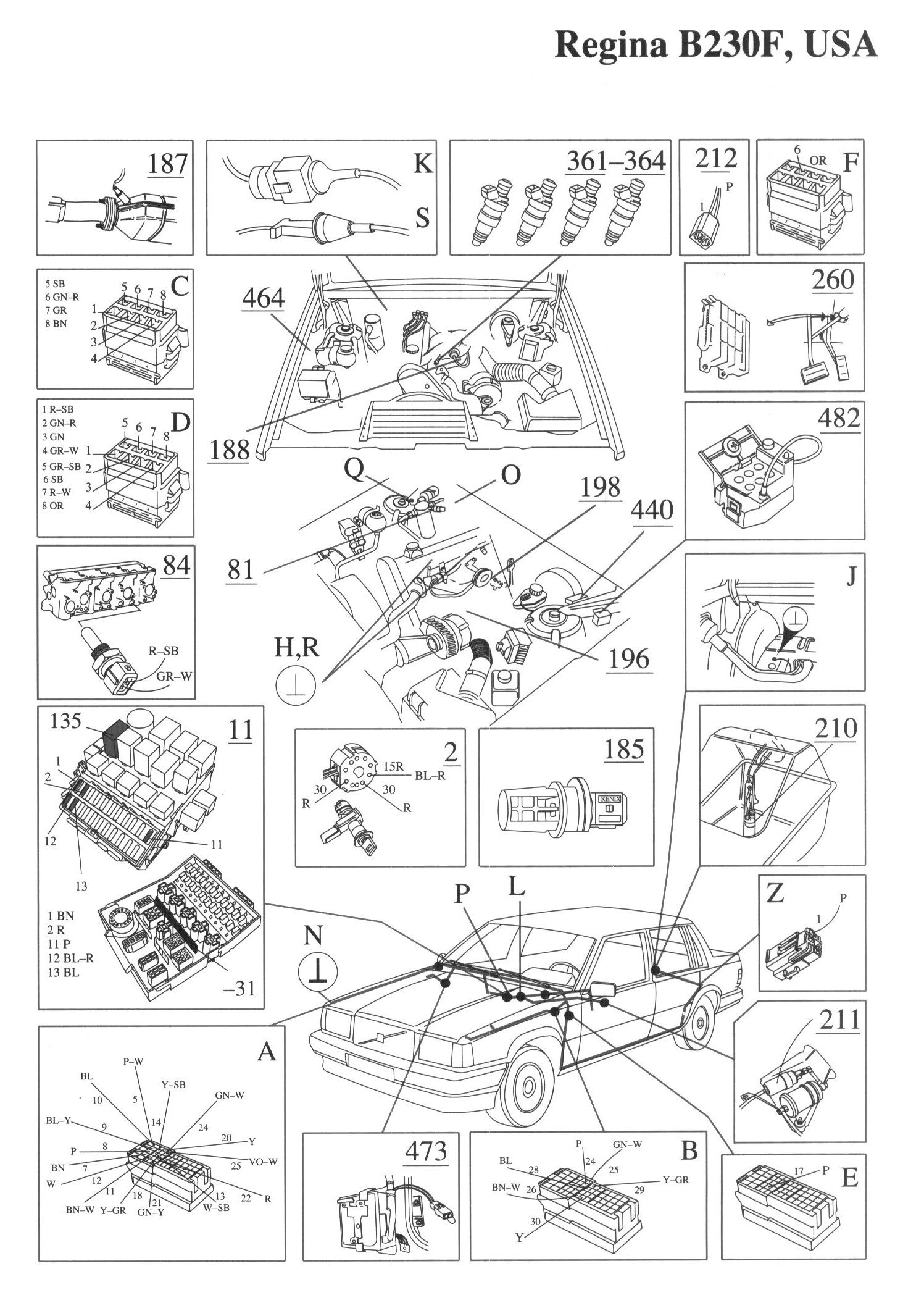

Component / Connector Views:

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
9 Starter motor

11 Fusebox
12/7 Connection, check engine lamp
12/8 Connection, shift indicator lamp
29 Positive terminal
31 Ground rail in electrical distribution unit
81 AC pressure sensor
84 Coolant temperature sensor
85 Speedometer

135 Relay, fuel injection
185 Air intake temperature sensor
187 Lambda sond
188 Cold start valve
196 Air control (idle) valve
198 Throttle switch
200 AC compressor
202 Climate control
210 Fuel pump
211 Fuel pump
212 Test socket
260 Control unit, ignition system
361-364 Injectors
420 Power stage Rex
440 Pressure sensor, inlet manifold
464 Relay, radio interference suppression
473 Control unit, Regina
482 Diagnostic socket
495 Connector, electrical distribution unit

A Connector, right A-post
B Connector, left A-post
C Connector, right suspension tower
D Connector, right suspension tower
E Connector, left A post
F Connector, left suspension tower
G Ground point, inlet manifold (signal ground)
J Ground point In boot
K Connector at bulkhead
L Connector, electrical distribution unit
M Ground point, right A-post
N Ground point, right front wing
O Connector at bulkhead
P Connector in electrical distribution unit
Q Connector, right suspension tower, 4-pole
R Ground point, inlet manifold (power ground)
S Connector at bulkhead, 1-pole
T 1-pole connector, left suspension tower
V Ground, left front wing
Z 4-pole connector, boot
