Rex I Ignition System (B 230 F)

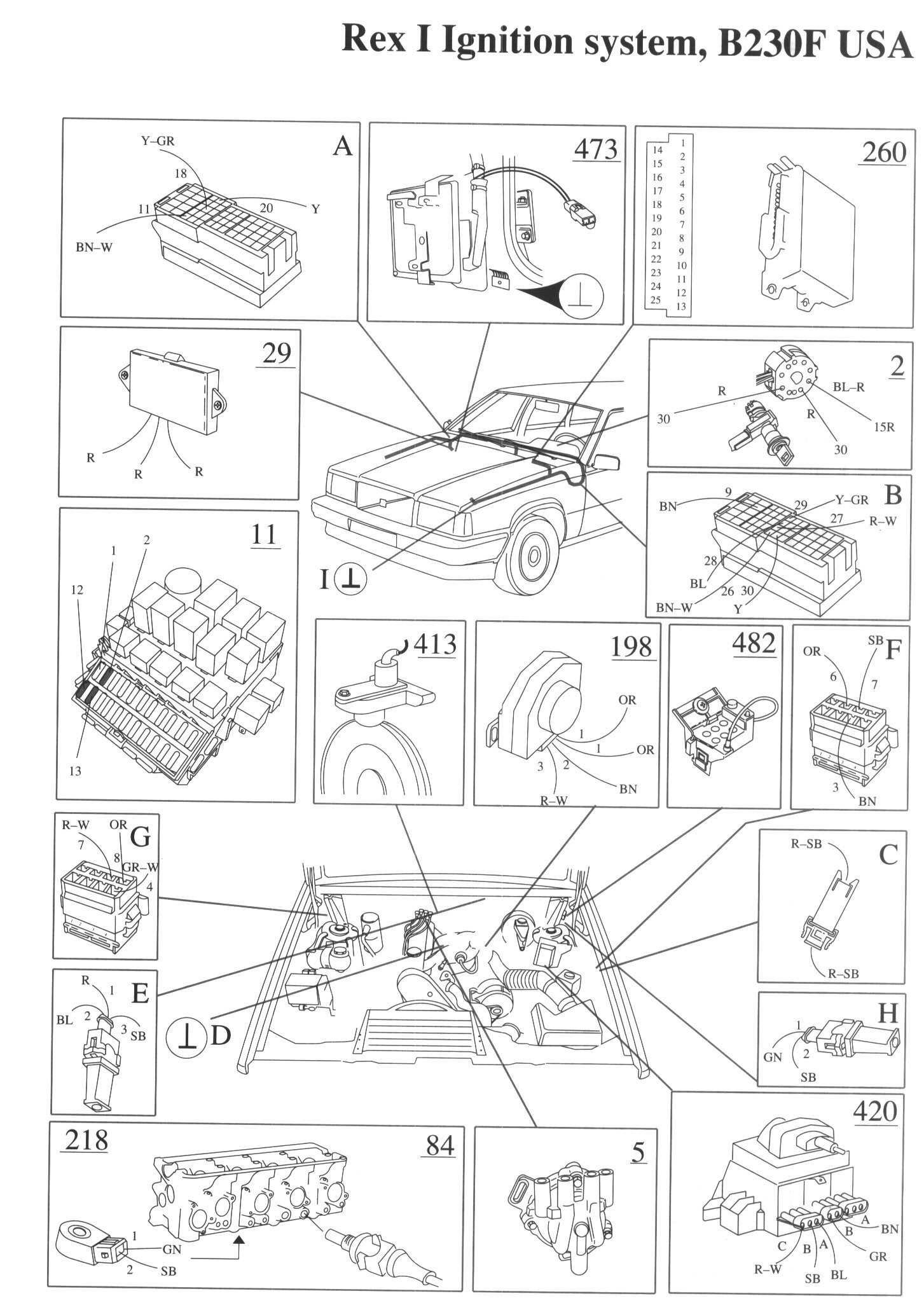

Component / Connector Views:

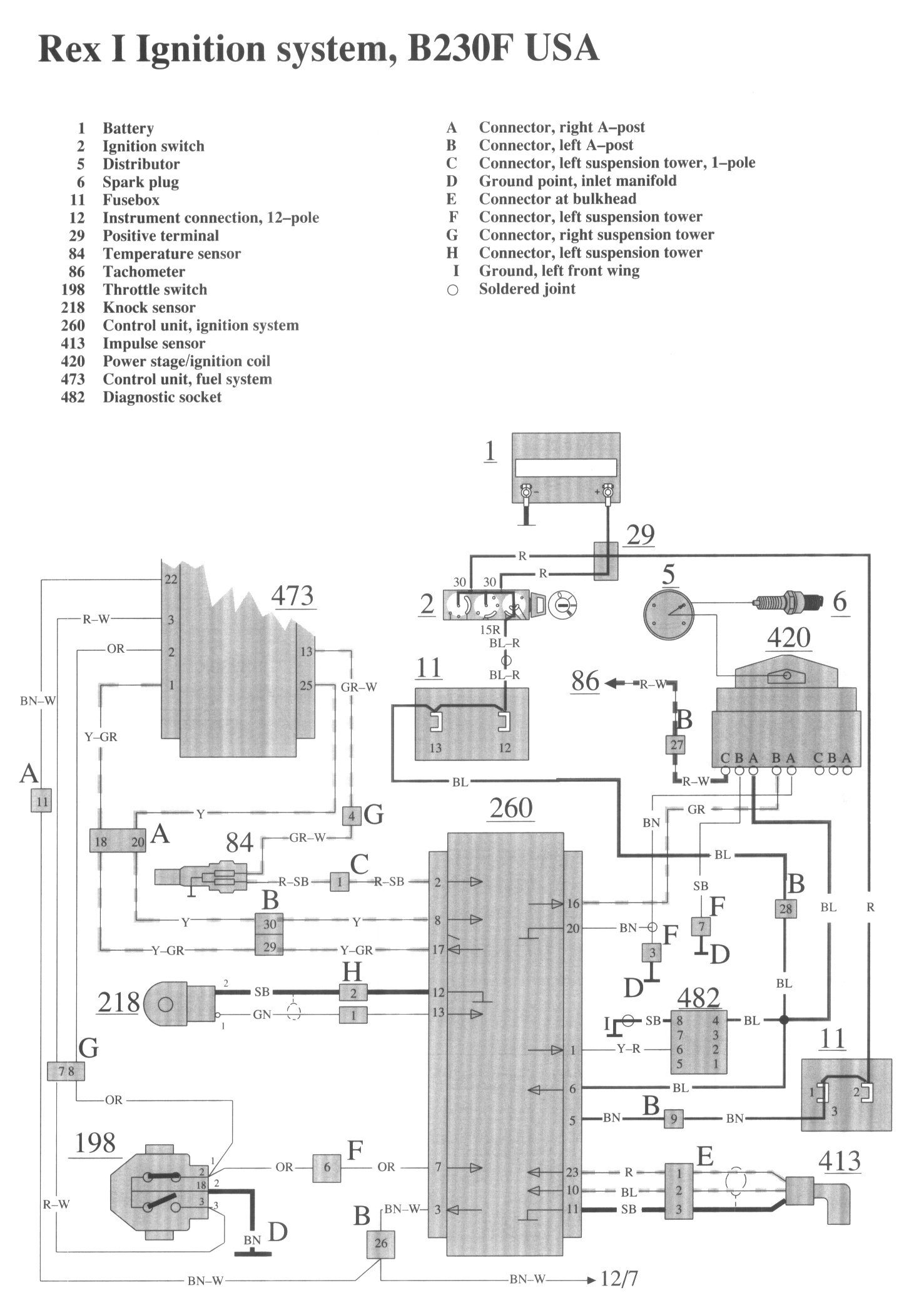

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
5 Distributor
6 Spark plug

11 Fusebox
12 Instrument connection, 1-pole
29 Positive terminal
84 Temperature sensor
86 Tachometer

198 Throttle switch
218 Knock sensor
260 Control unit, ignition system
413 Impulse sensor
420 Power stage/ignition coil
473 Control unit, fuel system
482 Diagnostic socket

A Connector, right A-post
B Connector, left A-post
C Connector, left suspension tower, 1-pole
D Ground point, Inlet manifold
E Connector at bulkhead
F Connector, left suspension tower
G Connector, right suspension tower
H Connector, left suspension tower
I Ground, left front wing
