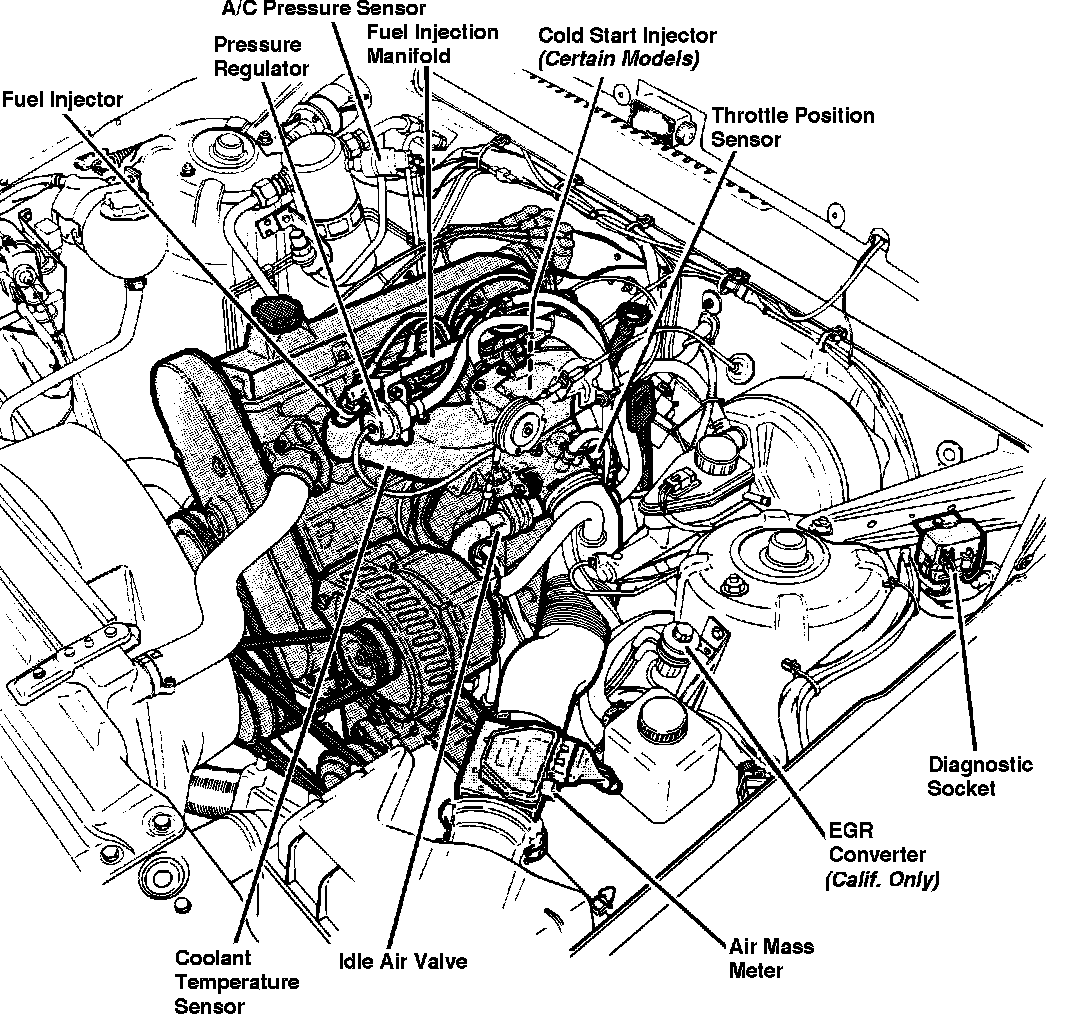

Under Hood Components (Bosch)

Underhood Components:

A/C PRESSURE SENSOR:
Located on the evaporator coil.

AIR MASS METER:
Located in the intake system in front driver side of engine compartment.

COLD START INJECTOR:
Centrally located in the intake manifold.

COOLANT TEMPERATURE SENSOR:
Located in the cylinder head at the left front of the engine.

EGR CONVERTER:
Located in the engine compartment in front of driver side strut tower.

FUEL INJECTORS:
Located in the intake manifold very near the cylinder head.

IDLE AIR VALVE:
Located below the throttle housing.

THROTTLE POSITION SENSOR:
Located on the throttle plate housing.
