Headlamp Wash/Wipe

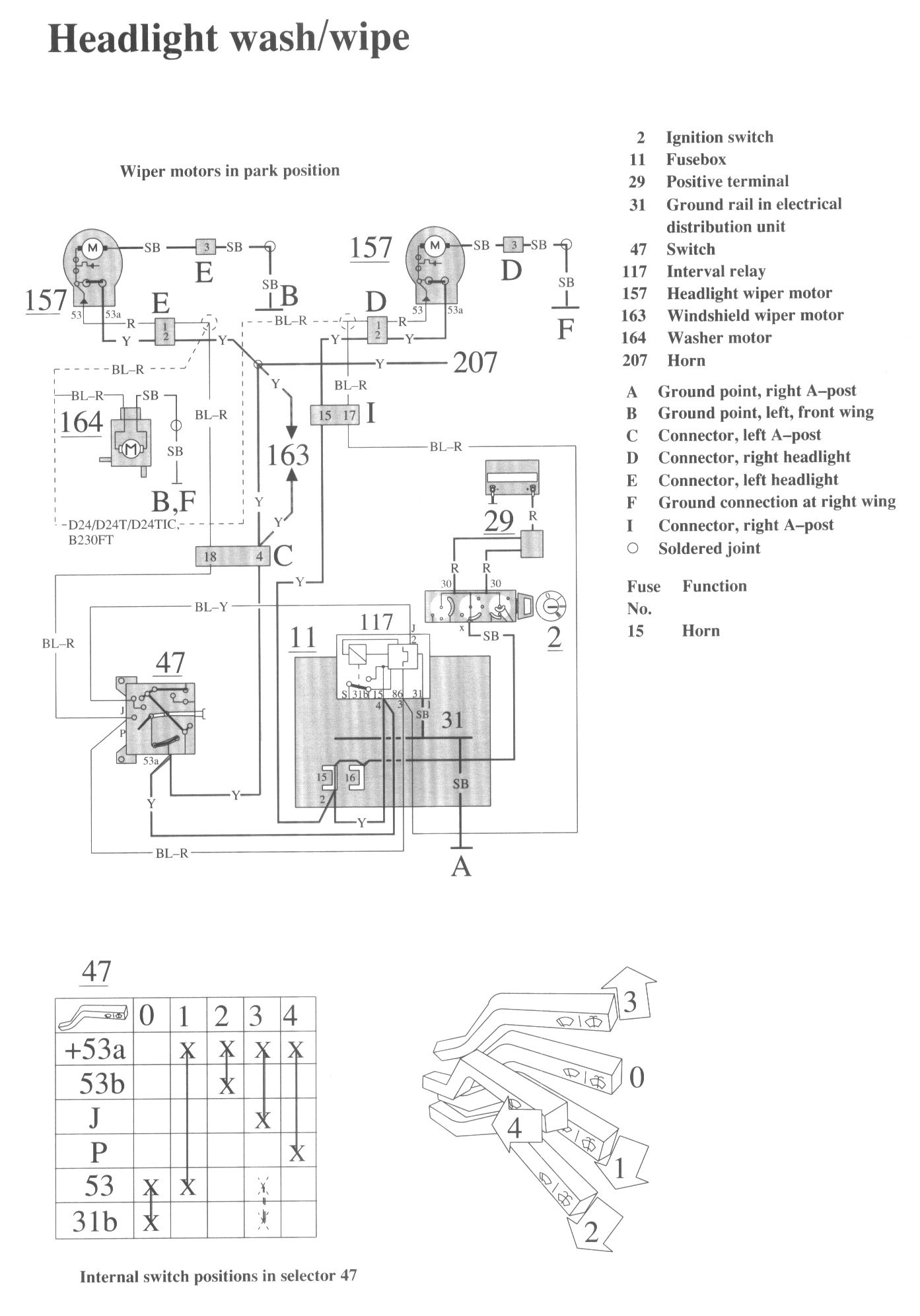

Wiring Diagrams:

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
47 Switch

117 Interval relay
157 Headlight wiper motor
163 Windshield wiper motor
164 Washer motor
207 Horn

A Ground point, right A-post
B Ground point, left, front wing
C Connector, left A-post
D Connector, right headlight
E Connector, left headlight
F Ground connection at right wing
I Connector, right A-post
