AC Full Load Cut-Out System, (B234F, B204E)

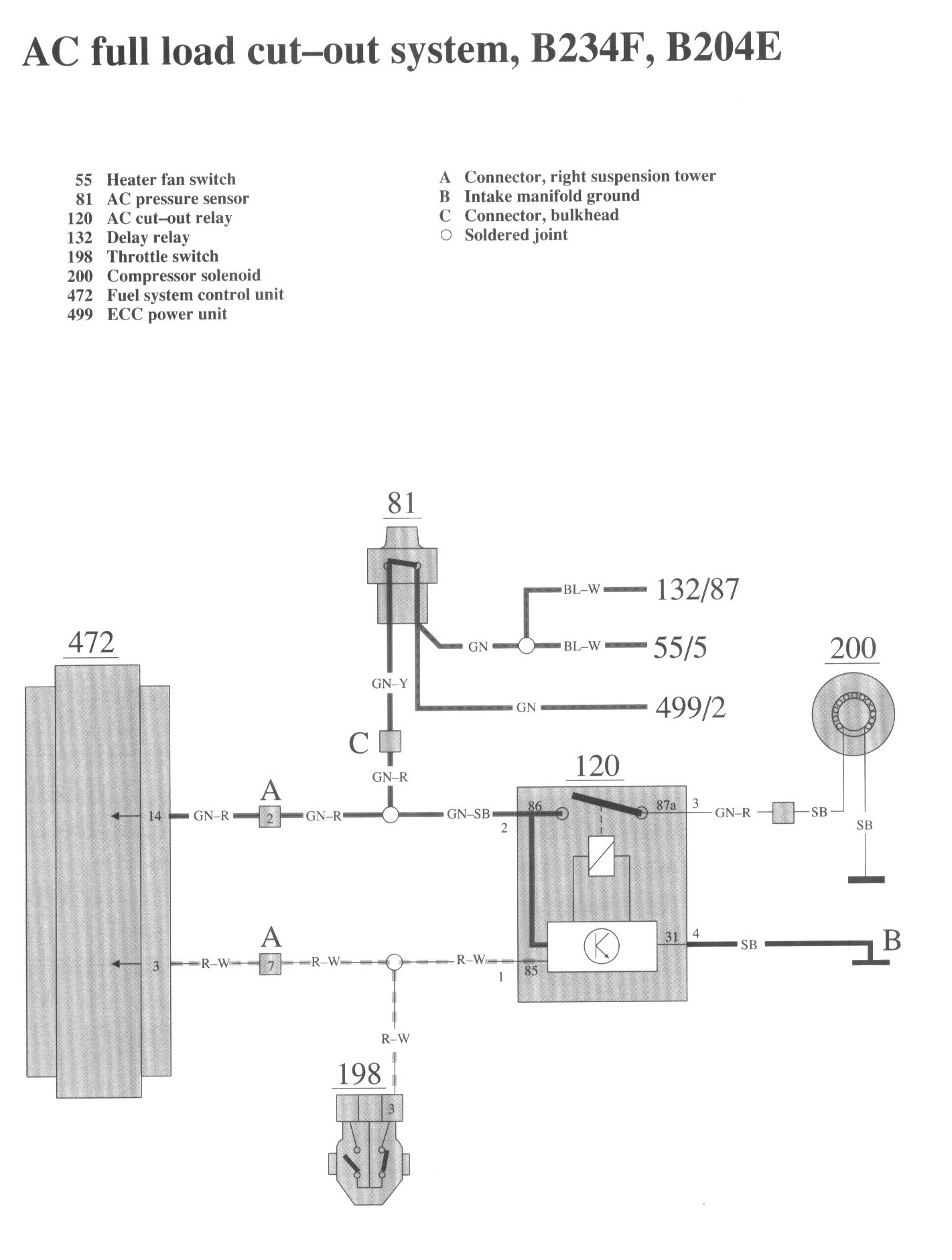

Wiring Diagrams:

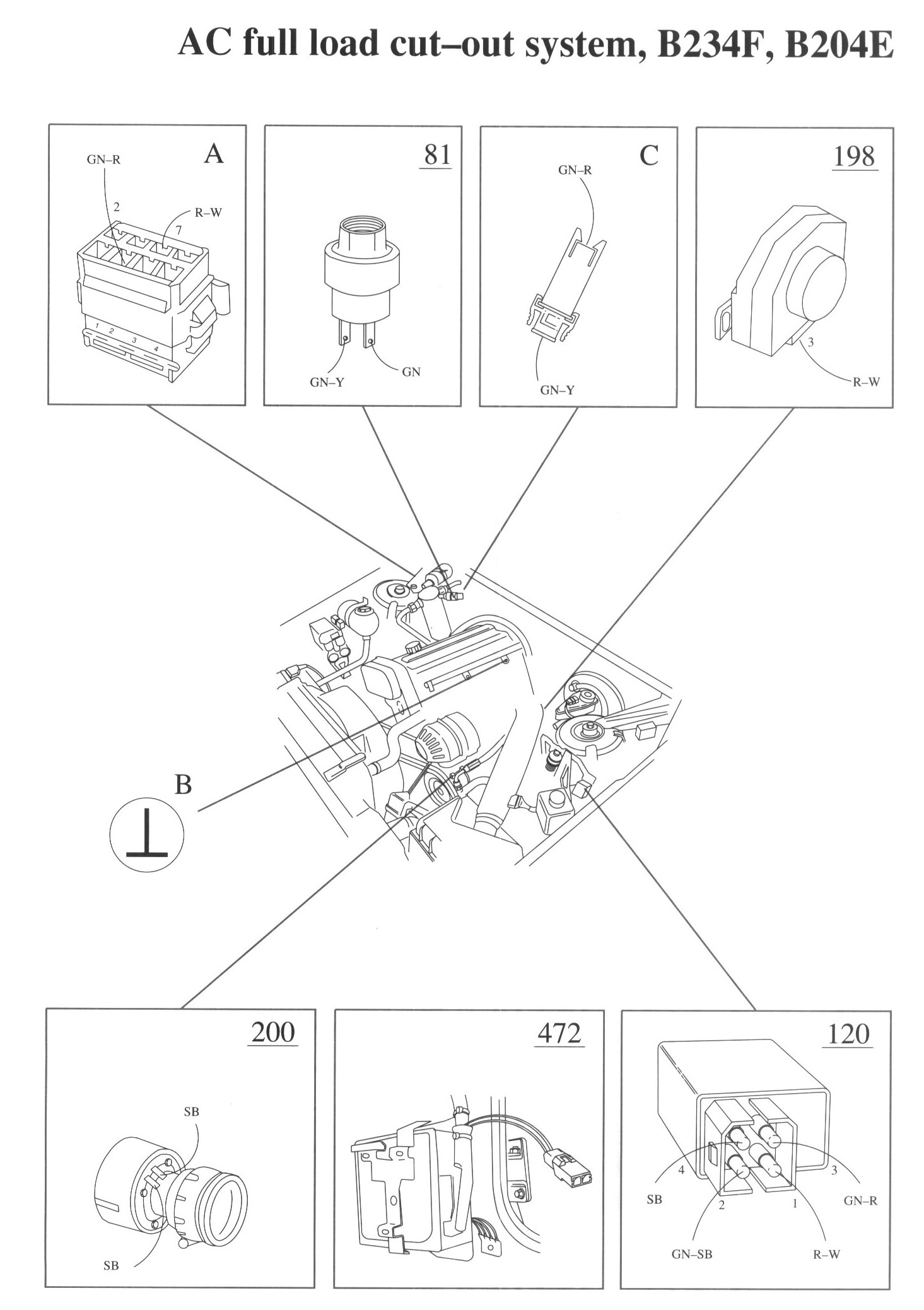

Component / Connector Views:

LEGEND
55 Heater fan switch
81 AC pressure sensor

120 AC cut-out relay
132 Delay relay
198 Throttle switch
200 Compressor solenoid
472 Fuel system control unit
499 ECC power unit
