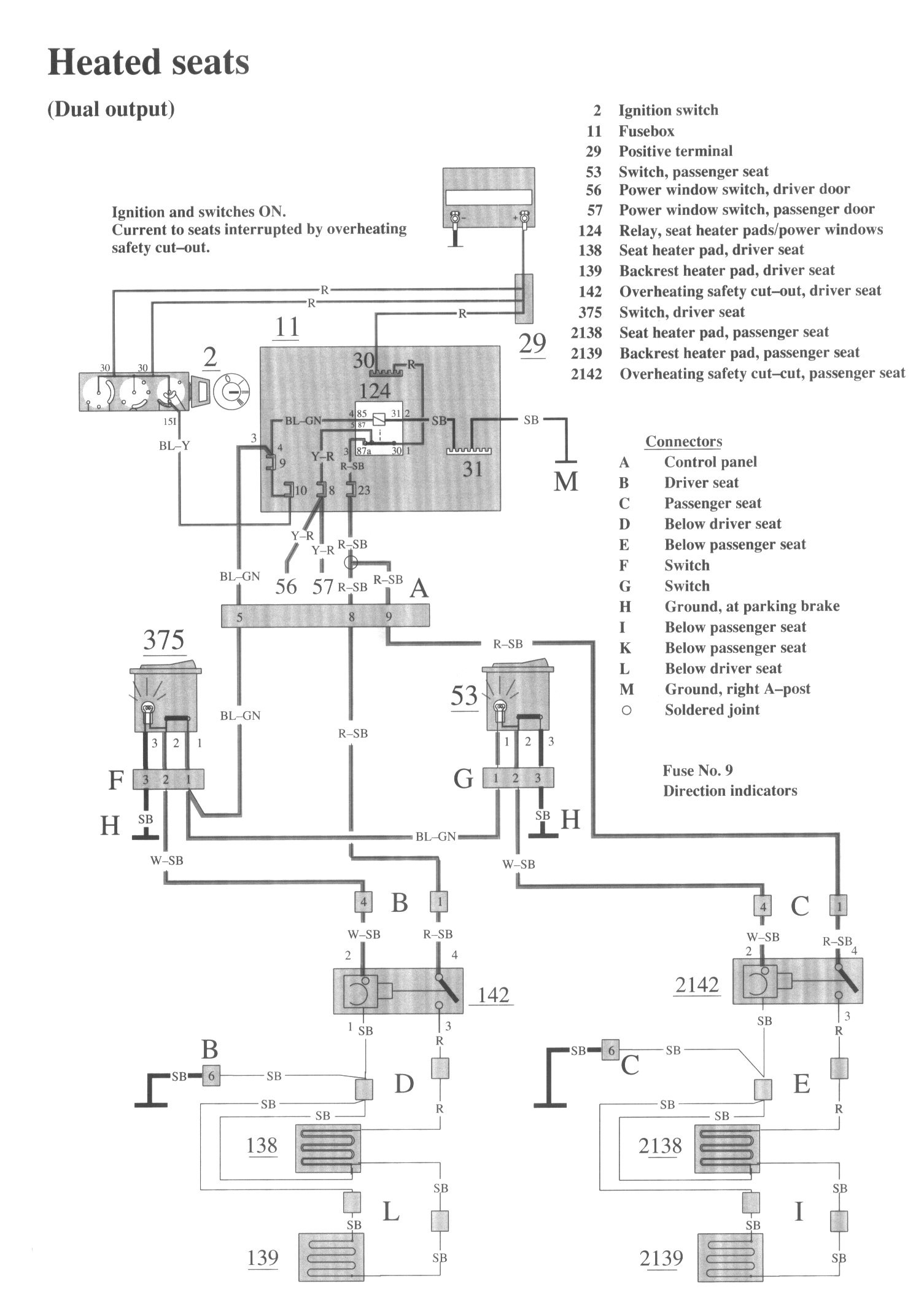

Heated Seats (Dual Output)

Component / Connector Views:

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
53 Switch, passenger seat
56 Power window switch, driver door
57 Power window switch, passenger door

124 Relay, seat heater pads/power windows
138 Seat heater pad, driver seat
139 Backrest heater pad, driver seat
142 Overheating safety cut-out, driver seat
375 Switch, driver sent

2138 Seat heater pad, passenger seat
2139 Backrest heater pad, passenger seat
2142 Overheating safety cut-out, passenger seat
