Home >> Volvo >> 1990 >> 740 L4-2320cc 2.3L SOHC Turbo VIN 87 B230FT >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Compartment at Left Wheelhouse Strut Tower

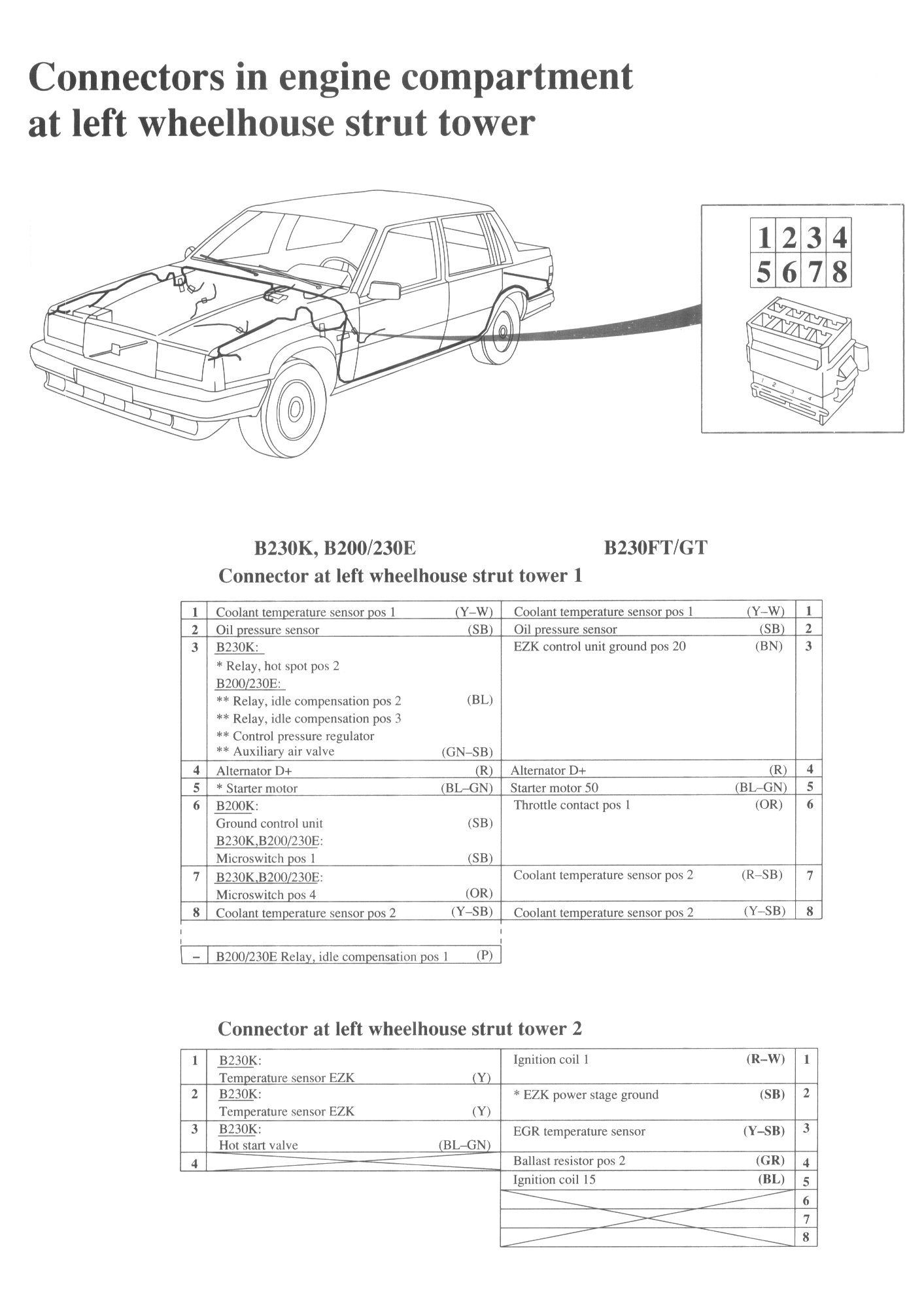

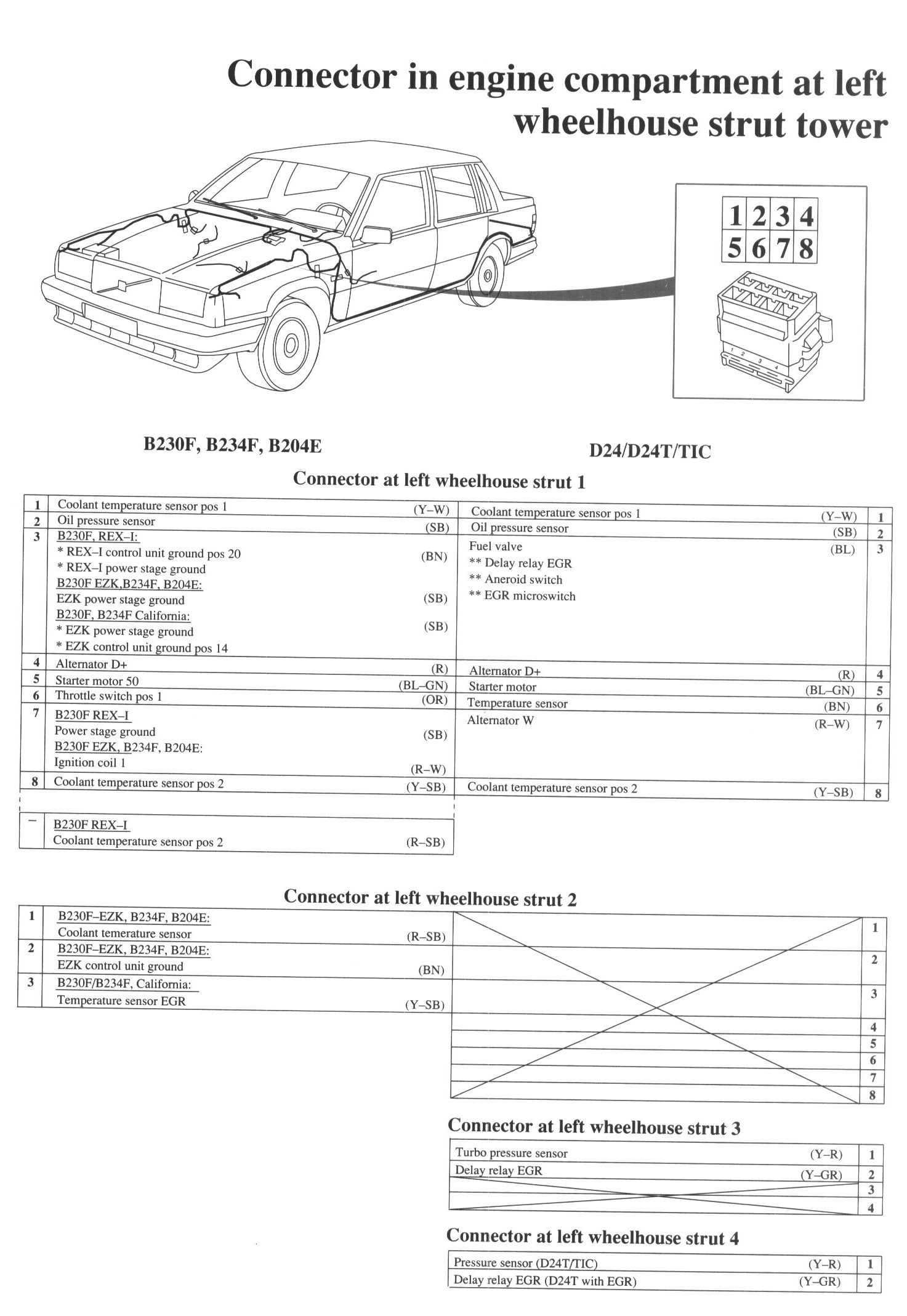

Engine Compartment at Left Wheelhouse Strut Tower
