Overdrive Assembly, A/T

Wiring Diagrams:

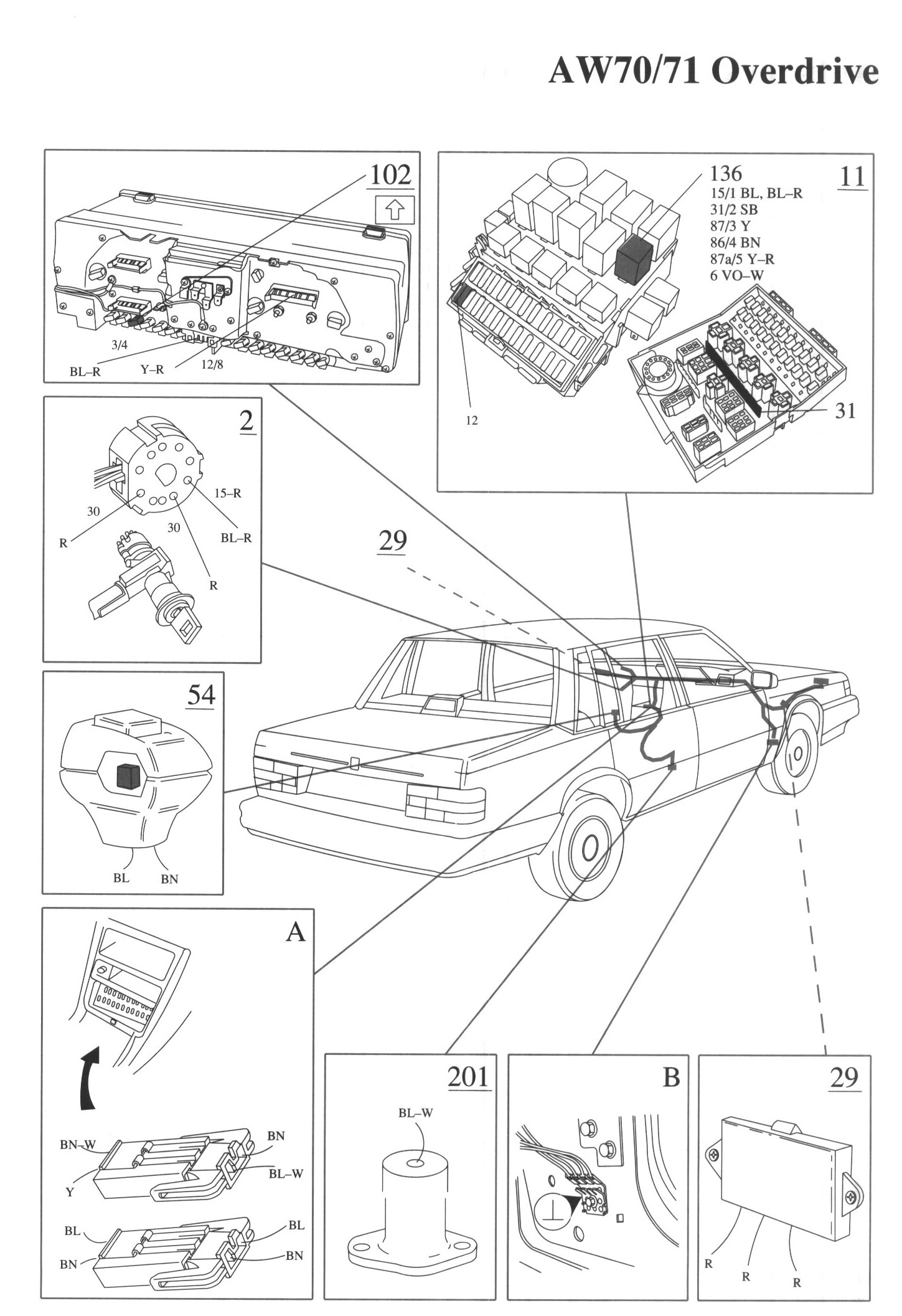

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
54 Switch, overdrive
85 Speedometer

102 Indicator lamp, overdrive Aw70/71
136 Relay, overdrive
201 Solenoid
251 Downshift inhibitor
