Overdrive Assembly, M/T

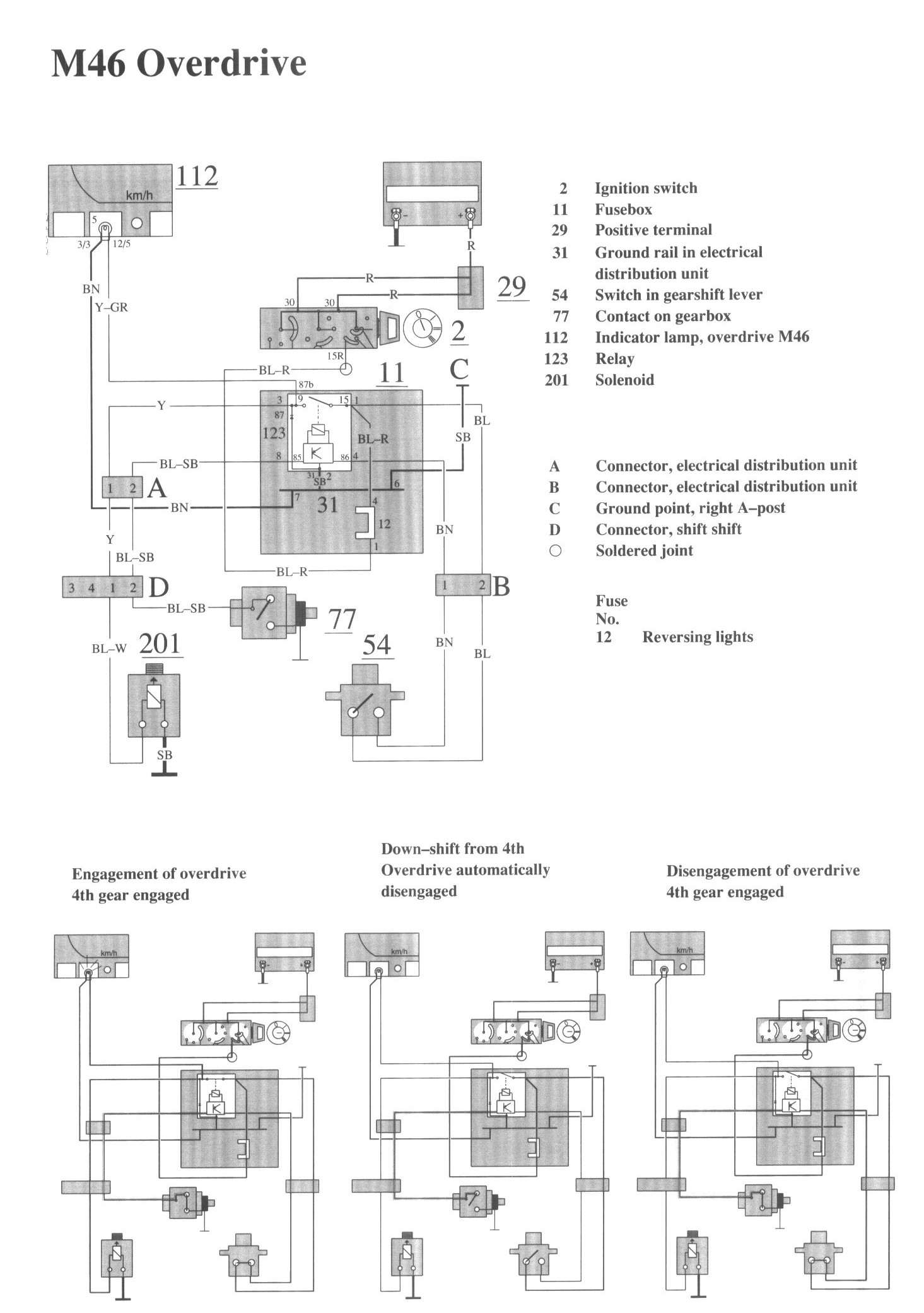

Wiring Diagrams:

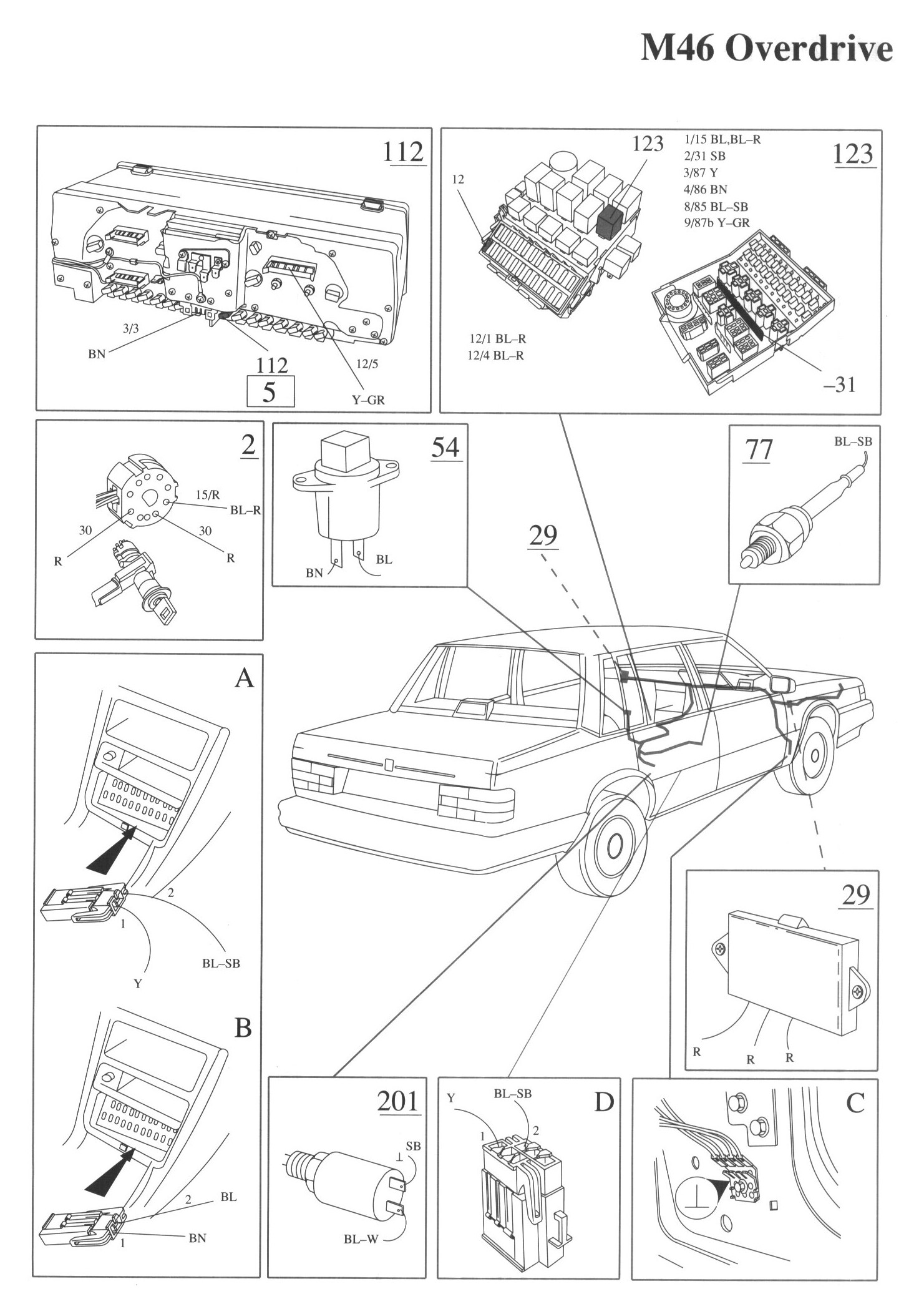

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground rail in electrical distribution unit
54 Switch in gearshift lever
77 Contact on gearbox

112 Indicator lamp, overdrive M46
123 Relay
201 Solenoid
