System Diagram

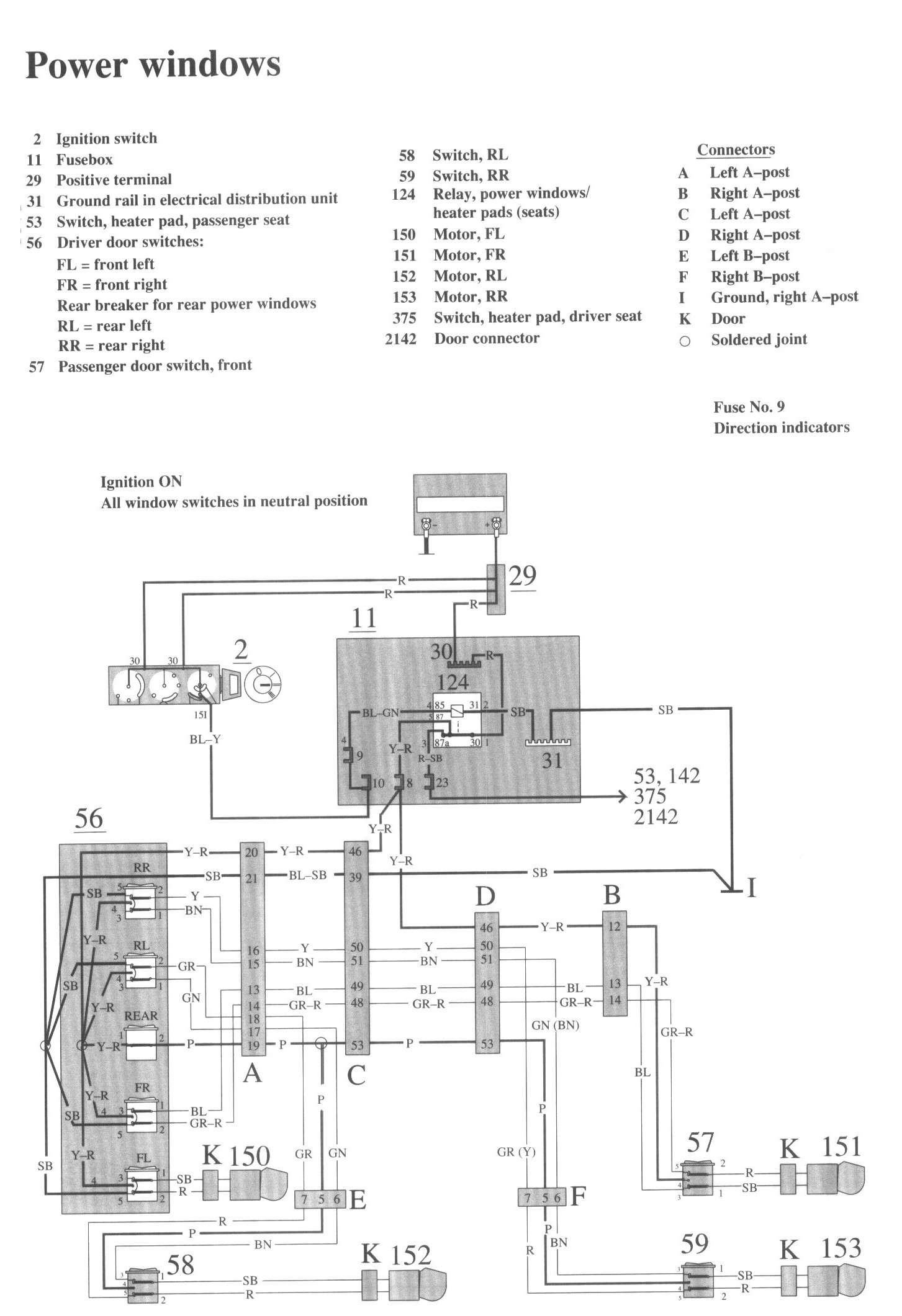

Wiring Diagrams:




Component / Connector Views:




LEGEND
2 Ignition switch

11 Fusebox
29 Positive terininal
31 Ground rail in electrical distribution unit
53 Switch, heater pad, passenger scat
56 Driver door switches:
FL = front left
FR = front right
Rear breaker for rear power windows
RL = rear left
RR = rear right
57 Passenger door switch, front
58 Switch, RL
59 Switch, RR

124
Relay, power windows/heater pads (seats)
150 Motor, FL
151 Motor, FR
152 Motor, RL
153 Motor, RR
375 Switch, heater pad, driver seat

2142 Door connector
