Fog Lights, Front (USA/CAN)

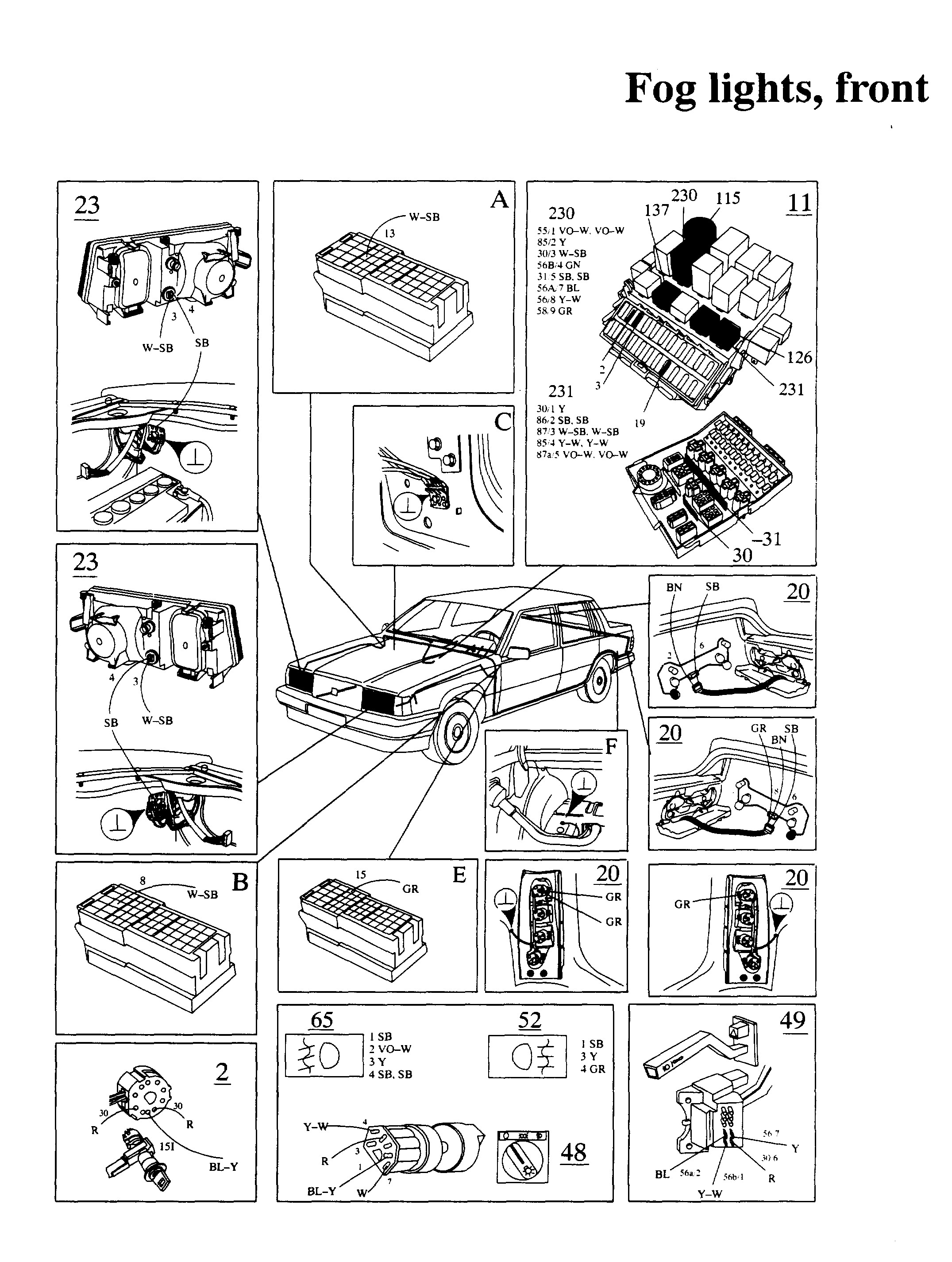

Component / Connector Views:

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
13 High beam bulb
14 Low beam bulb
20 Rear foglight bulb
23 Foglight bulb
29 Positive terminal
30 30-terminal in electrical distribution unit
31 Ground rail in electrical distribution unit
48 Main light switch
49 High/low beam switch
52 Rear foglight switch
65 Fog light switch

115 Bulb failure warning sensor
126 Relay, supplementary high beam
137 Relay, headlights
230 Relay, front fog lights
231 Relay, rear fog lights

A Connector, right A-post
B Connector, left A-post
C Ground point, right A-post
D 6-pole connector, electrical distribution unit
E Connector, left A-post
