Electrical Diagrams

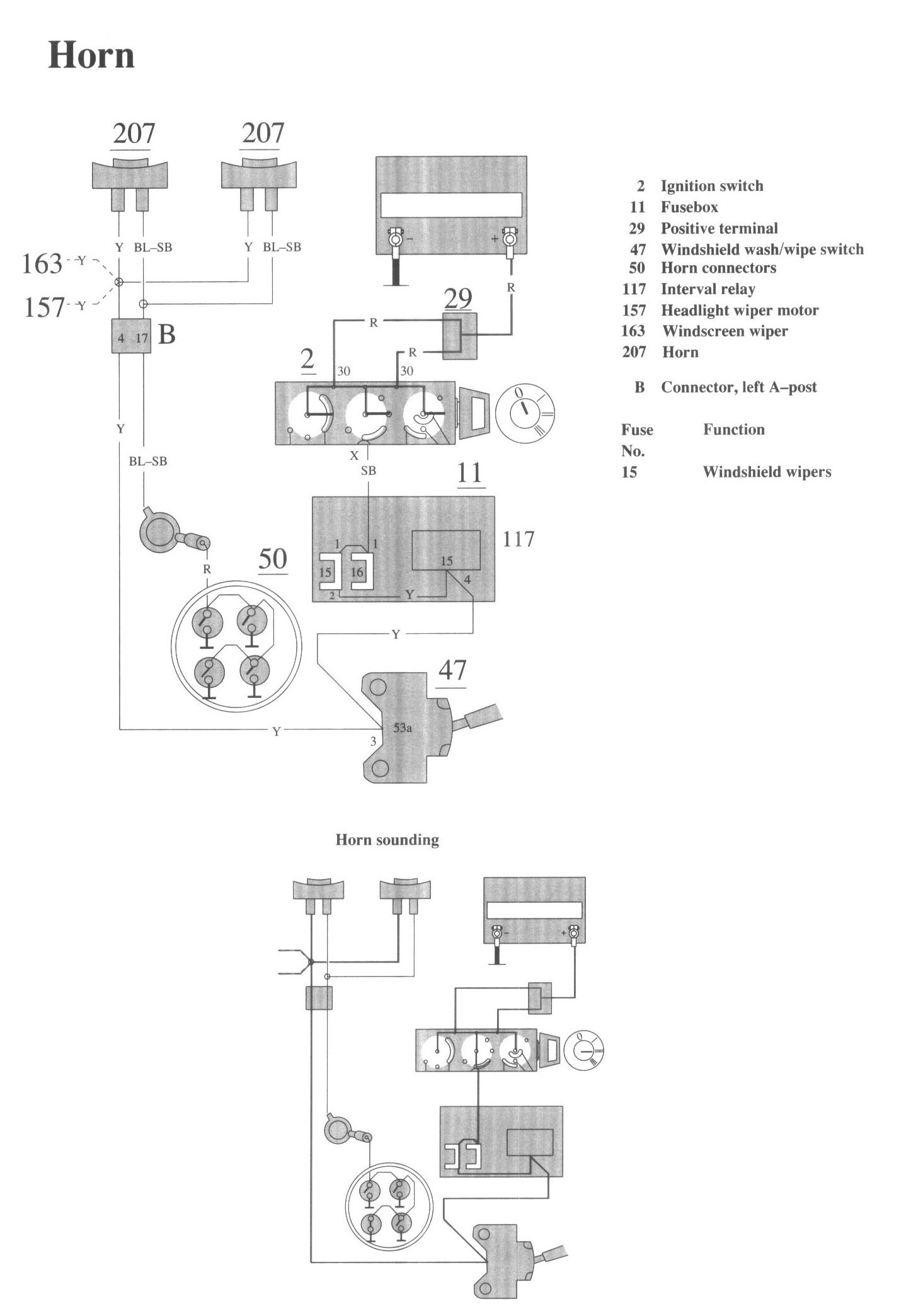

Wiring Diagrams:

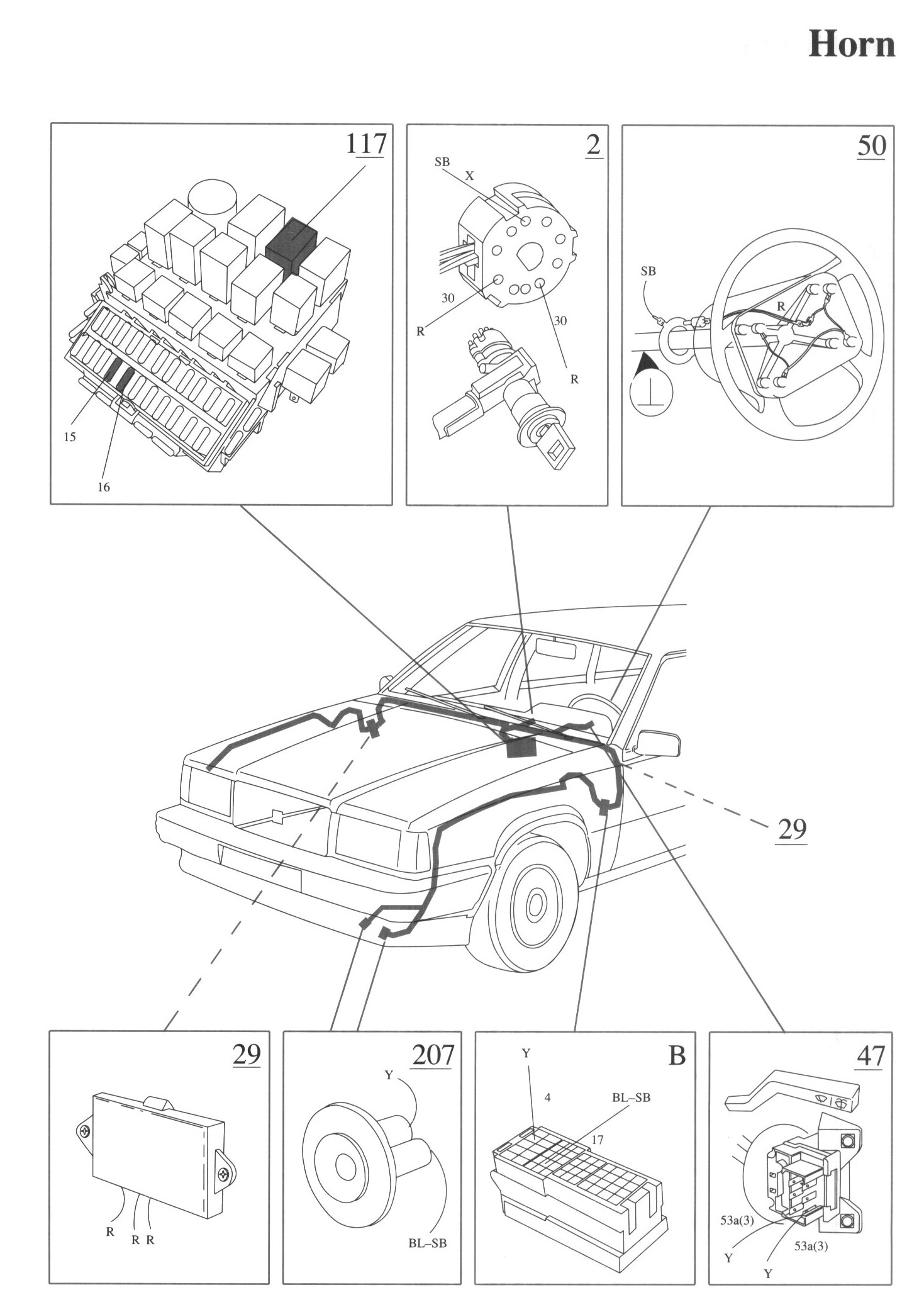

Component / Connector Views:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
47 Windshield wash/wipe switch
50 Horn connectors

117 Interval relay
157 Headlight wiper motor
163 Windscreen wiper
207 Horn
