Heated Driver/Passenger Seats

Component / Connector Views:

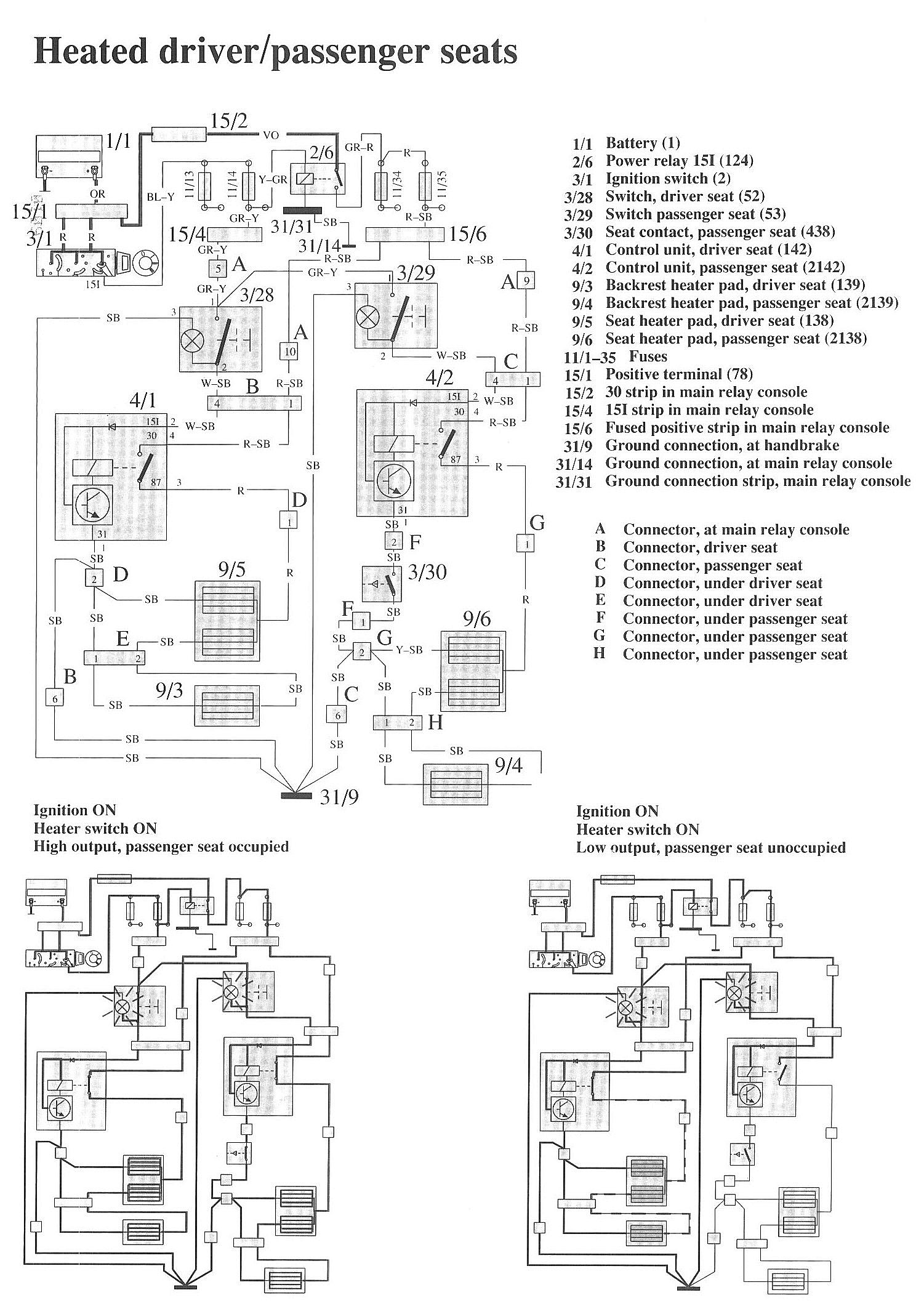

Wiring Diagrams:

LEGEND
1/1 Battery
2/6 Power relay 151
3/1 Ignition switch
3/28 Switch, driver seat
3/29 Switch passenger seat
3/30 Seat contact, passenger seat
4/1 Control unit, driver seat
4/2 Control unit, passenger seat
9/3 Backrest heater pad, driver seat
9/4 Backrest heater pad, passenger seat
9/5 Seat heater pad, driver seat
9/6 Seat heater pad, passenger seat
11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
15/4 151 strip in main relay console
15/6 Fused positive strip in main relay console
31/9 Ground connection, at handbrake
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, at main relay console
B Connector, driver seat
C Connector, passenger seat
D Connector, under driver seat
F Connector, under driver seat
F Connector, under passenger seat
G Connector, under passenger seat
H Connector, under passenger seat
