System Diagram

Wiring Diagrams:

Component / Connector Views:

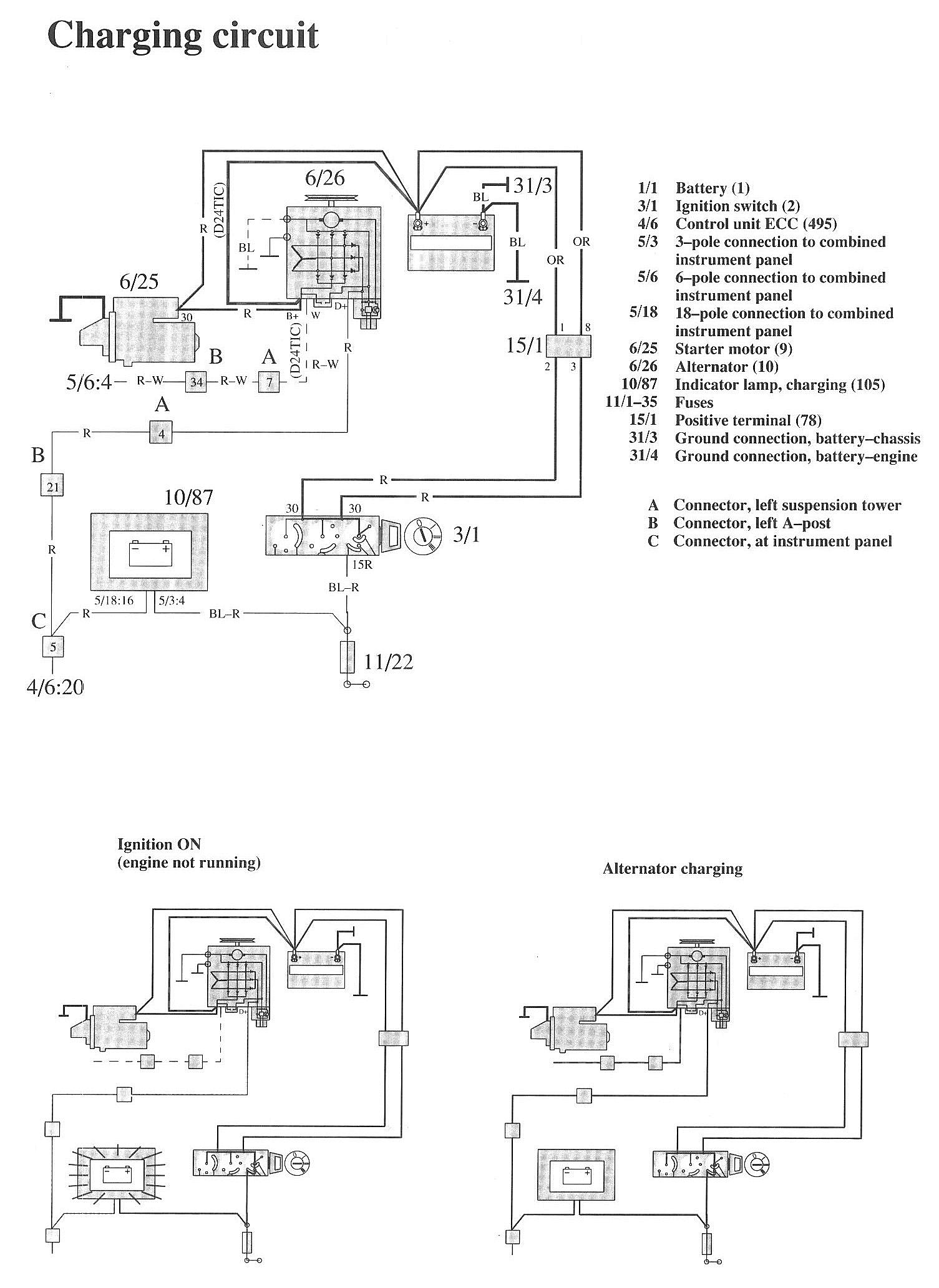

LEGEND
1/1 Battery
3/1 Ignition switch
4/6 Control unit ECC
5/3 3-pole connection to combined instrument panel
5/6 6-pole connection to combined instrument panel
5/18 18-pole connection to combined instrument panel
6/25 Starter motor
6/26 Alternator
10/87 Indicator lamp, charging
11/1-35 Fuses
15/1 Positive terminal
31/3 Ground connection, battery-chassis
31/4 Ground connection, battery-engine

A Connector, left suspension tower
B Connector, left A-post
C Connector, at instrument panel
