System Diagram

Wiring Diagrams:

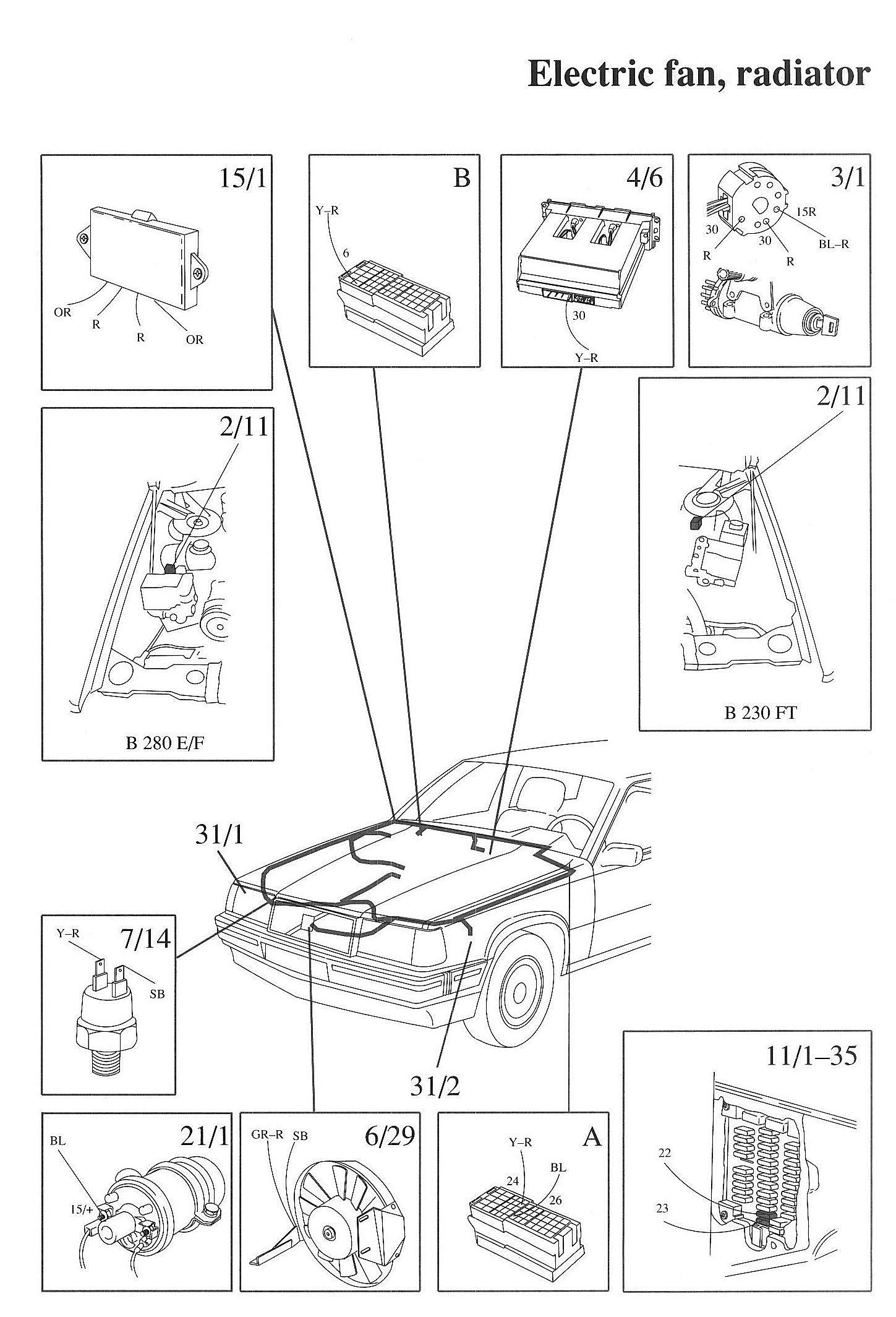

Component / Connector Views:

LEGEND
1/1 Battery
2/11 Relay, electric fan, radiator
3/1 Ignition switch
4/6 Control unit ECC
6/29 Electric fan, radiator
7/14 Thermostat, electric fan, radiator

15/1 Positive terminal
31/1 Ground connection, right wing
31/2 Ground connection, left wing

A Connector, left A-post
B Connector, right suspension tower
