AW71 Overdrive With Kick-Down Inhibitor

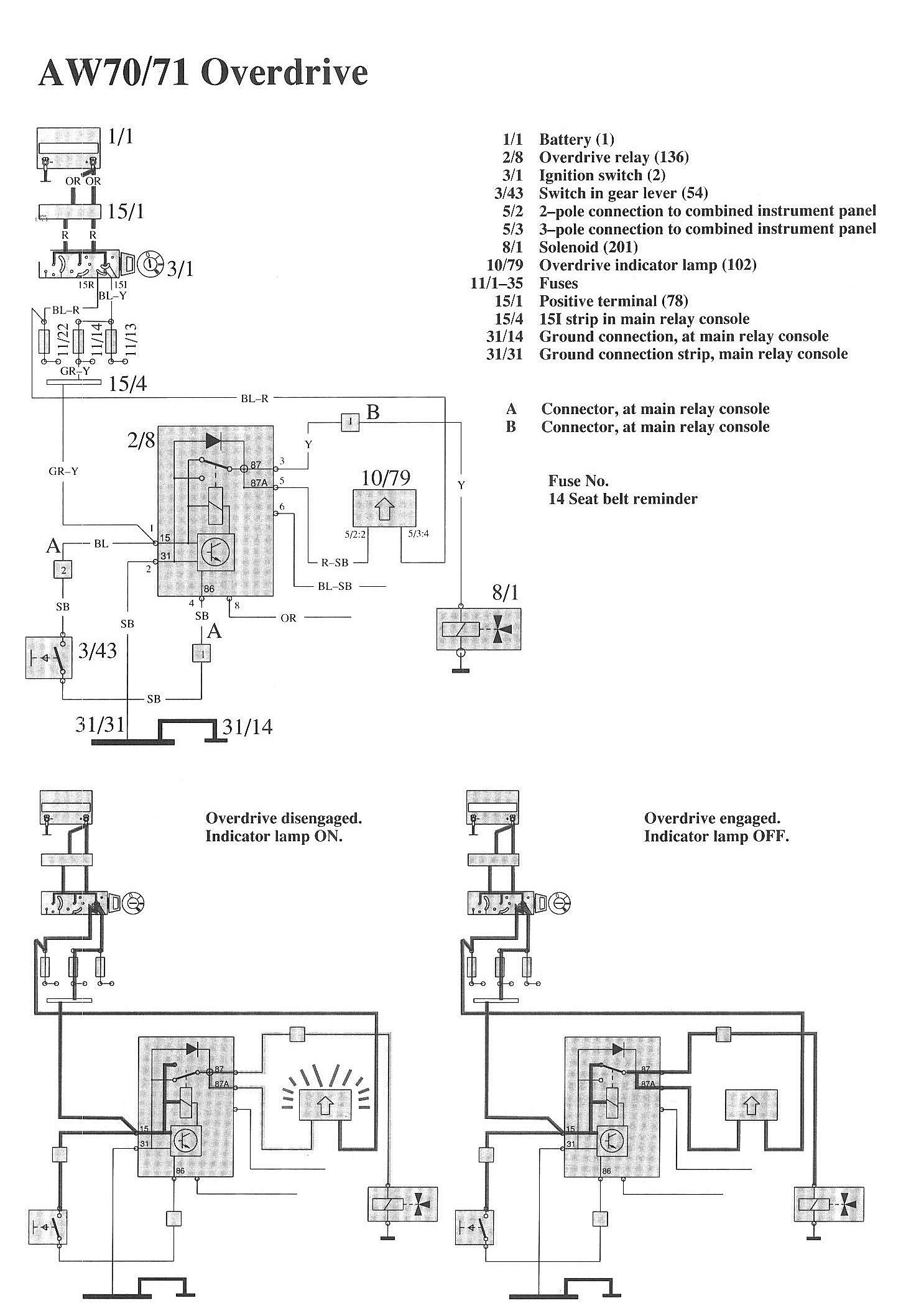

Wiring Diagrams:

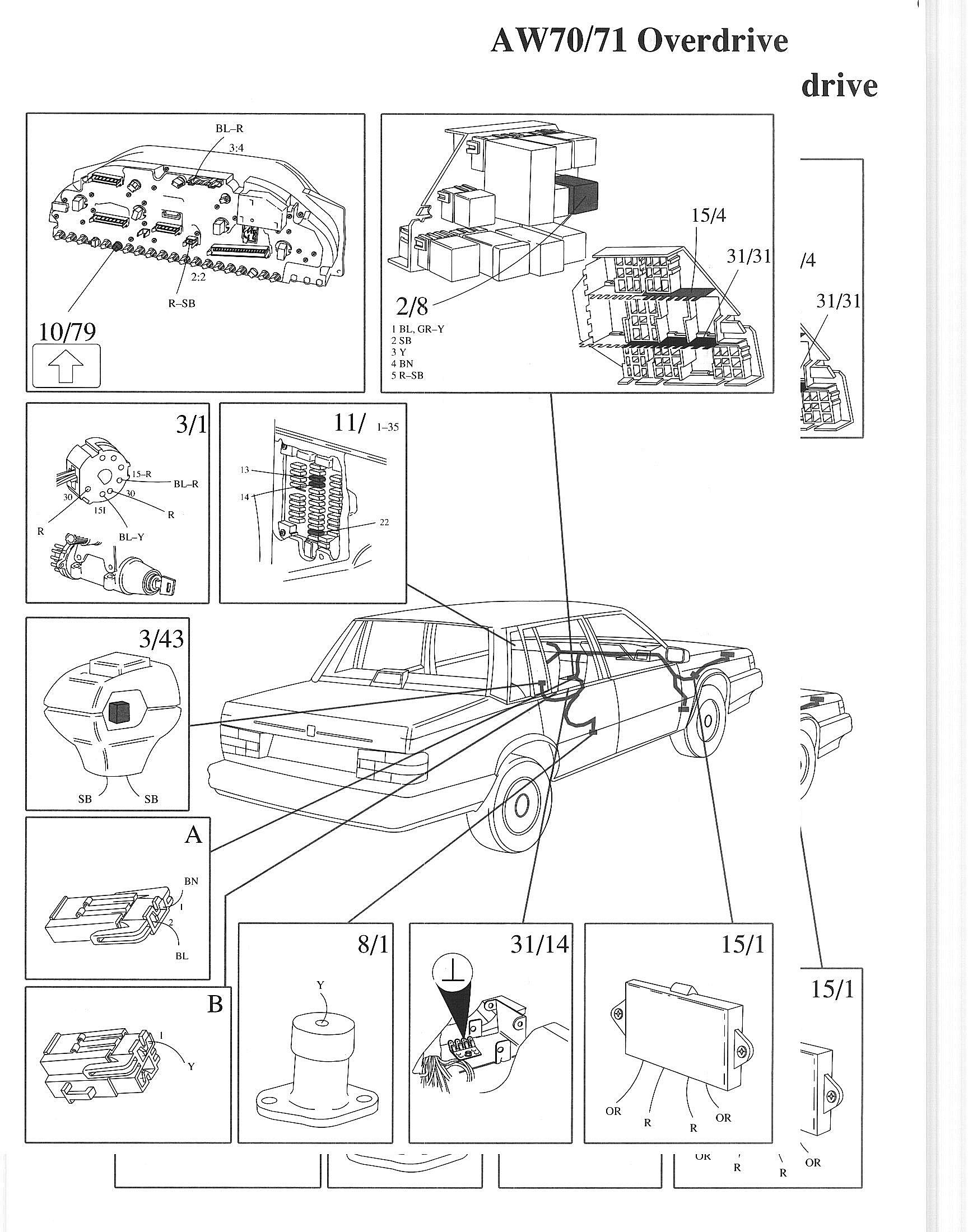

Component / Connector Views:

LEGEND
1/1 Battery
2/8 Overdrive relay
3/1 Ignition switch
3/42 Kick-down switch
3/43 Switch in gear lever
5/2 2-pole connection to combined instrument panel
5/3 3-pole connection to combined instrument panel
8/1 Solenoid
10/79 Overdrive indicator lamp
11/1-35 Fuses
15/1 Positive terminal
15/4 151 strip in main relay console
19/3 Speedometer
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, at main relay console
B Connector, at main relay console
C Connector, at main relay console
D Connector, at main relay console
F Connector, automatic gearbox, 2-pole
Fuse No.14 Fasten seat belt reminder
