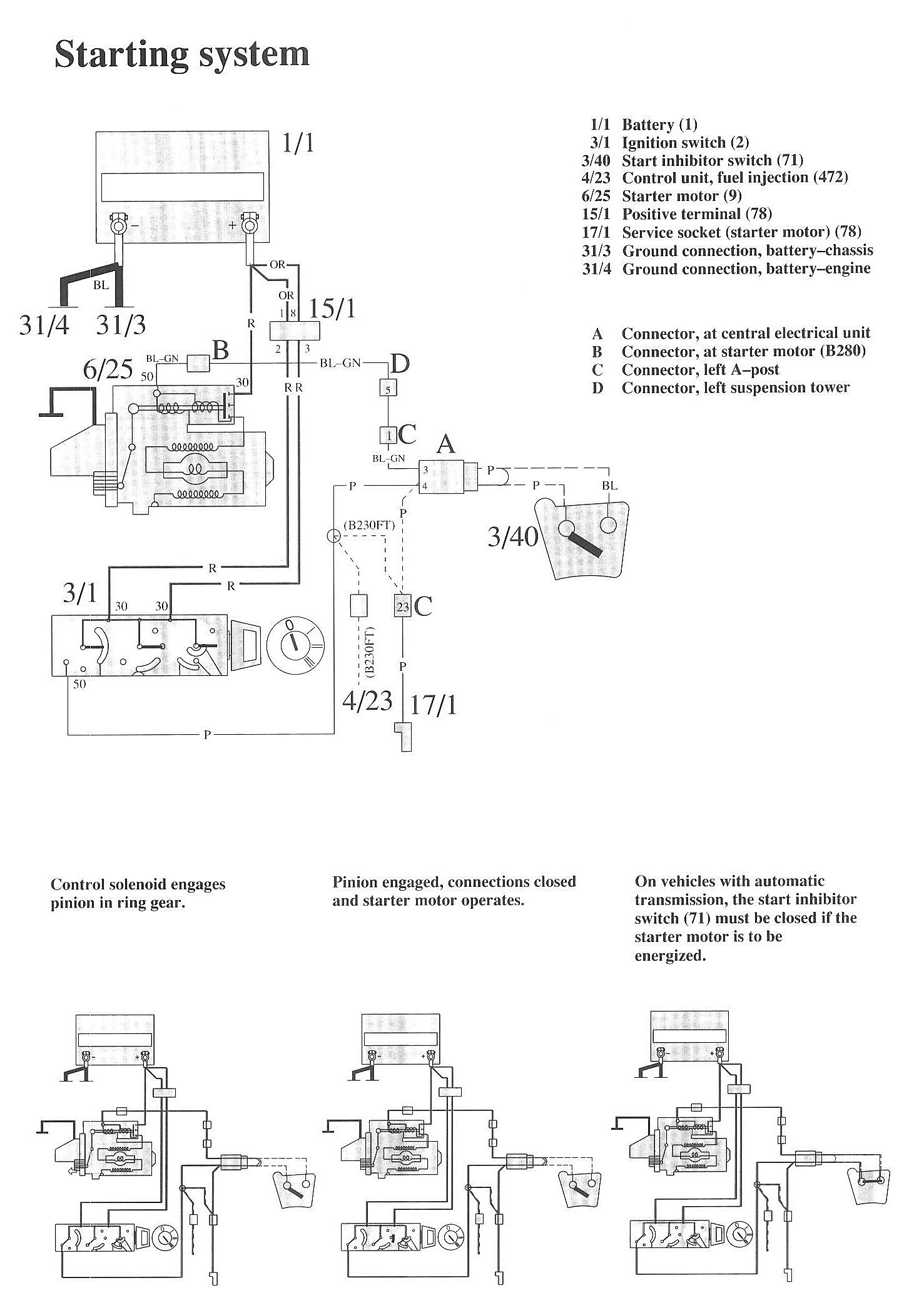

System Diagram

Wiring Diagrams:

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/40 Start inhibitor switch
4/23 Control unit, fuel injection
6/25 Starter motor
15/1 Positive terminal
17/1 Service socket (starter motor)
31/3 Ground connection, battery-chassis
31/4 Ground connection, battery-engine

A Connector, at central electrical unit
B Connector, at starter motor (B280)
C Connector, left A-post
D Connector, left suspension tower
