Home >> Volvo >> 1990 >> 760 L4-2320cc 2.3L SOHC Turbo VIN 87 B230FT >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vacuum Control Solenoid Valve, M/T

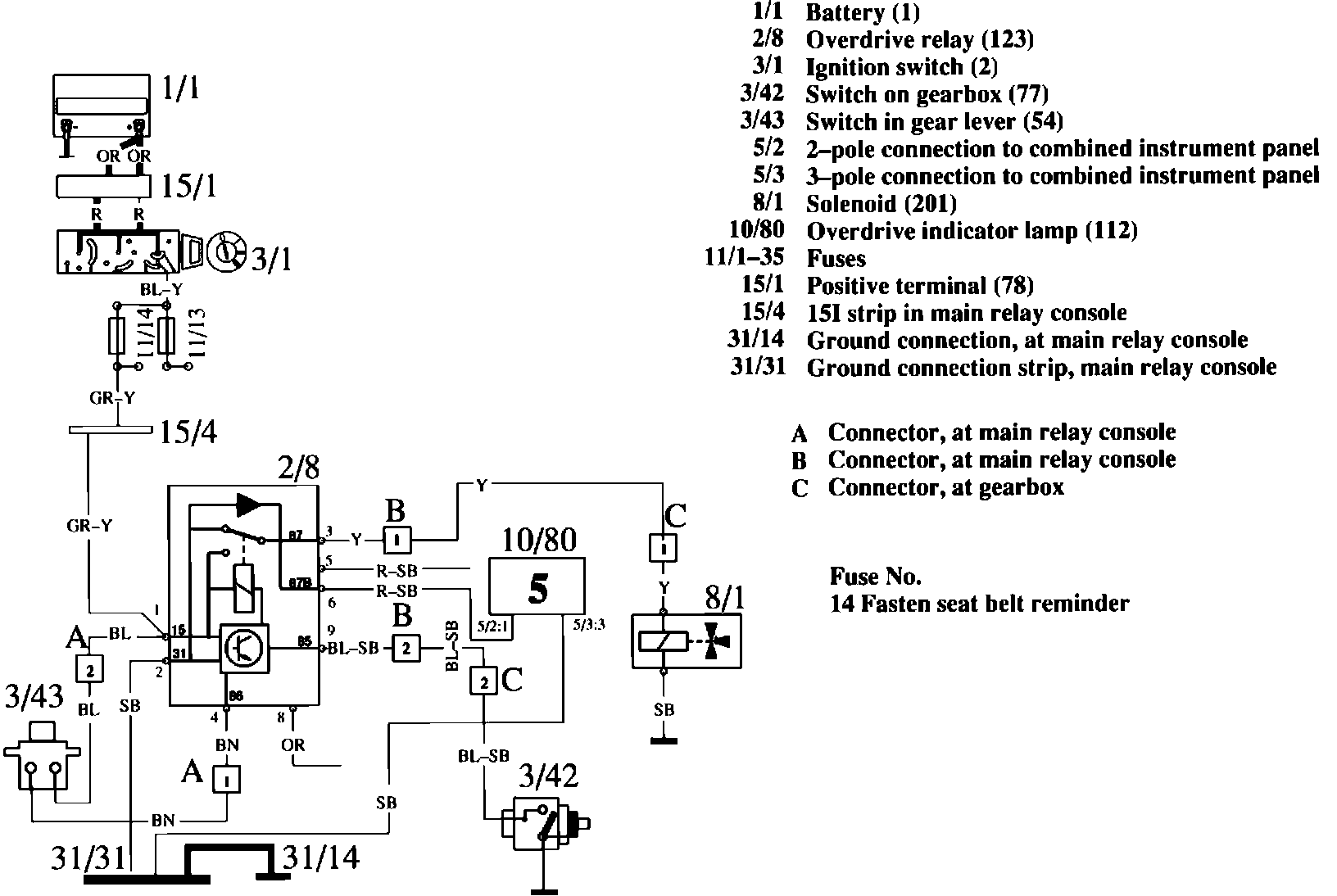

Vacuum Control Solenoid Valve, M/T

Overdrive (M46):
