System Diagram

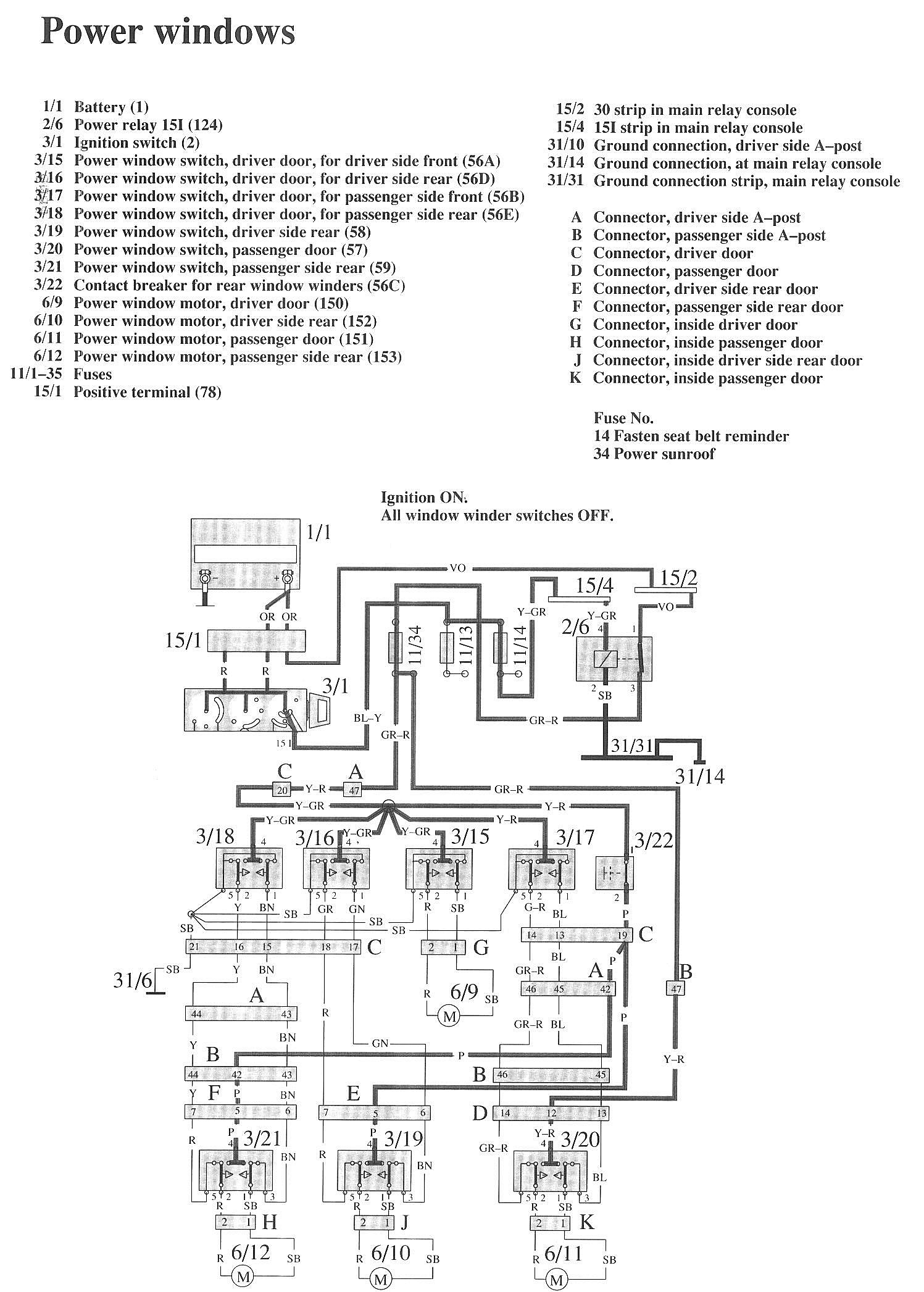

Wiring Diagrams:

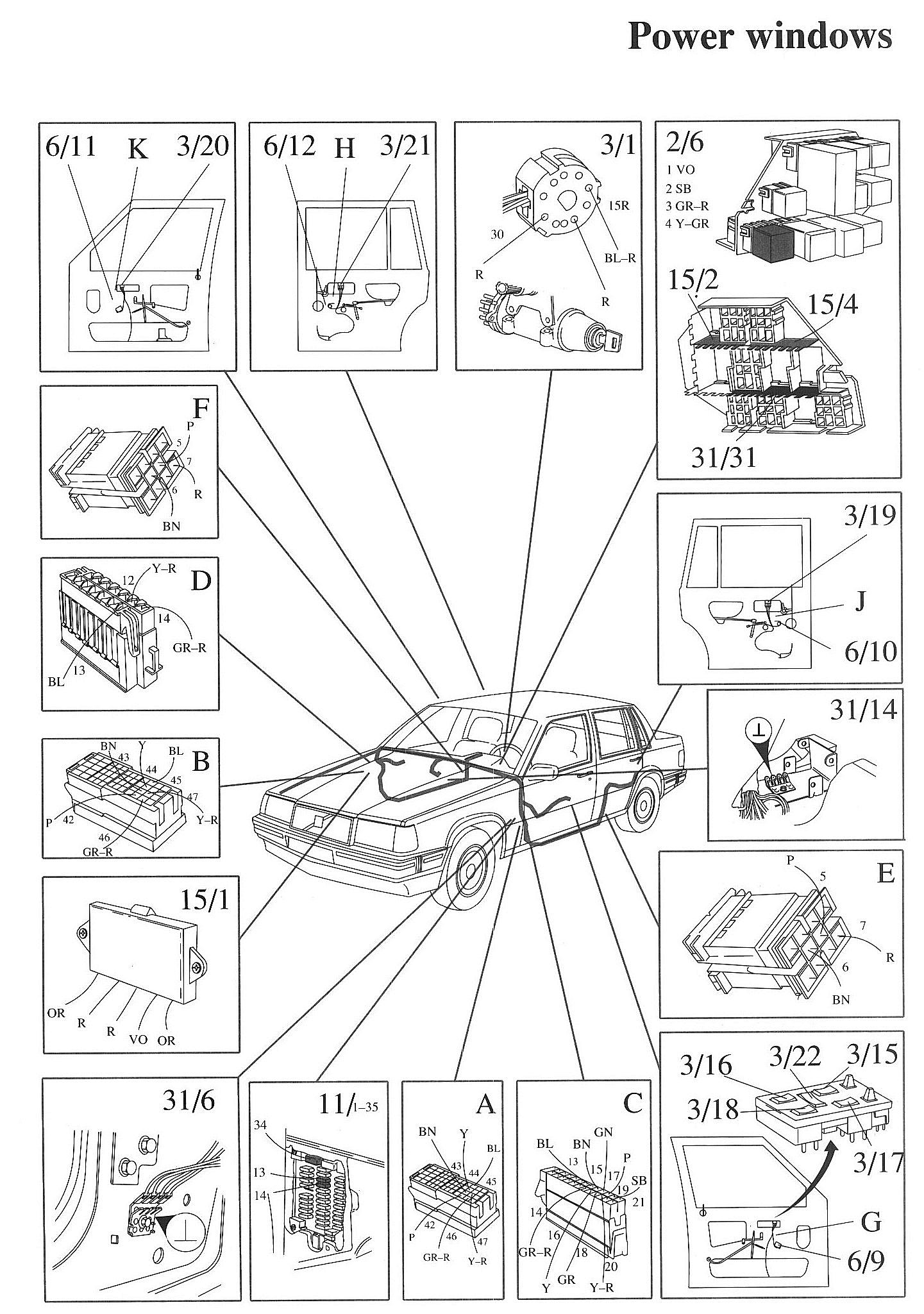

Component / Connector Views:

LEGEND
1/1 Battery
2/6 Power relay 151
3/1 Ignition switch
3/15 Power window switch, driver door, for driver side front
3/16 Power window switch, driver door, for driver side rear
3/17 Power window switch, driver door, for passenger side front
3/18 Power window switch, driver door, for passenger side rear
3/19 Power window switch, driver side rear
3/20 Power window switch, passenger door
3/21 Power window switch, passenger side rear
3/22 Contact breaker for rear window winders
6/9 Power window motor, driver door
6/10 Power window motor, driver side rea
6/11 Power window motor, passenger door
6/12 Power window motor, passenger side rear
11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
15/4 151 strip in main relay console
31/10 Ground connection, driver side A-post
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, driver side A-post
B Connector, passenger side A-post
C Connector, driver door
D Connector, passenger door
E Connector, driver side rear door
F Connector, passenger side rear door
G Connector, inside driver door
H Connector, inside passenger door
J Connector, inside driver side rear door
K Connector, inside passenger door
Fuse No.14 Fasten seat belt reminder
34 Power sunroof
