Dipped/Main Headlights

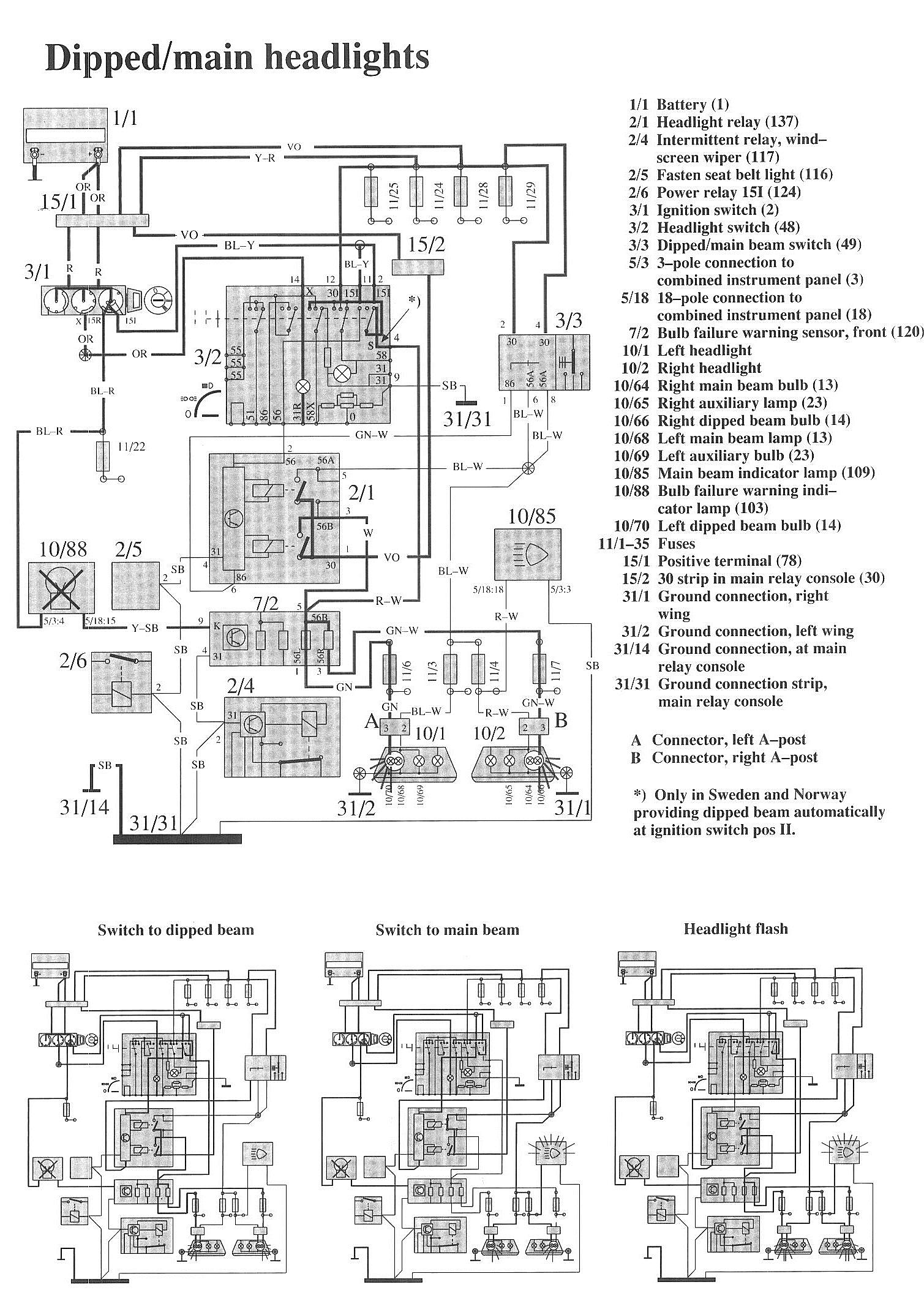

Wiring Diagrams:

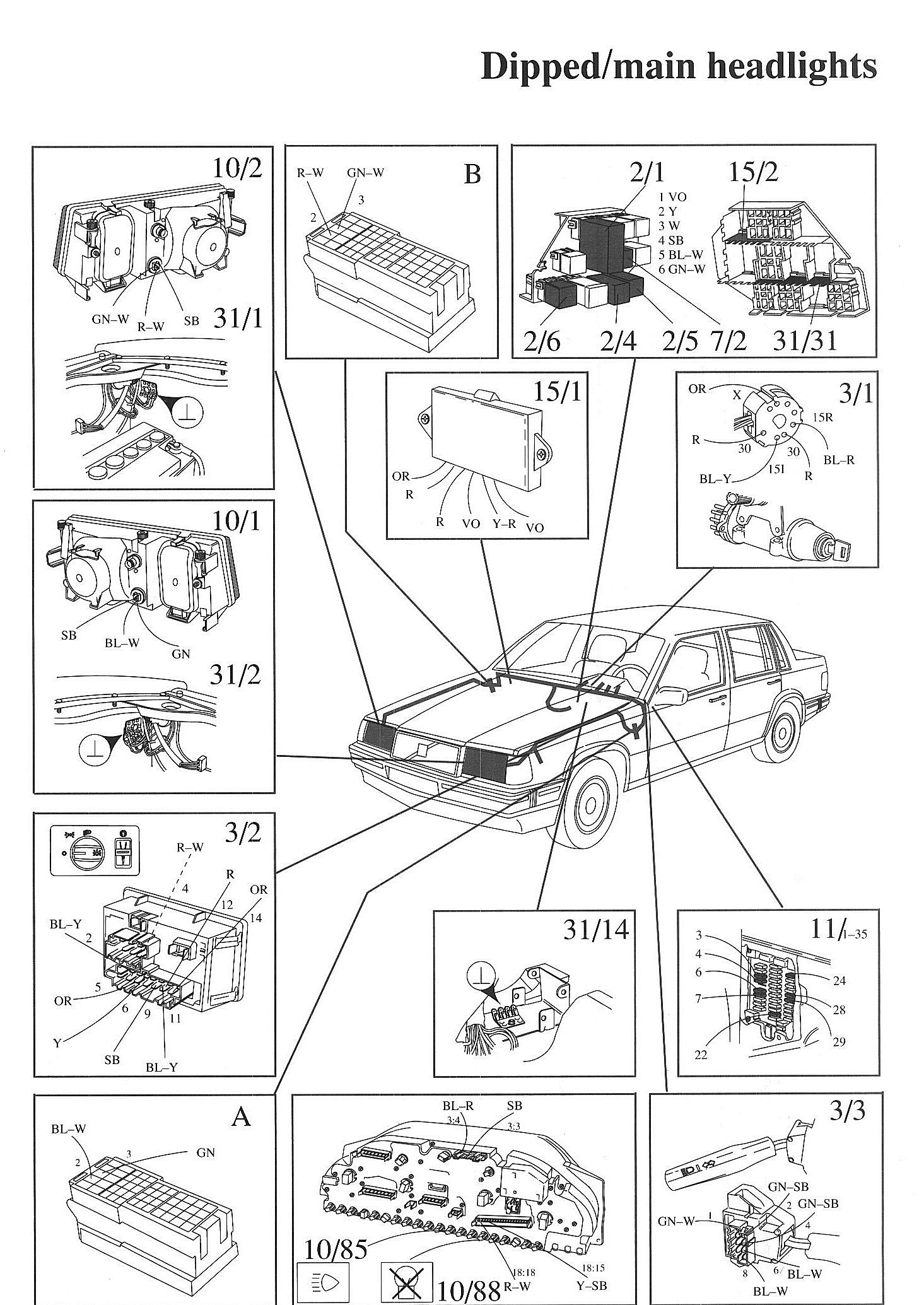

Component / Connector Views:

LEGEND
1/1 Battery
2/1 Headlight relay
2/4 Intermittent relay, wind- screen wiper
2/5 Fasten seat belt light
2/6 Power relay 151
3/1 Ignition switch
3/2 Headlight switch
3/3 Dipped/main beam switch
5/3 3-pole connection to combined instrument panel
5/18 18-pole connection to combined instrument panel
7/2 Bulb failure warning sensor, front
10/1 Left headlight
10/2 Right headlight
10/64 Right main beam bulb
10/65 Right auxiliary lamp
10/66 Right dipped beam bulb
10/68 Left main beam lamp
10/69 Left auxiliary bulb
10/85 Main beam indicator lamp
10/88 Bulb failure warning indicator lamp
10/70 Left dipped beam bulb
11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
31/1 Ground connection, right wing
31/2 Ground connection, left wing
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, left A-post
B Connector, right A-post
