Tailgate Washer & Wiper

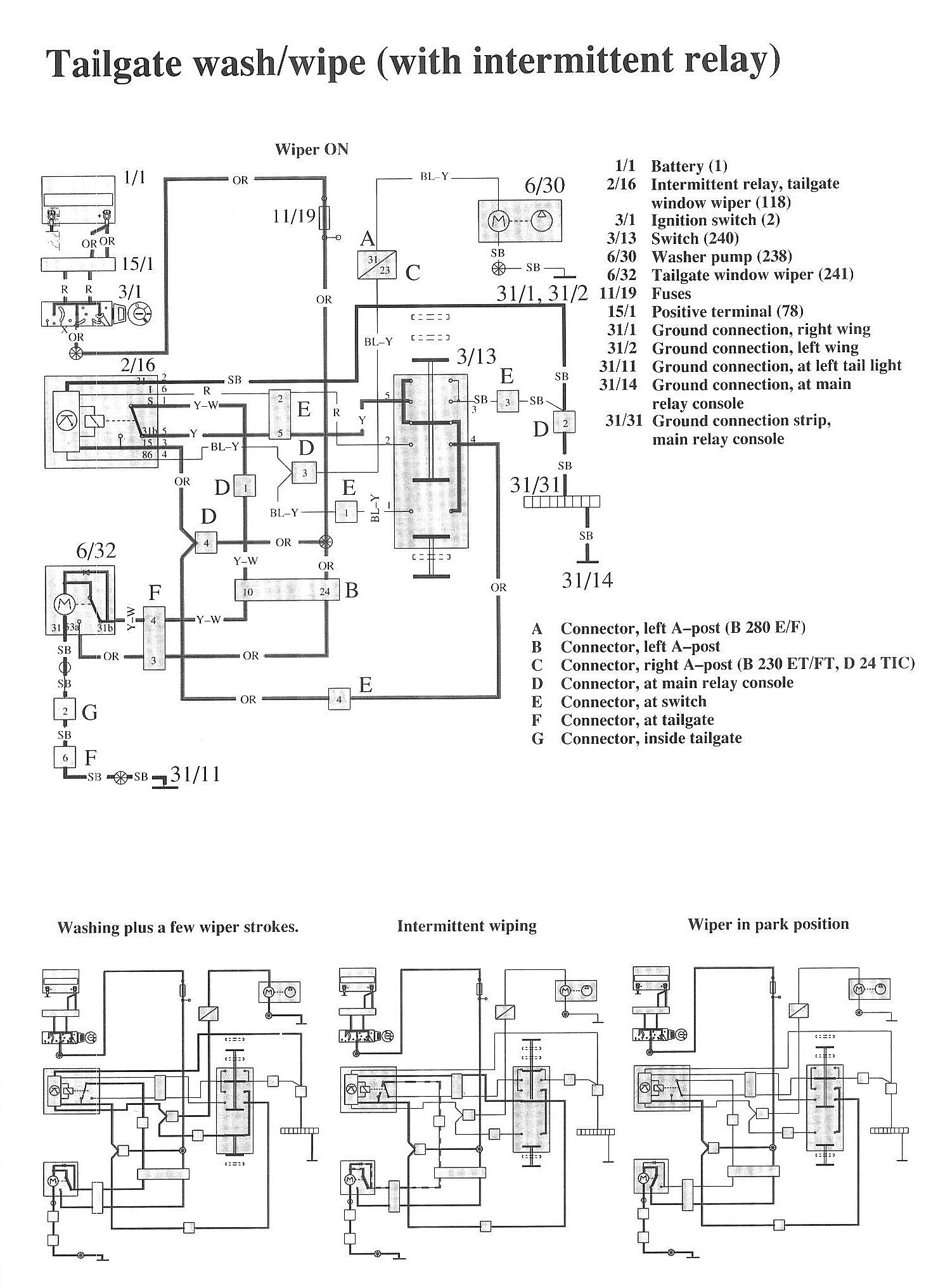

Wiring Diagrams:

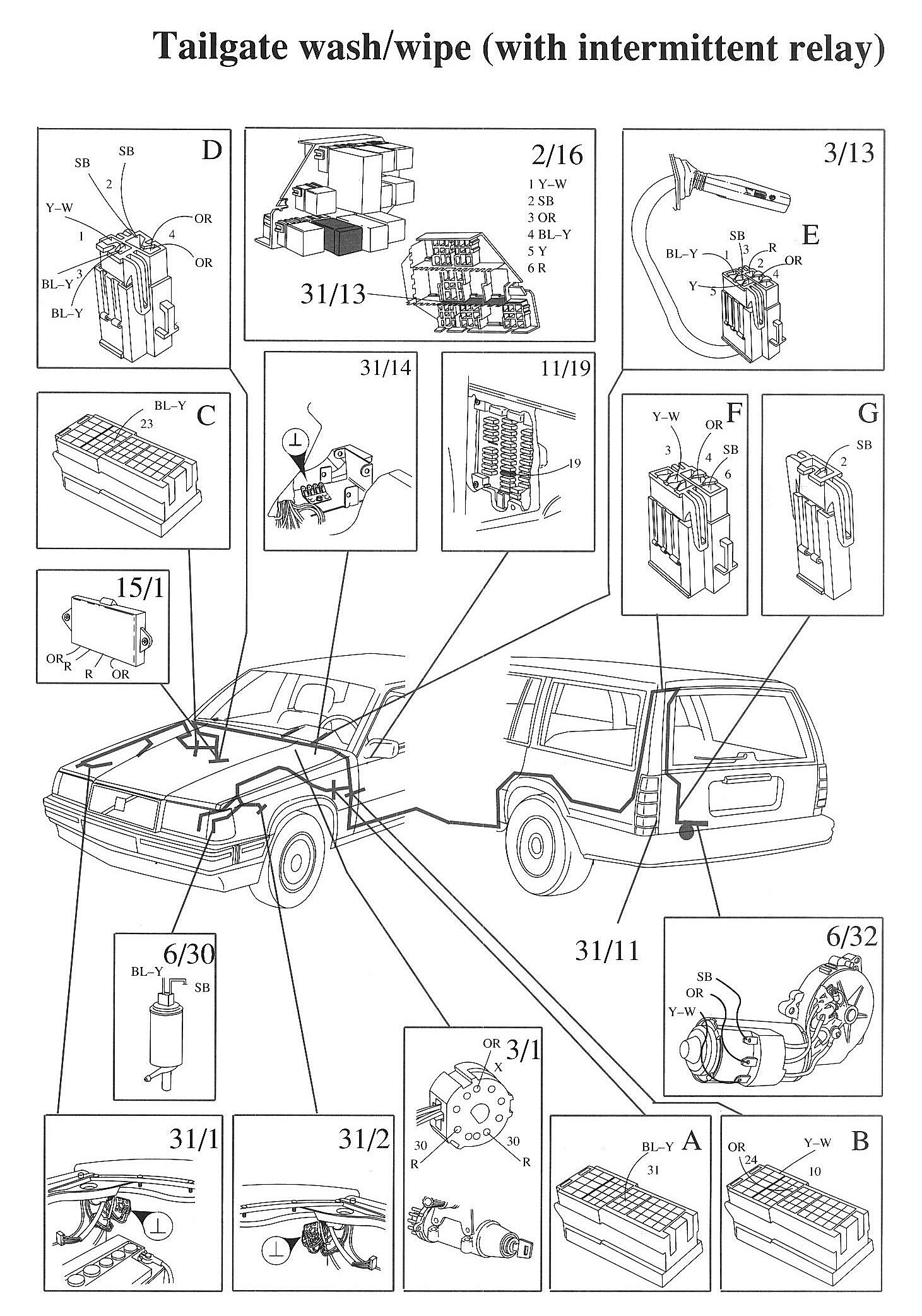

Component / Connector Views:

LEGEND
1/1 Battery
2/16 Intermittent relay, tailgate window wiper
3/1 Ignition switch
3/13 Switch
6/30 Washer pump
6/32 Tailgate window wiper

11/19 Fuses
15/1 Positive terminal
31/1 Ground connection, right wing
31/2 Ground connection, left wing
31/11 Ground connection, at left tail light
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, left A-post (B 280 E/F)
B Connector, left A-post
C Connector, right A-post (B 230 ET/FT, D24 TIC)
D Connector, at main relay console
E Connector, at switch
F Connector, at tailgate
G Connector, inside tailgate
