Power Locks: Locations

Component / Connector Views:

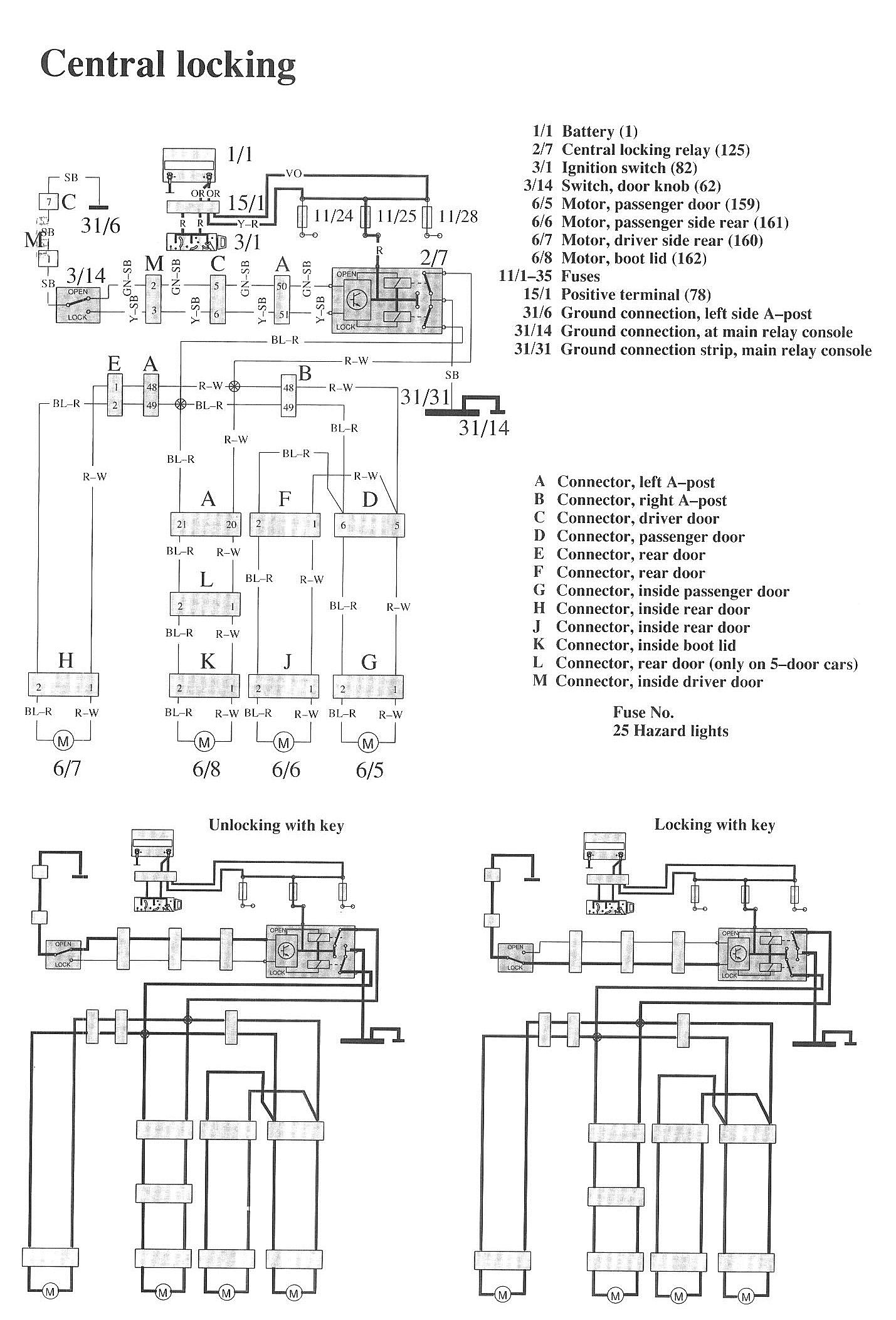

Wiring Diagrams:

LEGEND
1/1 Battery
2/7 Central locking relay
3/1 Ignition switch
3/14 Switch, door knob
6/5 Motor, passenger door
6/6 Motor, passenger side rear
6/7 Motor, driver side rear
6/8 Motor, boot lid
11/1-35 Fuses
15/1 Positive terminal
31/6 Ground connection, left side A-post
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, left A-post
B Connector, right A-post
C Connector, driver door
D Connector, passenger door
E Connector, rear door
F Connector, rear door
G Connector, inside passenger door
H Connector, inside rear door
J Connector, inside rear door
K Connector, inside boot lid
L Connector, rear door (only on 5-door cars)
M Connector, inside driver door
Fuse No.25 Hazard lights
