Sunroof / Moonroof: Locations

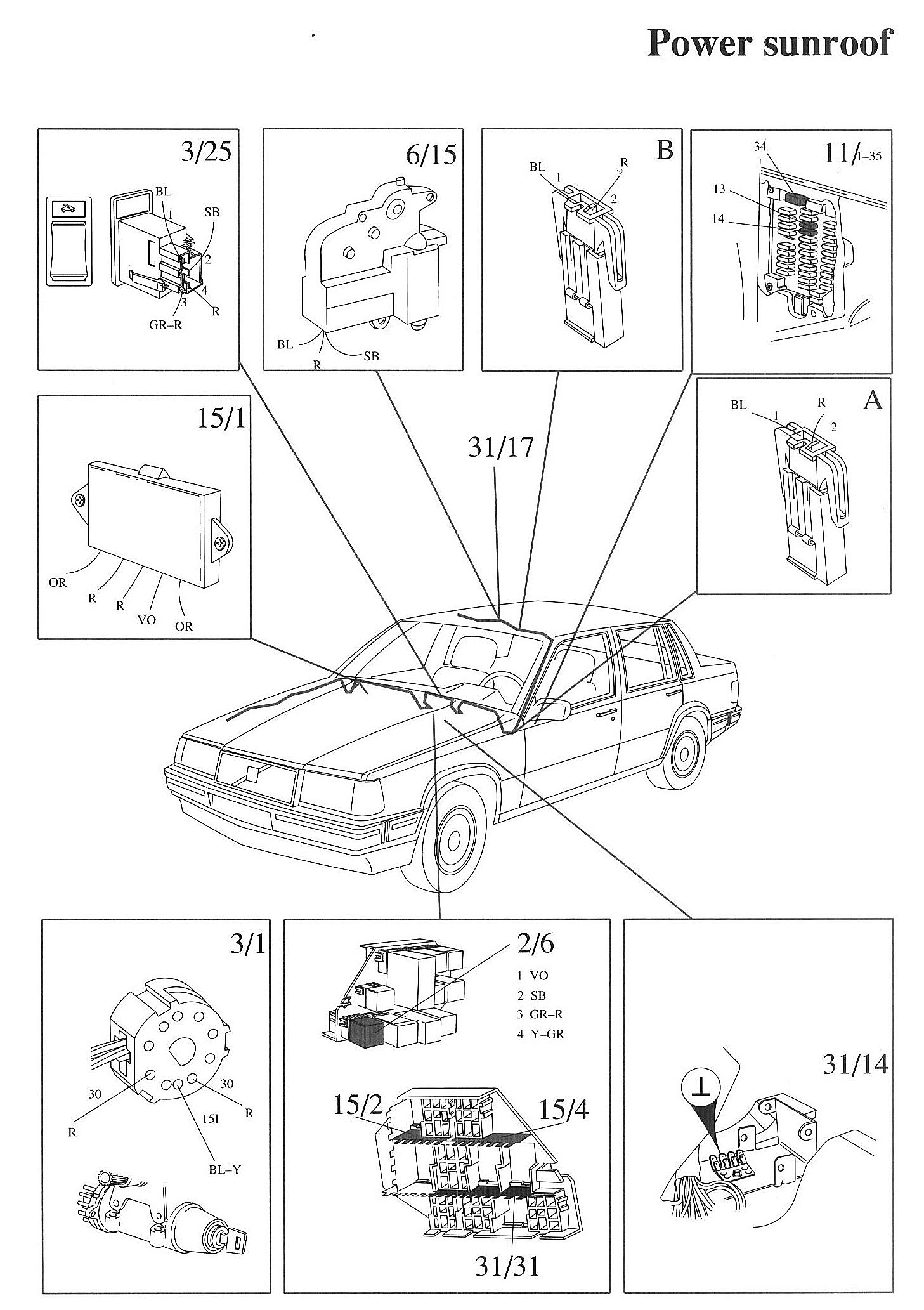

Component / Connector Views:

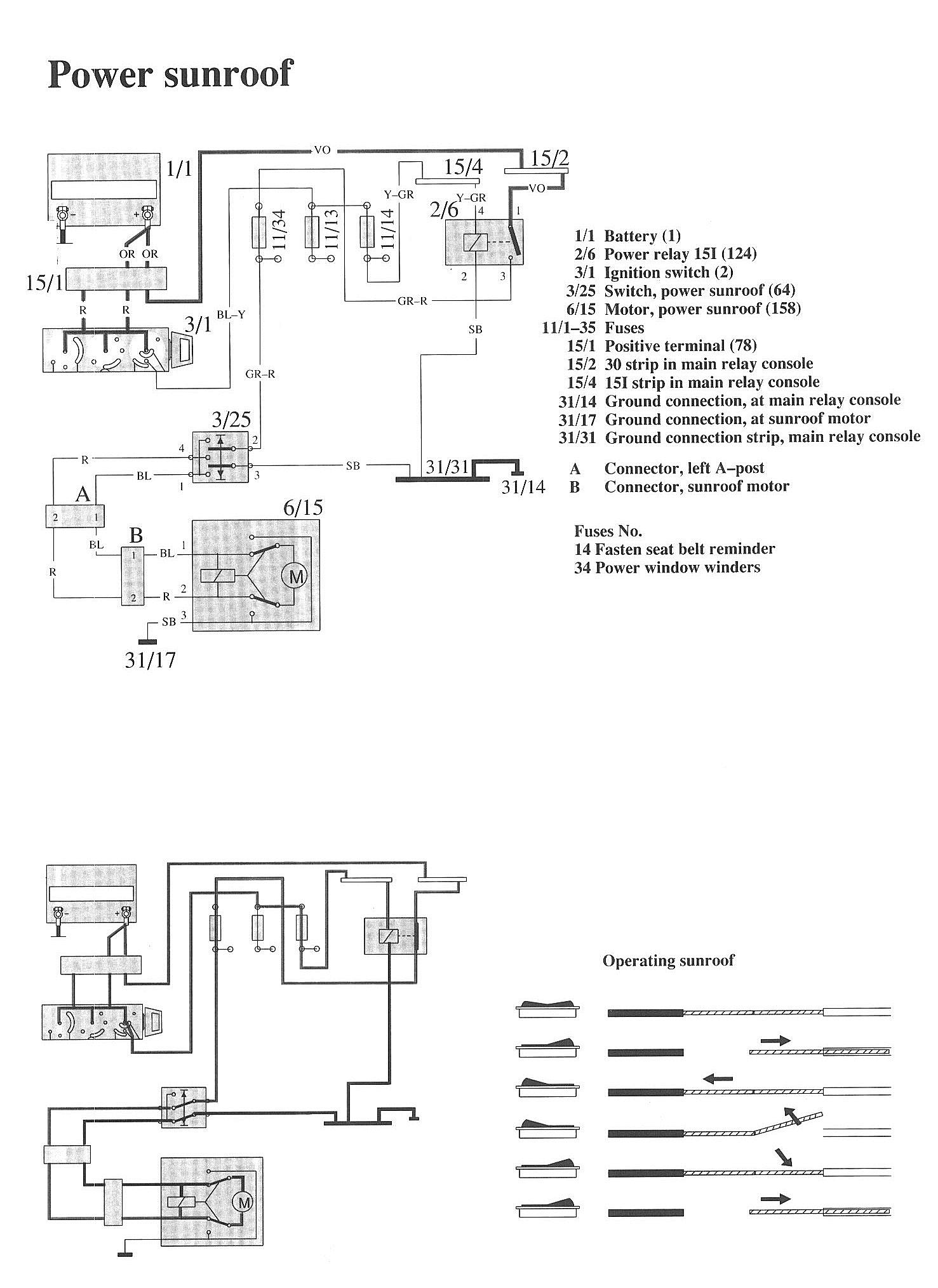

Wiring Diagrams:

LEGEND
1/1 Battery
2/6 Power relay 151
3/1 Ignition switch
3/25 Switch, power sunroof
6/15 Motor, power sunroof
11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
15/4 151 strip in main relay console
31/14 Ground connection, at main relay console
31/17 Ground connection, at sunroof motor
31/31 Ground connection strip, main relay console

A Connector, left A-post
B Connector, sunroof motor
Fuses No.14 Fasten seat belt reminder
34 Power window winders
