System Diagram

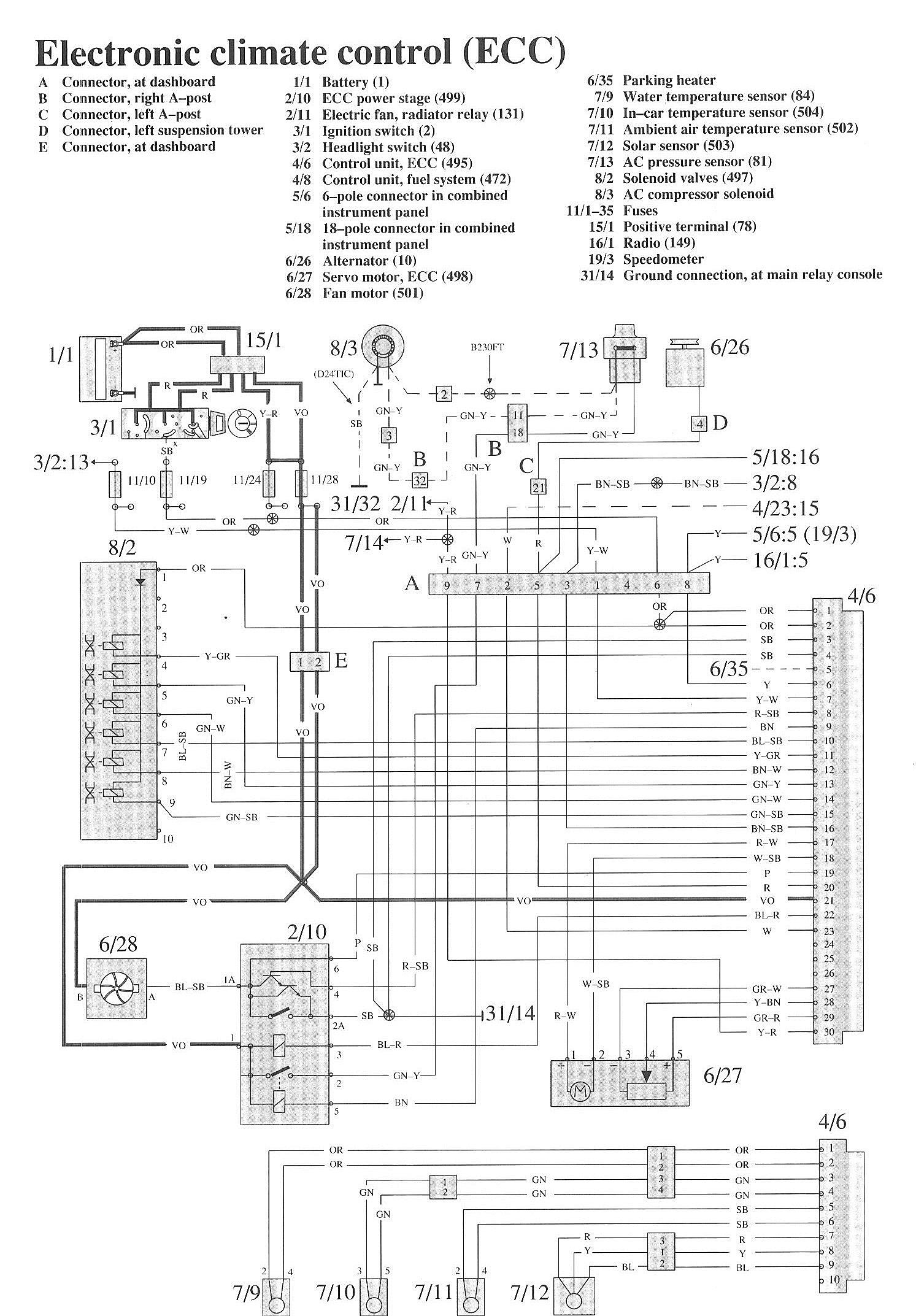

Wiring Diagrams:

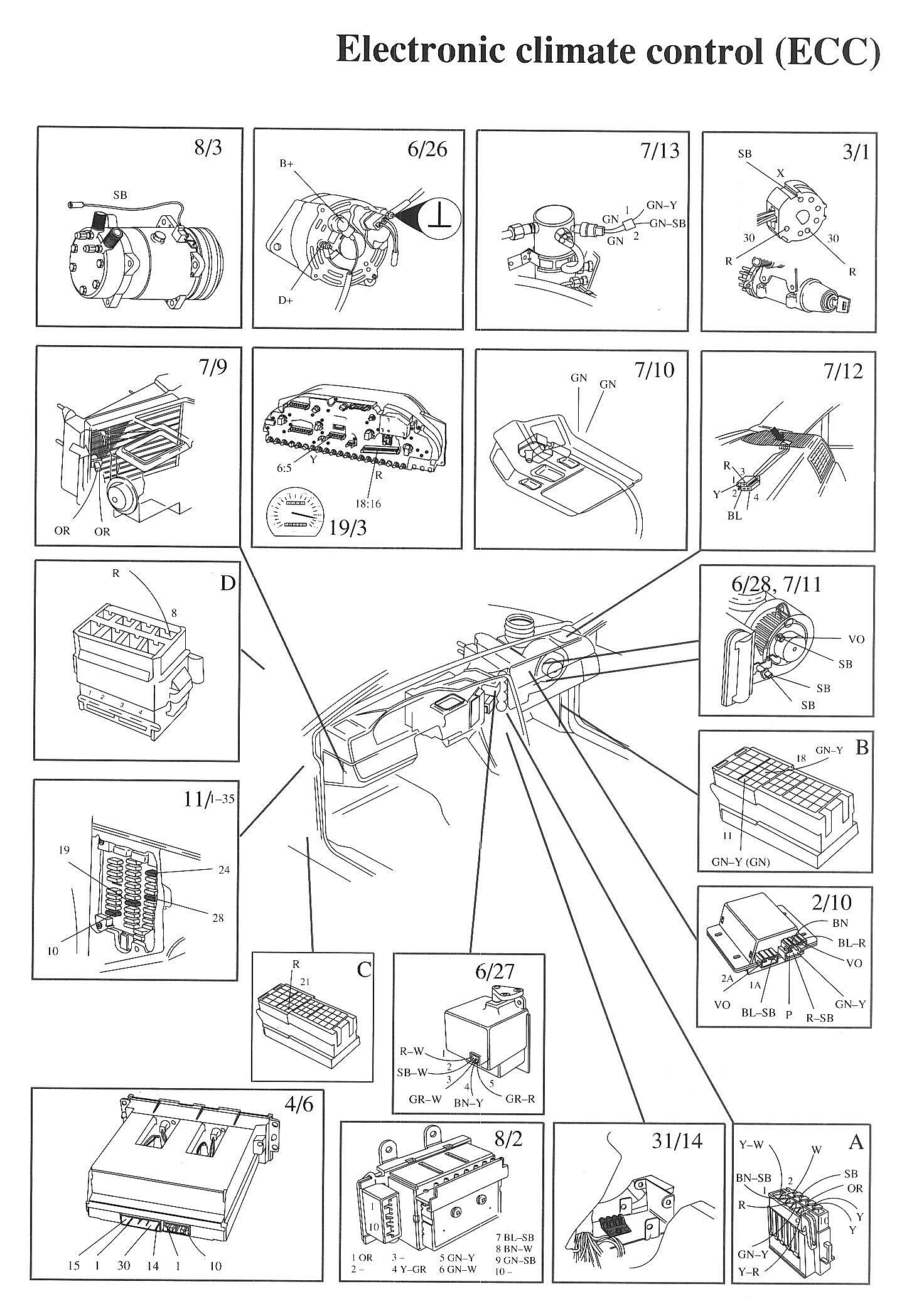

Component / Connector Views:

LEGEND
A Connector, at dashboard
B Connector, right A-post
C Connector, left A-post
D Connector, left suspension tower
E Connector, at dashboard

1/1 Battery
2/10 ECC power stage
2/11 Electric fan, radiator relay
3/1 Ignition switch
3/2 Headlight switch
4/6 Control unit, ECC
4/8 Control unit, fuel system
5/6 6-pole connector in combined instrument panel
5/18 18-pole connector in combined instrument panel
6/26 Alternator
6/27 Servo motor, FCC
6/28 Fan motor
6/35 Parking heater
7/9 Water temperature sensor
7/10 In-car temperature sensor
7/11 Ambient air temperature sensor
7/12 Solar sensor
7/13 AC pressure sensor
8/2 Solenoid valves
8/3 AC compressor solenoid
11/1-35 Fuses
15/1 Positive terminal
16/1 Radio
19/3 Speedometer
31/14 Ground connection, at main relay console
