Back-Up/Reversing Lights

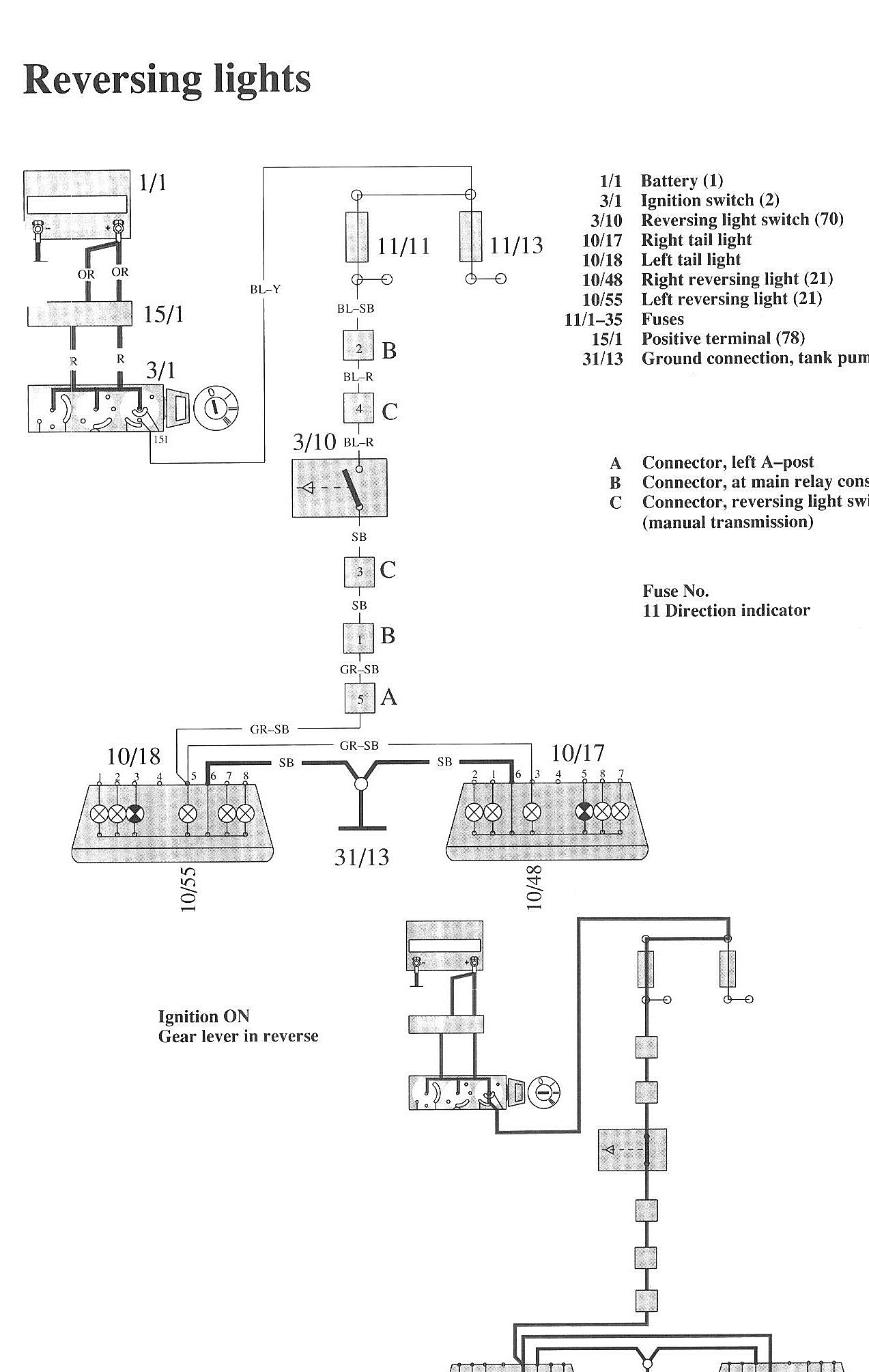

Wiring Diagrams:

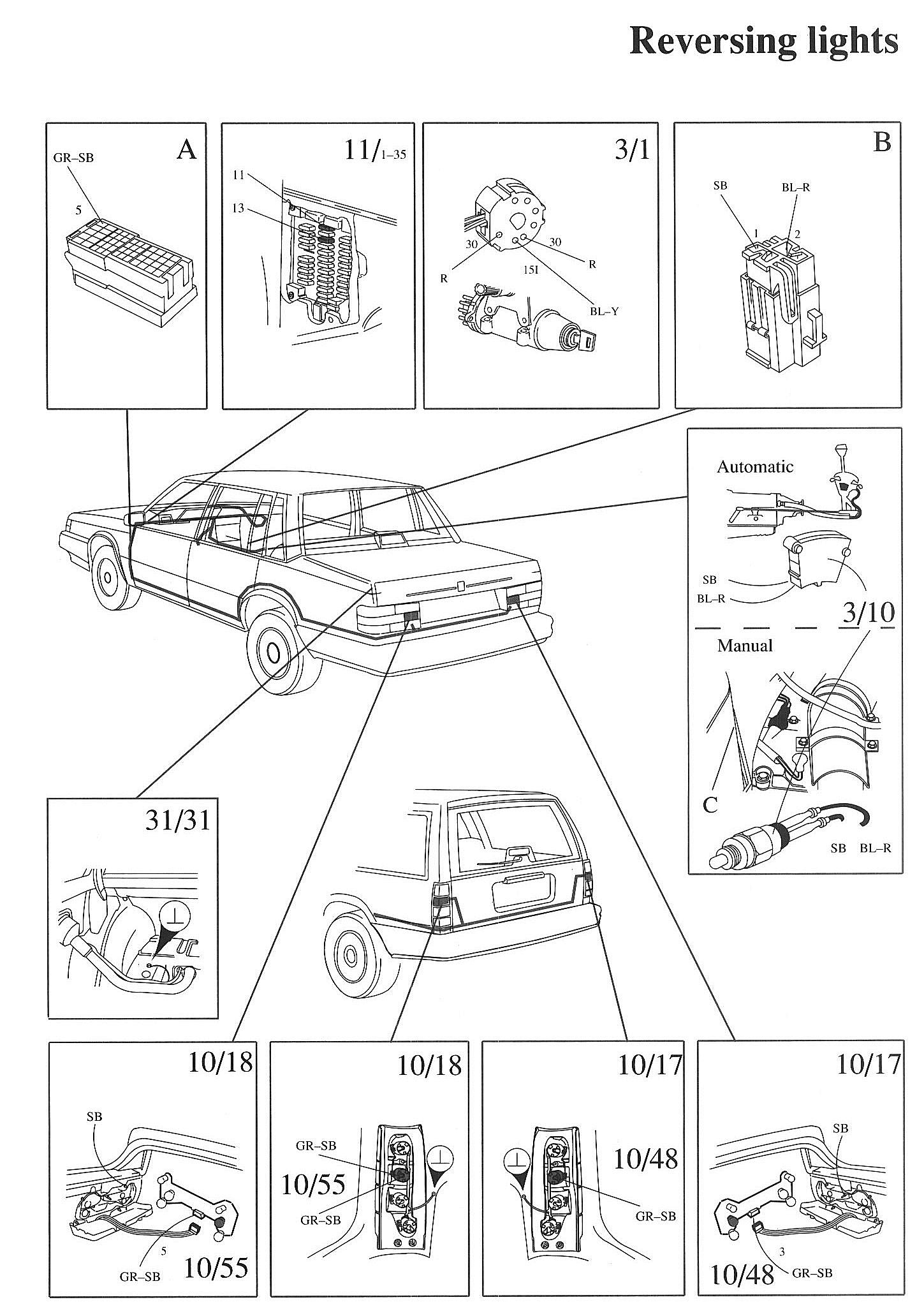

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/10 Reversing light switch
10/17 Right tail light
10/18 Left tail light
10/48 Right reversing light
10/55 Left reversing light
11/1-35 Fuses
15/1 Positive terminal
31/13 Ground connection, tank pump

A Connector, left A-post
B Connector, at main relay console
C Connector, reversing light switch (manual transmission)
Fuse No. 11 Direction indicator
