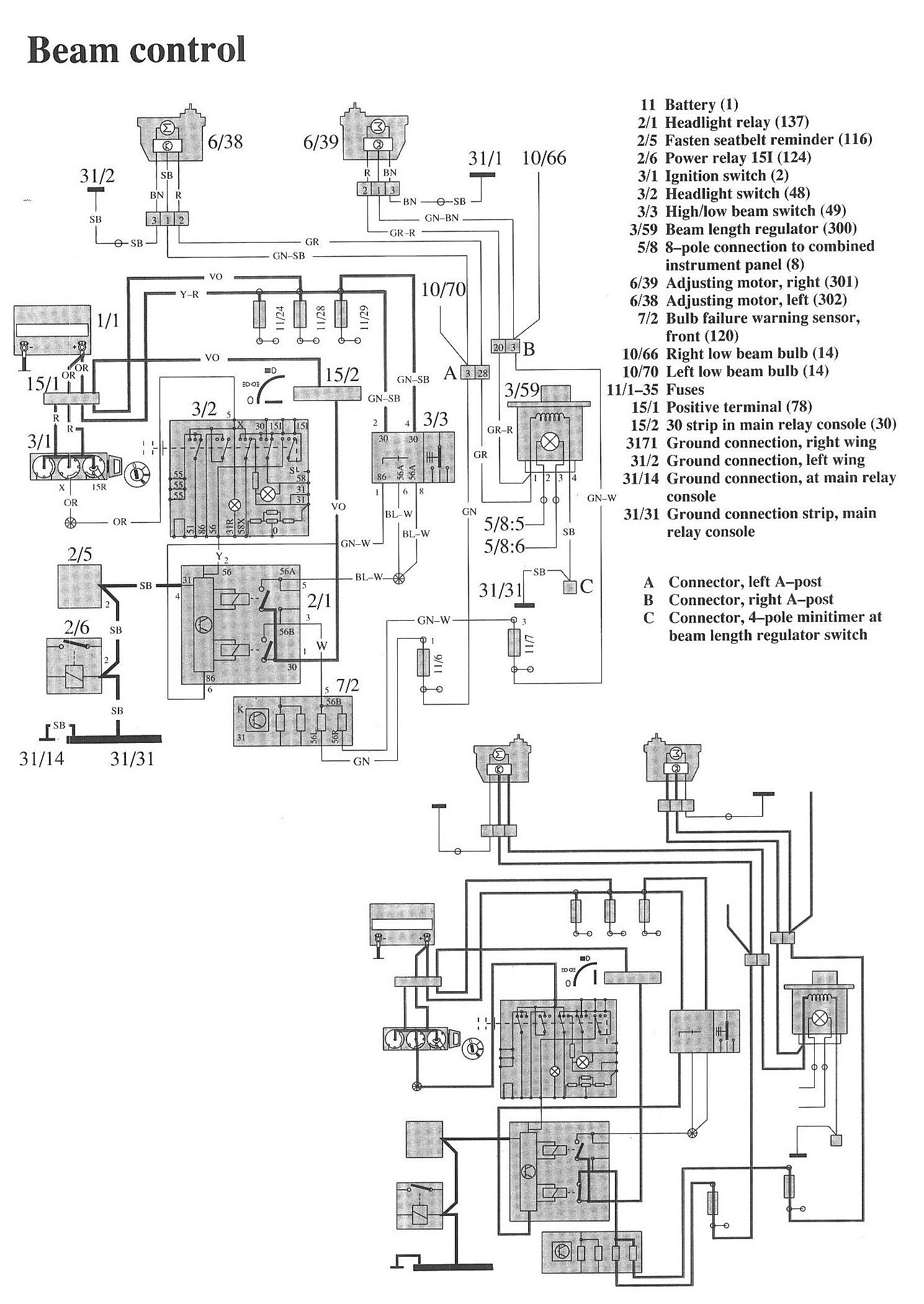

Beam Control

Wiring Diagrams:

Component / Connector Views:

LEGEND
11 Battery
2/1 Headlight relay
2/5 Fasten seatbelt reminder
2/6 Power relay 151
3/1 Ignition switch
3/2 Headlight switch
3/3 High/low beam switch
3/59 Beam length regulator
5/8 8-pole connection to combined instrument panel
6/39 Adjusting motor, right
6/38 Adjusting motor, left
7/2 Bulb failure warning sensor, front
10/66 Right low beam bulb
10/70 Left low beam bulb
11/1-35 Fuses
15/1 Positive terminal
15/2 30 strip in main relay console
3171 Ground connection, right wing
31/2 Ground connection, left wing
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, left A-post
B Connector, right A-post
C Connector, 4-pole minitimer at beam length regulator switch
