Electrical Diagrams

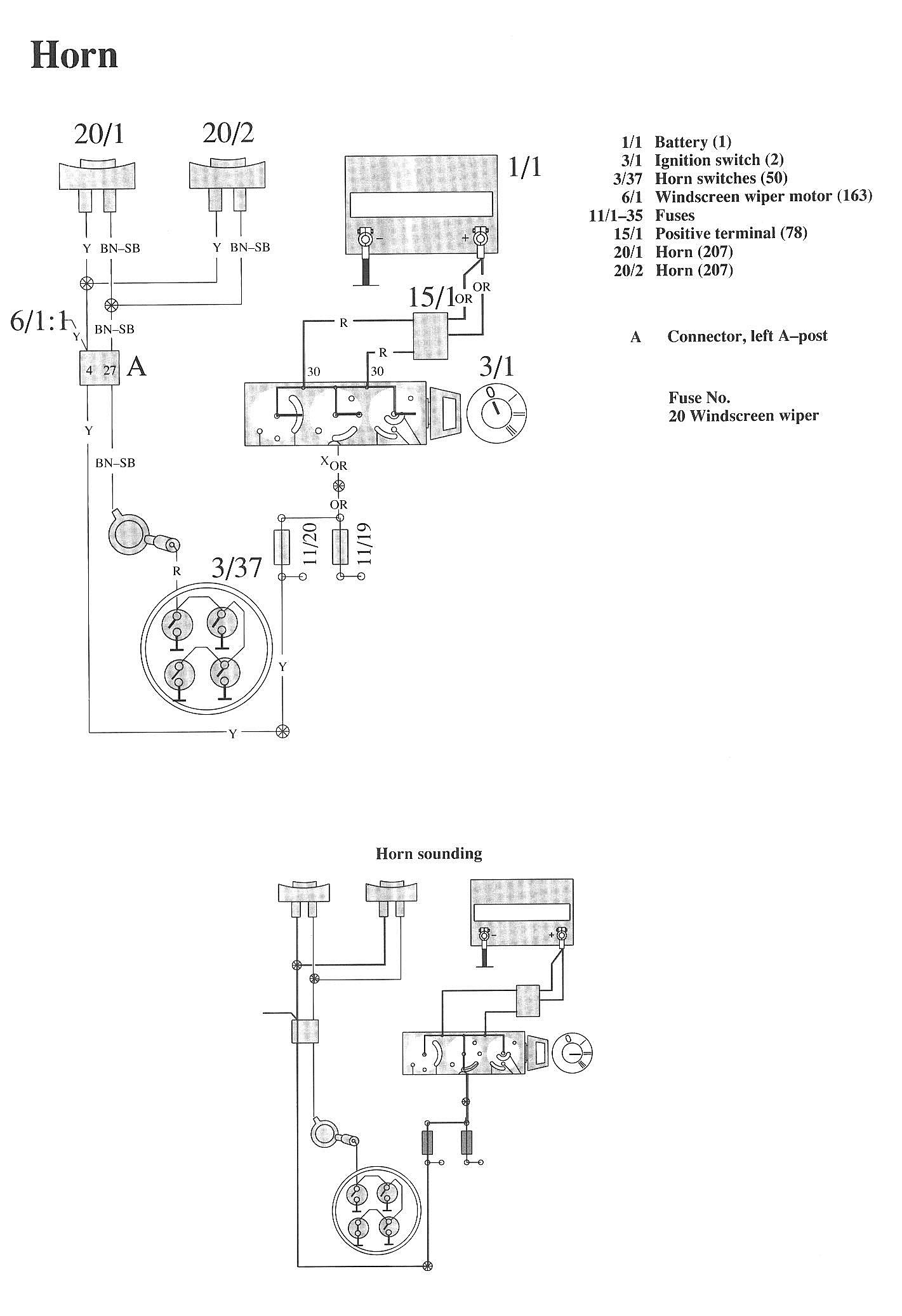

Wiring Diagrams:

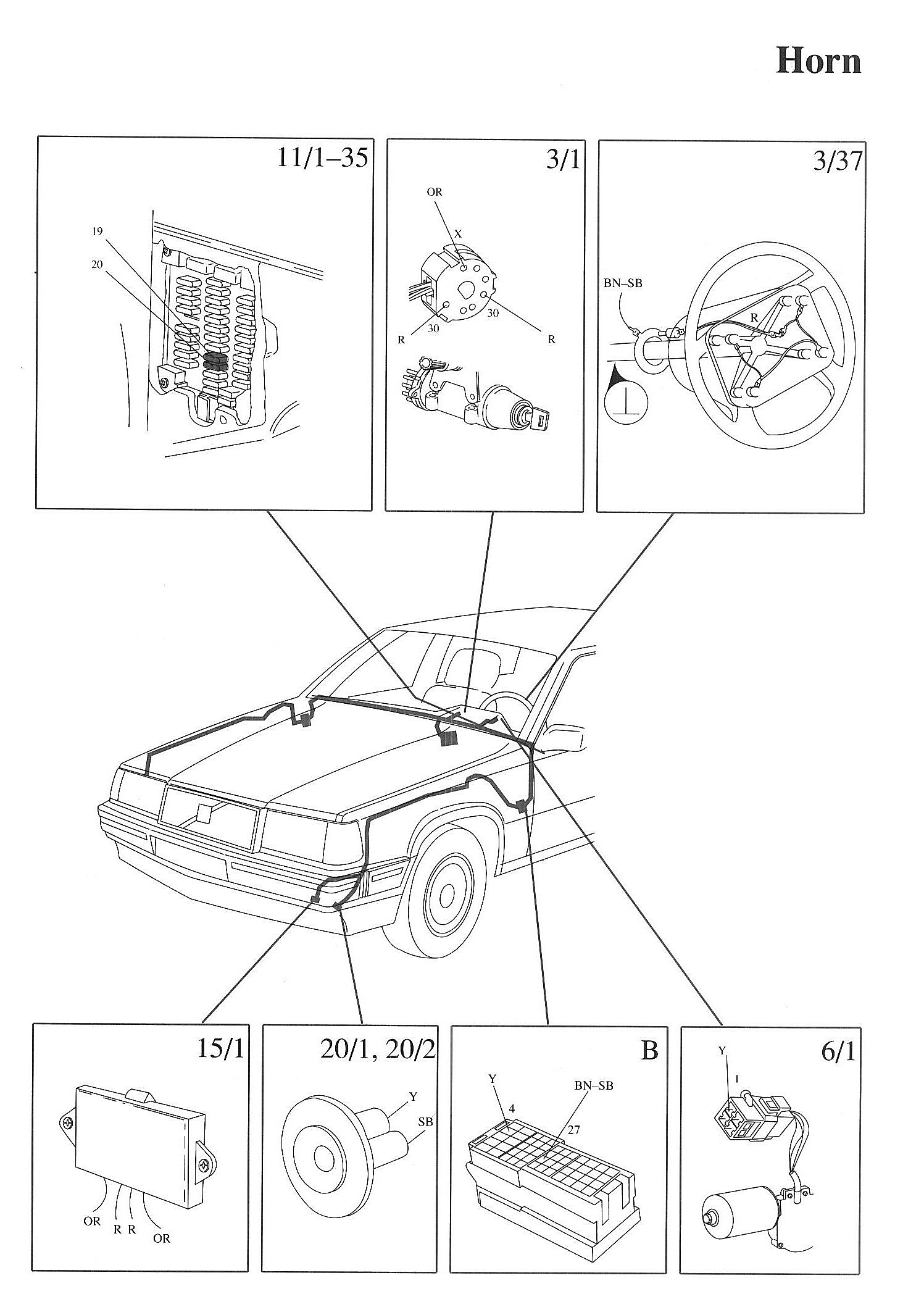

Component / Connector Views:

LEGEND
1/1 Battery
3/1 Ignition switch
3/37 Horn switches
6/1 Windscreen wiper motor
11/1-35 Fuses
15/1 Positive terminal
20/1 Horn
20/2 Horn

A Connector, left A-post
Fuse No. 20 Windscreen wiper
