Heated Rear Window and Door Mirrors, With Delay Relay

Component / Connector Views:

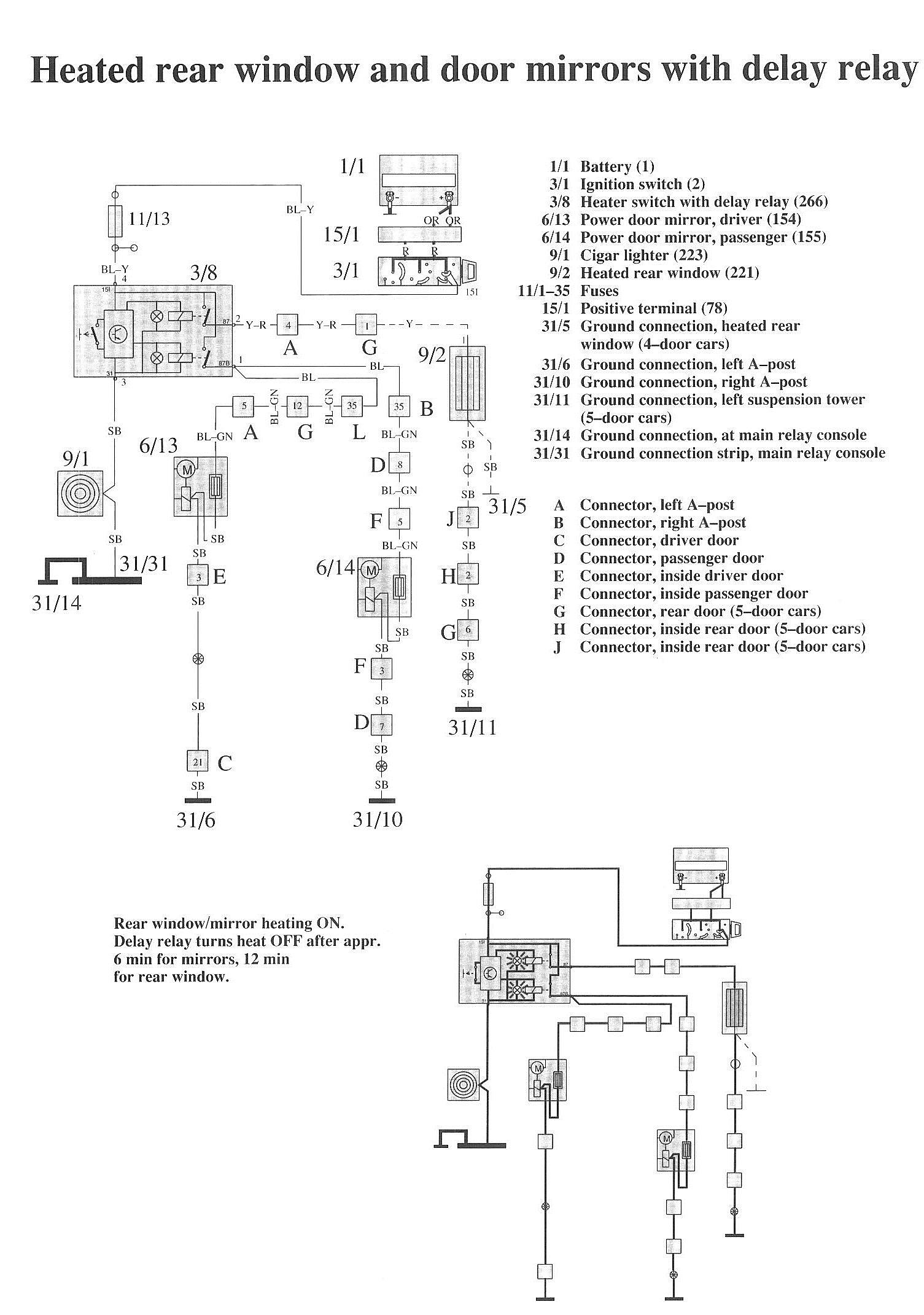

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition switch
3/8 Heater switch with delay relay
6/13 Power door mirror, driver
6/14 Power door mirror, passenger
9/1 Cigar lighter
9/2 Heated rear window
11/1-35 Fuses
15/1 Positive terminal
31/5 Ground connection, heated rear window (4-door cars)
31/6 Ground connection, left A-post
31/10 Ground connection, right A-post
31/11 Ground connection, left suspension tower (5-door cars)
31/14 Ground connection, at main relay console
31/31 Ground connection strip, main relay console

A Connector, left A-post
B Connector, right A-post
C Connector, driver door
D Connector, passenger door
E Connector, inside driver door
F Connector, inside passenger door
G Connector, rear door (5-door cars)
H Connector, inside rear door (5-door cars)
J Connector, inside rear door (5-door cars)
