Home >> Volvo >> 1990 >> 780 L4-2320cc 2.3L SOHC Turbo VIN 87 B230FT >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lamp Out Sensor >> With High-Level Brake Light

With High-Level Brake Light

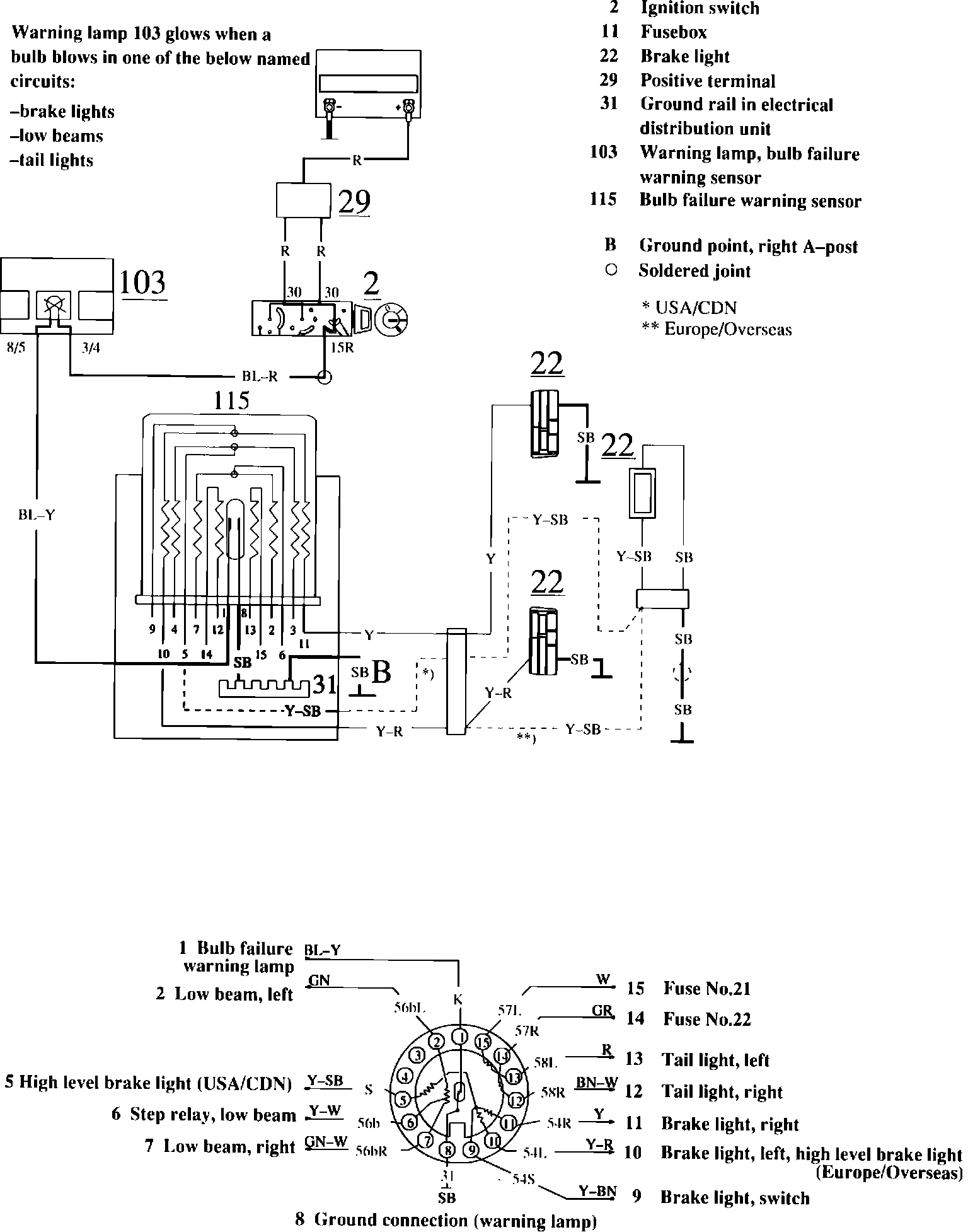

Bulb Failure Warning Sensor With High Level Brake Lights:
