Cigarette Lighter

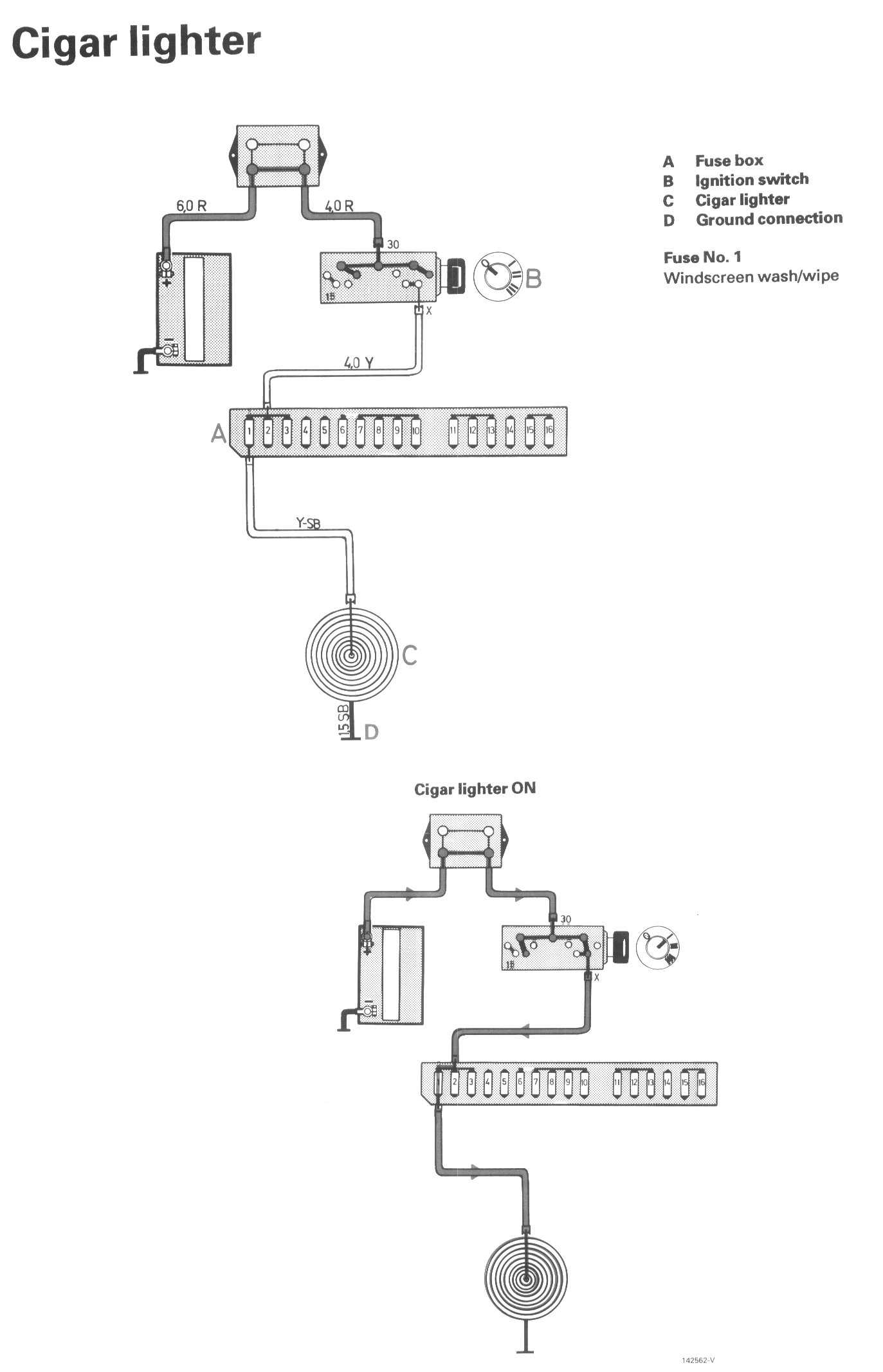

Wiring Diagrams:




Component / Connector Views:




LEGEND
A Fusebox
B Ignition switch
C Cigar lighter
D Ground connection
