Outside Temperature Display

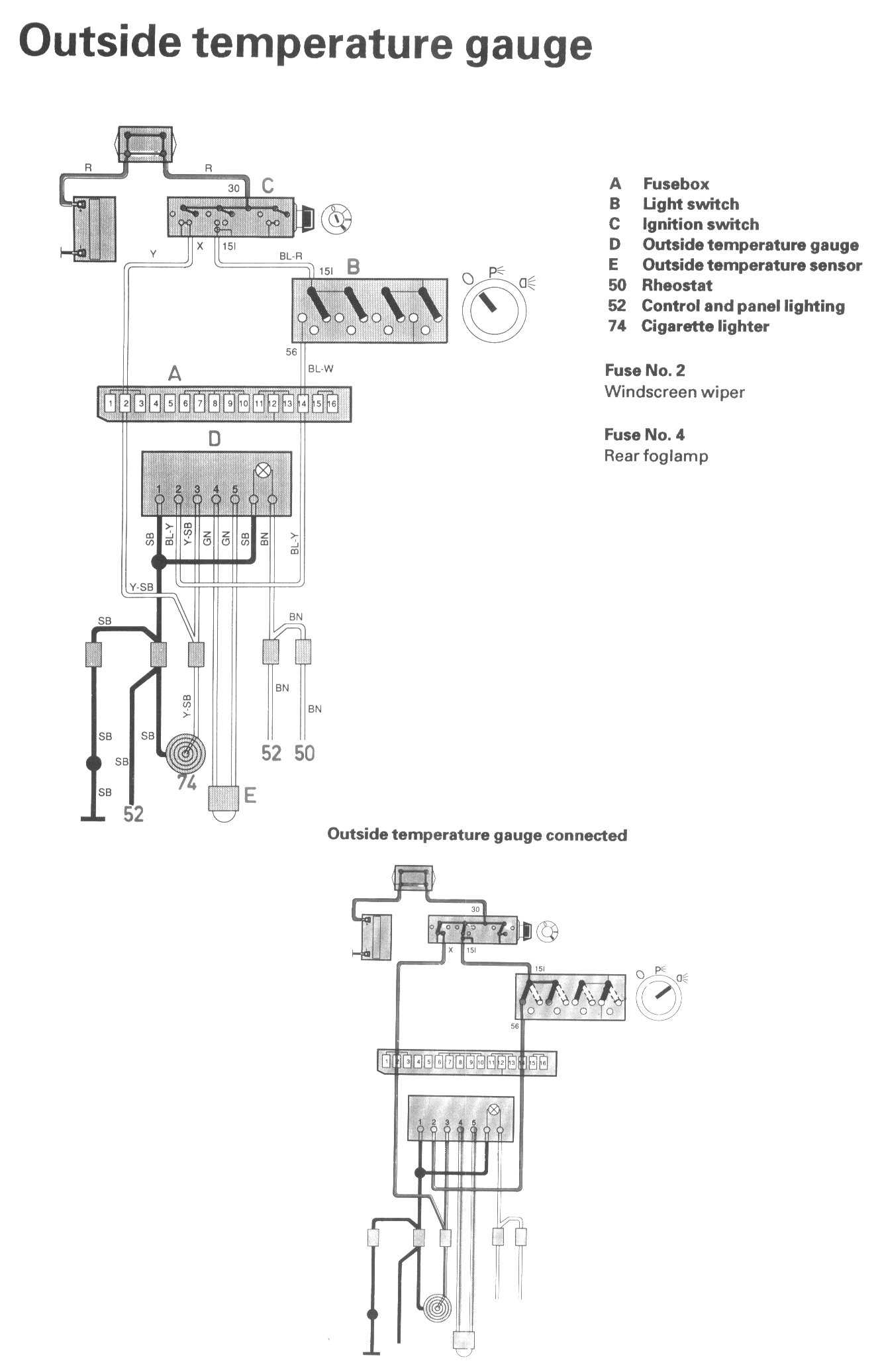

Wiring Diagrams:

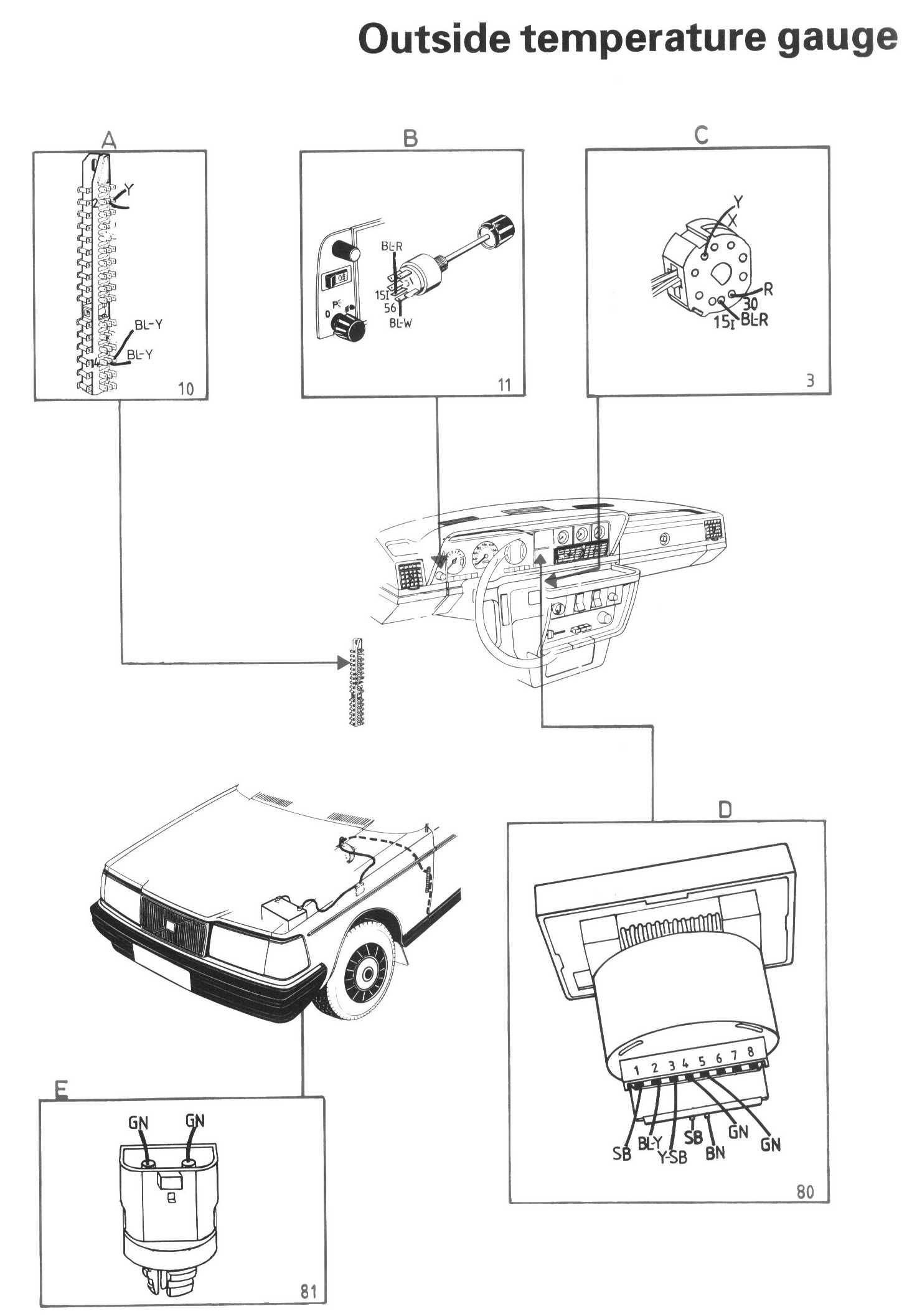

Component / Connector Views:

LEGEND
A Fusebox
B Light switch
C Ignition switch
D Outside temperature gauge
E Outside temperature sensor

50 Rheostat
62 Control end panel lighting
74 Cigarette lighter
