System Diagram

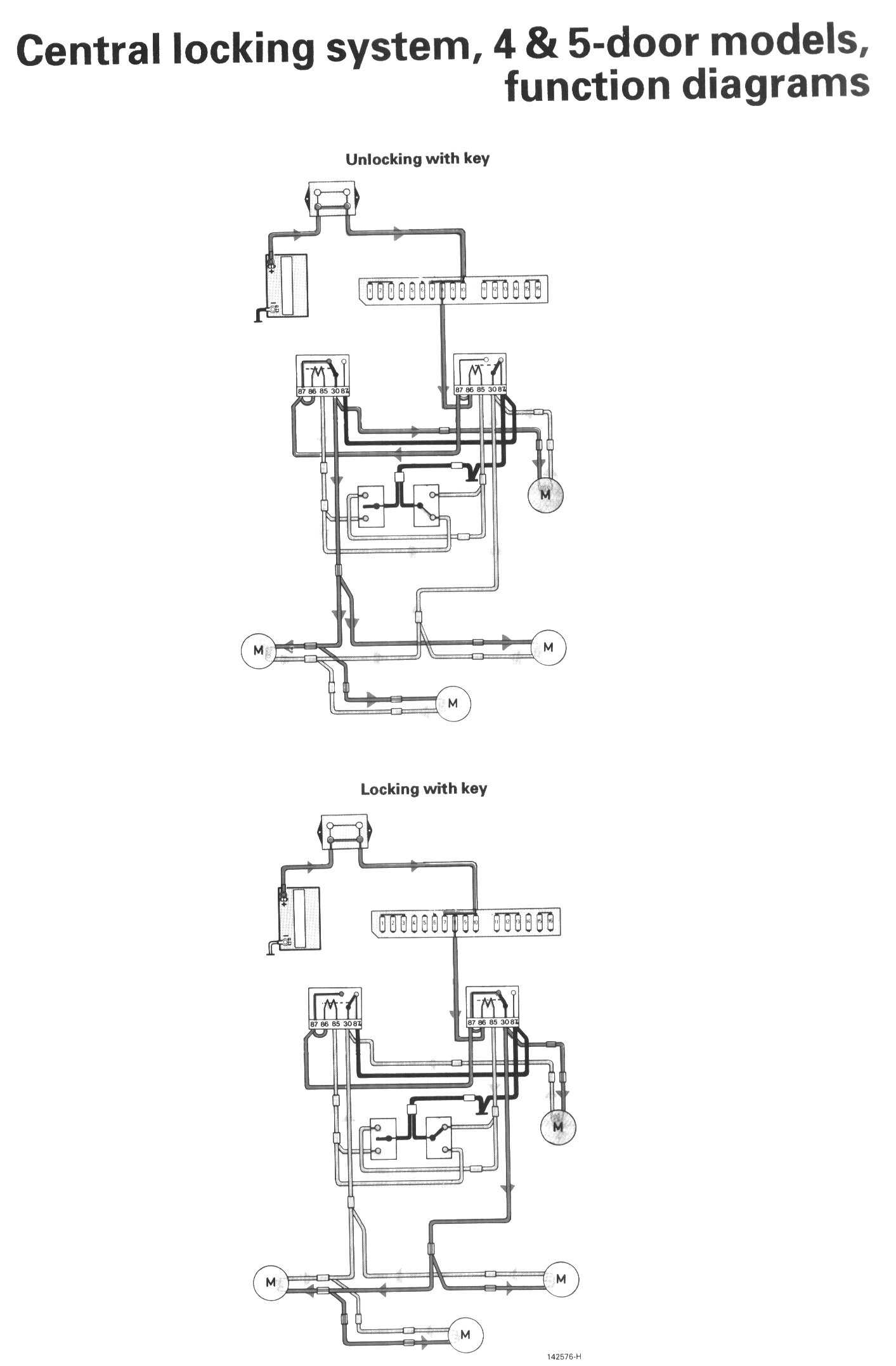

Unlocking / Locking With Door Button:

Unlocking / Locking With Key:

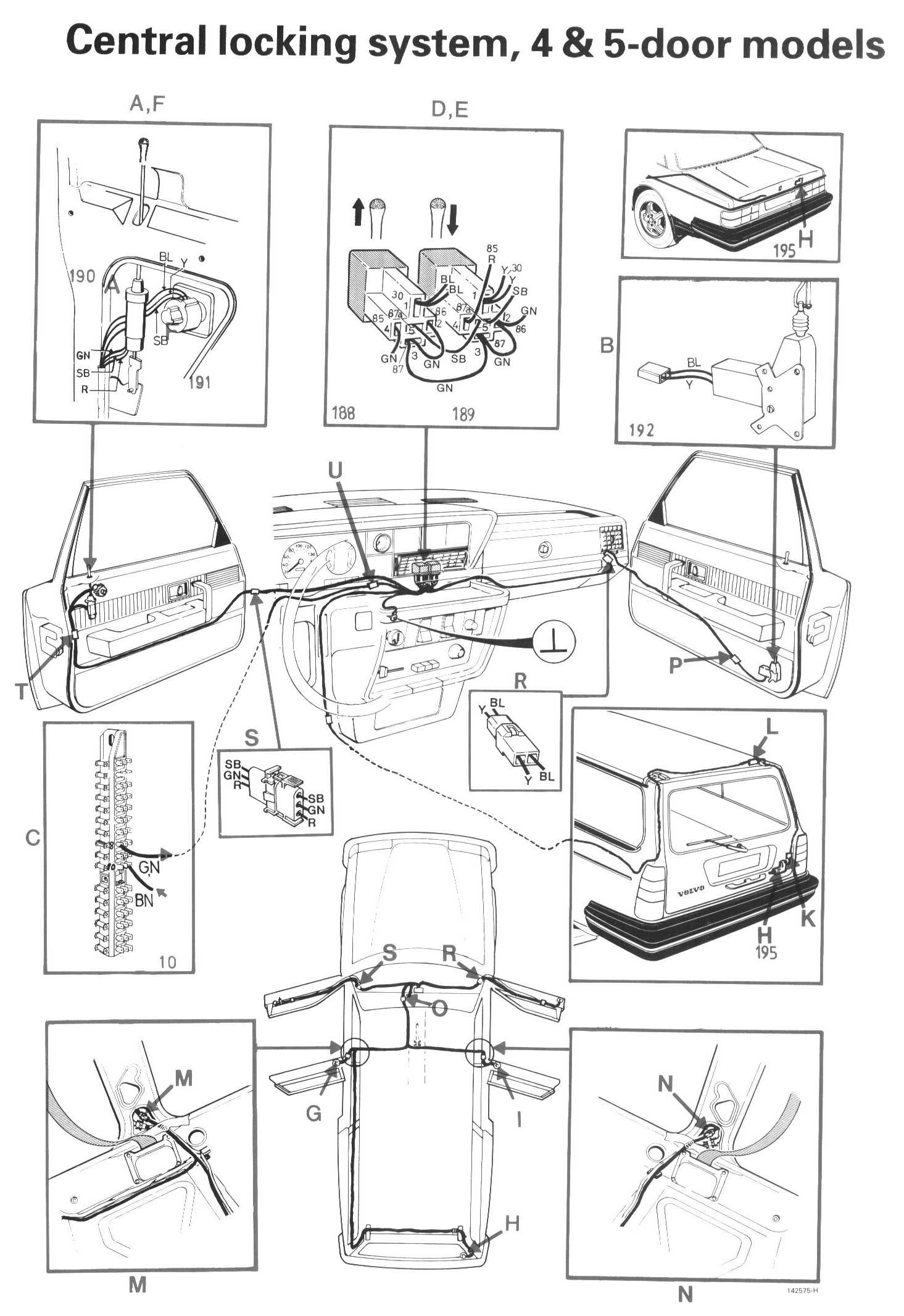

LEGEND
A Switch, link rod
B Motor, front left
C Fusebox
D Relay, unlocking
E Relay, locking
F Key switch
G Motor, rear left
H Motor, tailgate/boot lid
I Motor, rear right
K-U Connectors
