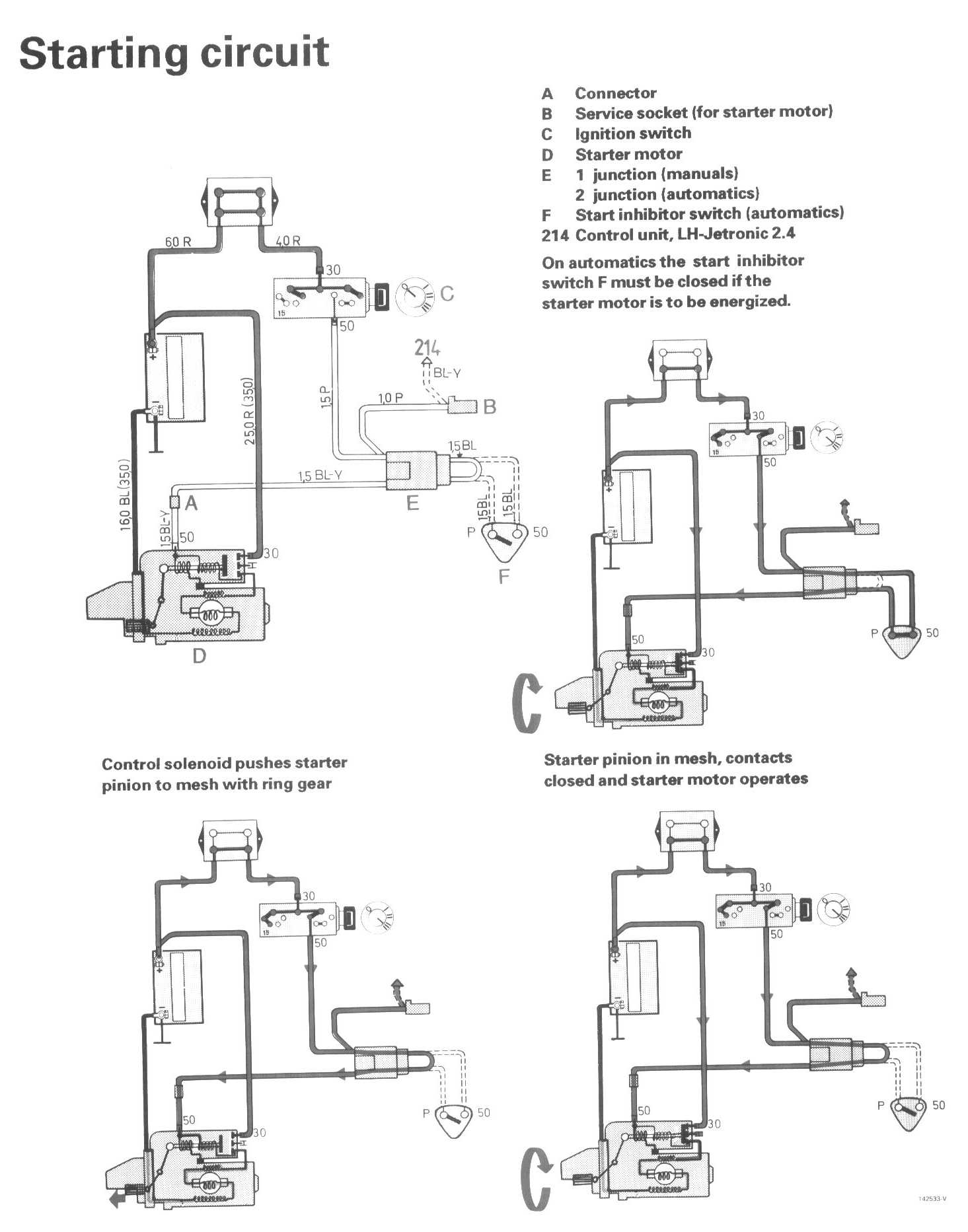

System Diagram

Wiring Diagrams:

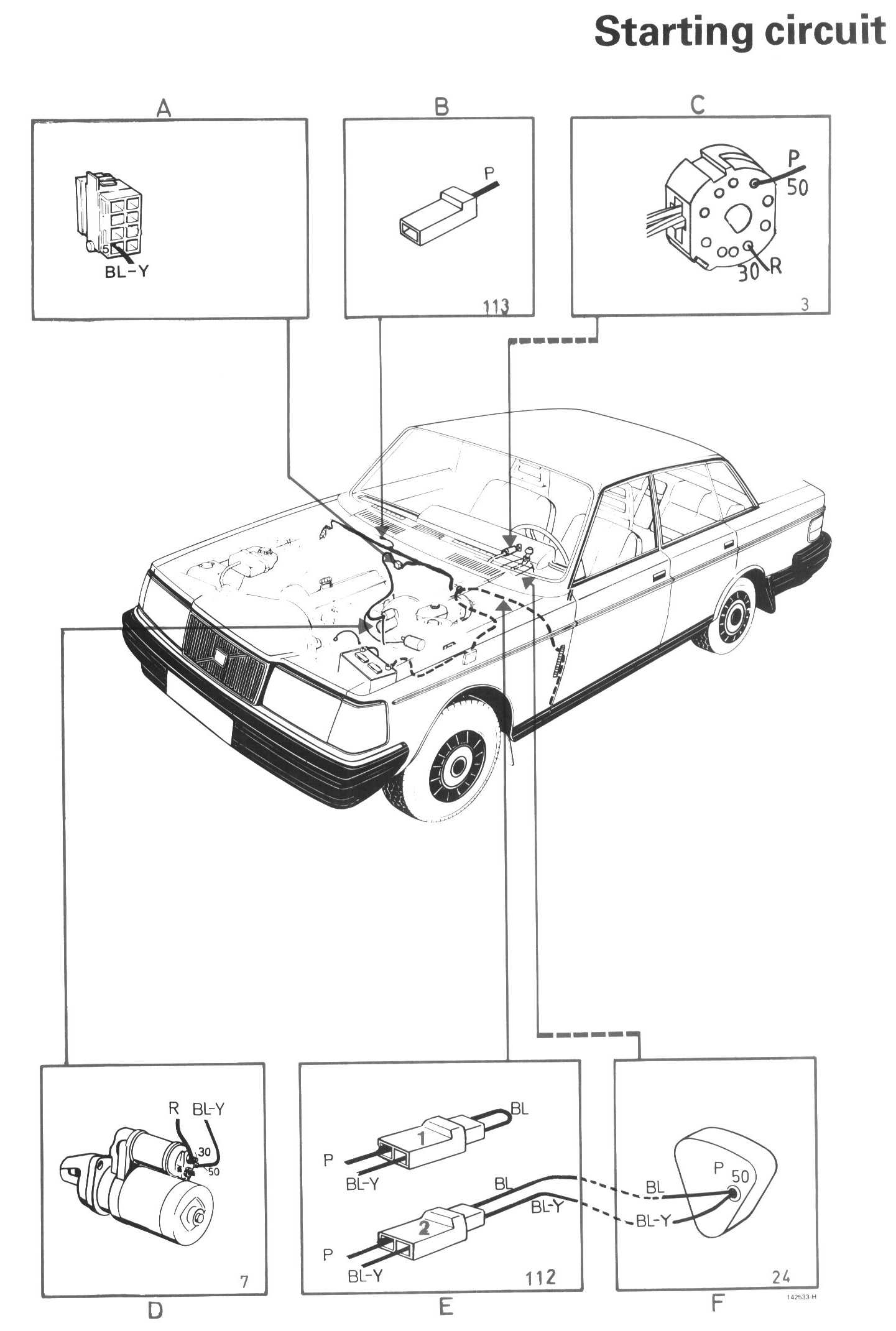

Component / Connector Views:

LEGEND
A Connector
B Service socket (for starter motor)
C Ignition switch
D Starter motor
E 1 junction (manuals)
2 junction (automatics)
F Start inhibitor switch (automatics)

214 Control unit. LH-jetronic 2.4
