Air Conditioning Components

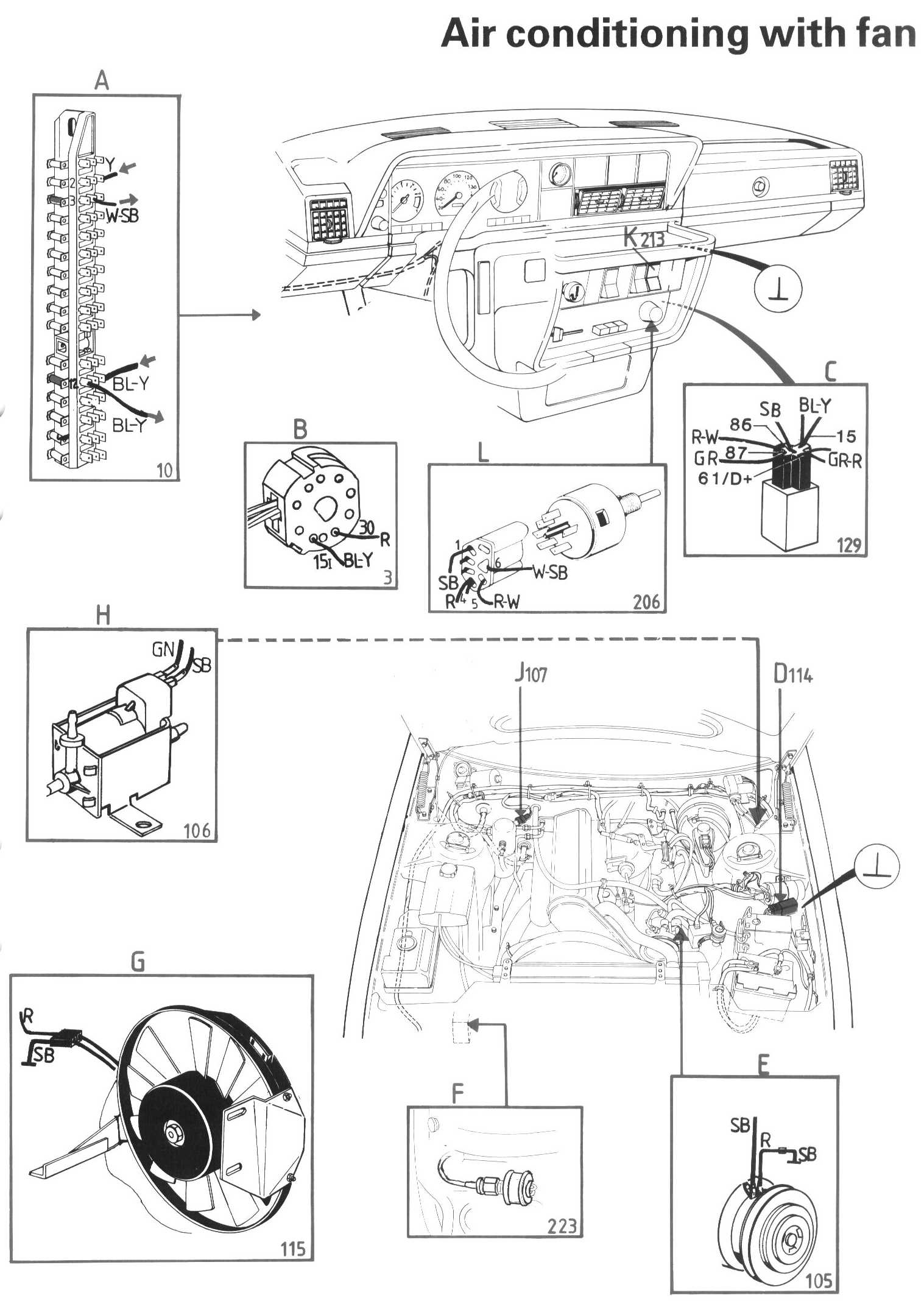

Component / Connector Views:

Wiring Diagrams:

LEGEND
A Fusebox
B Ignition switch
C Ground connection
D Fan relay
E Compressor solenoid
F Pressure sensor
G Electric fan
H Solenoid valve (E engine)
J Pressure sensor, dryer
K Switch, air conditioning
L Switch, heater fan
