Boot (Trunk) Light

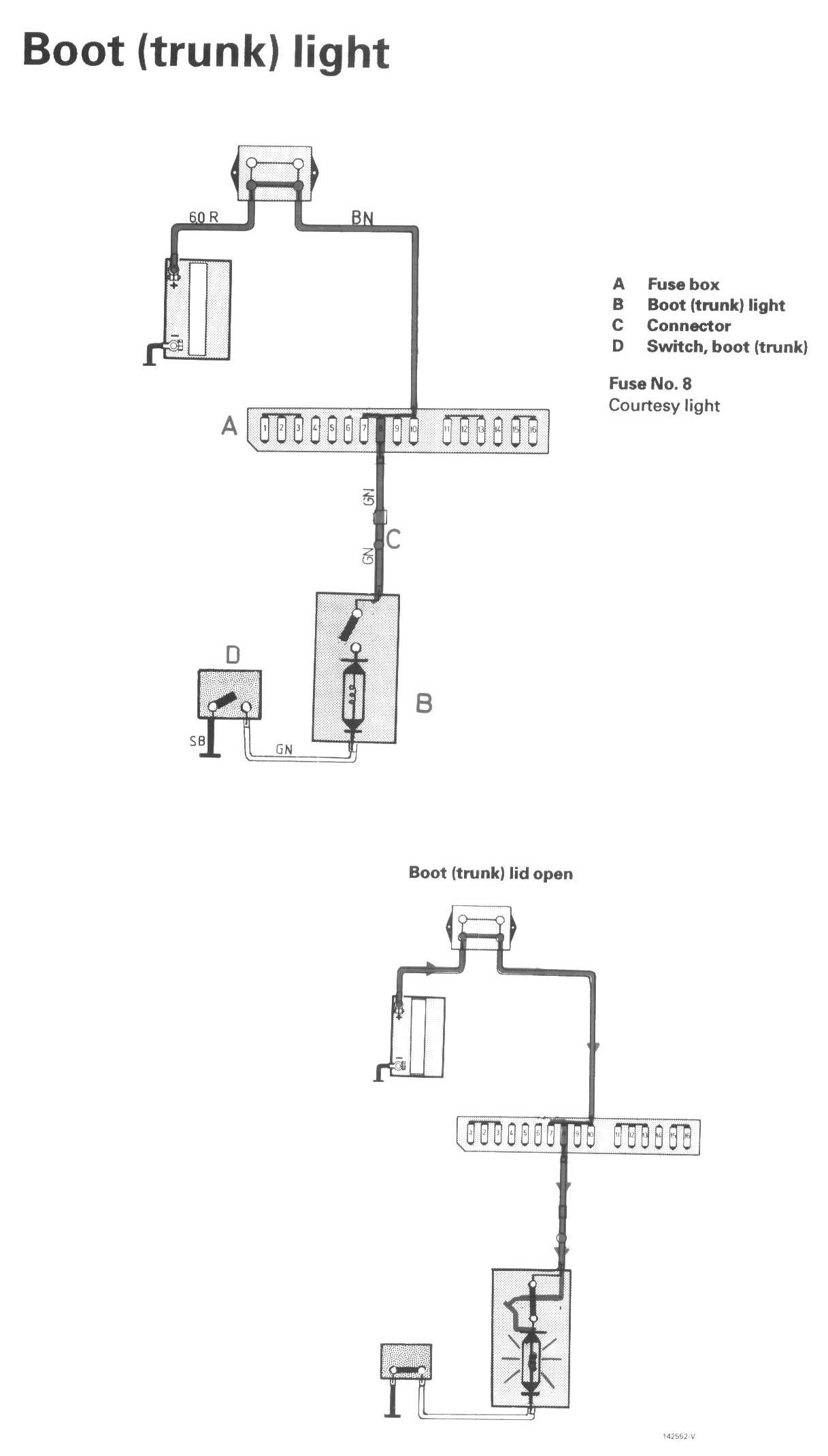

Wiring Diagrams:

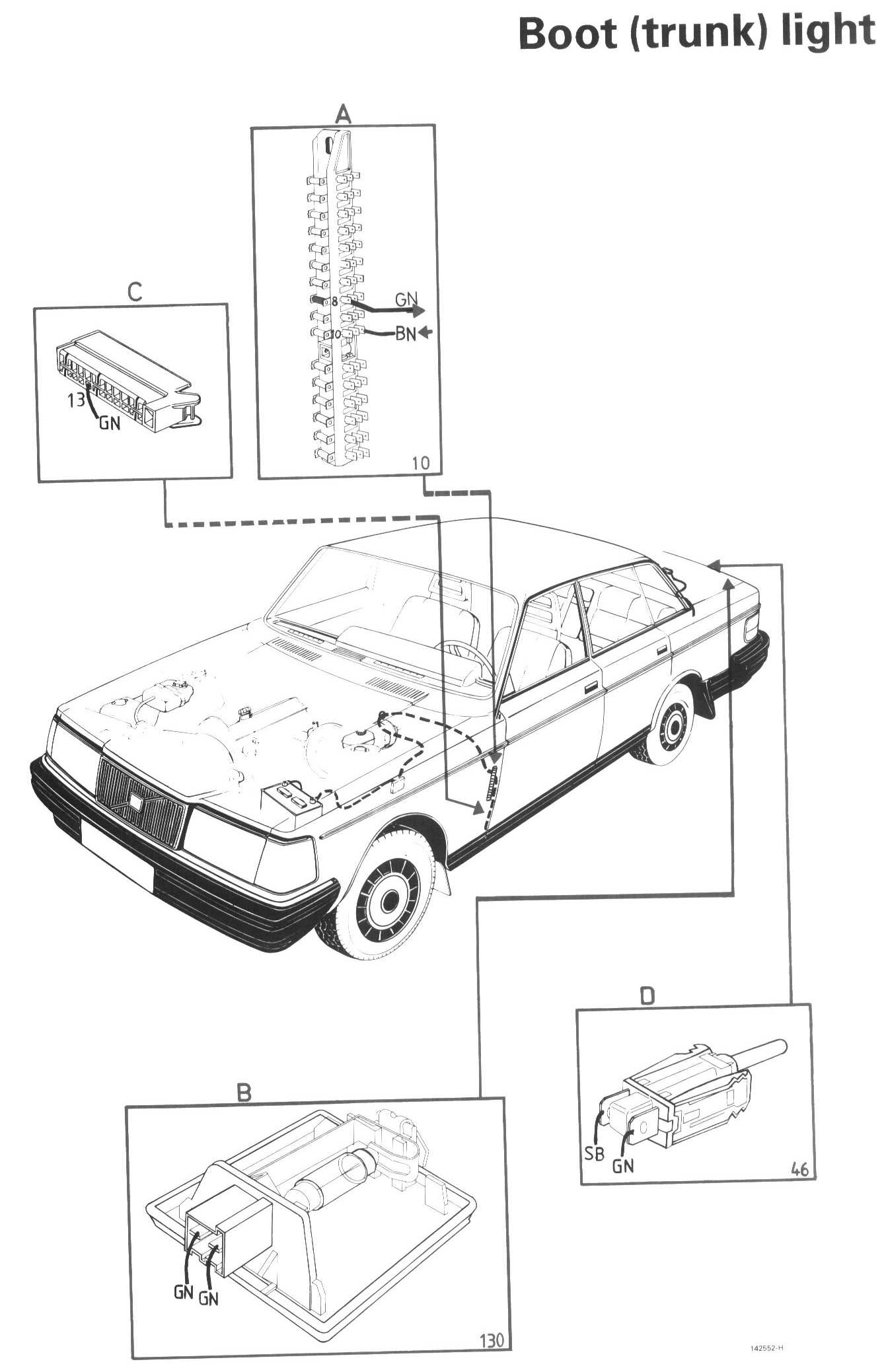

Component / Connector Views:




LEGEND
A Fusebox
B Boot (trunk) light
C Connector
D Switch, boot (trunk)
