Brake Lights With High Level Brake Light (USA)

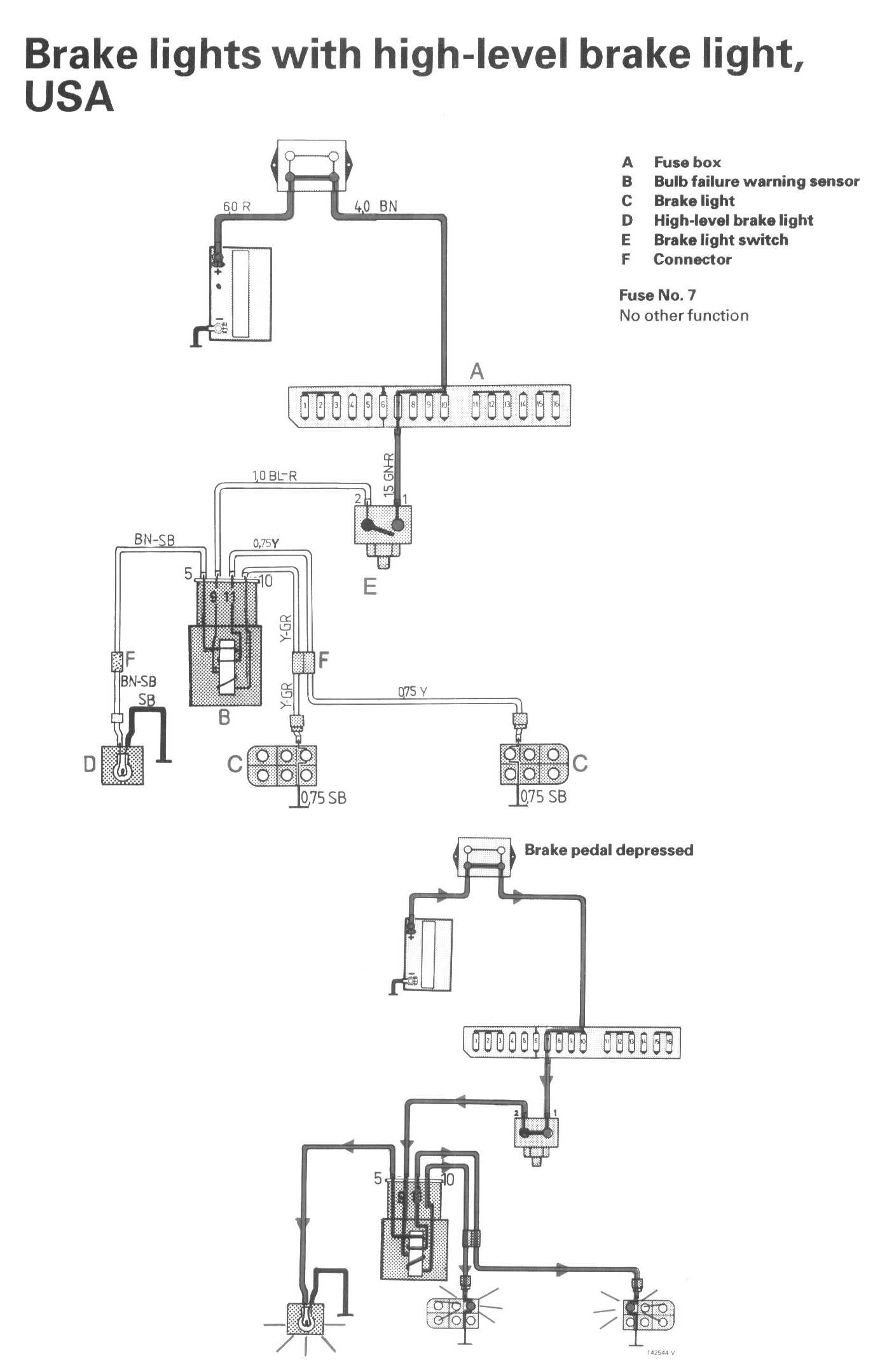

Wiring Diagrams:

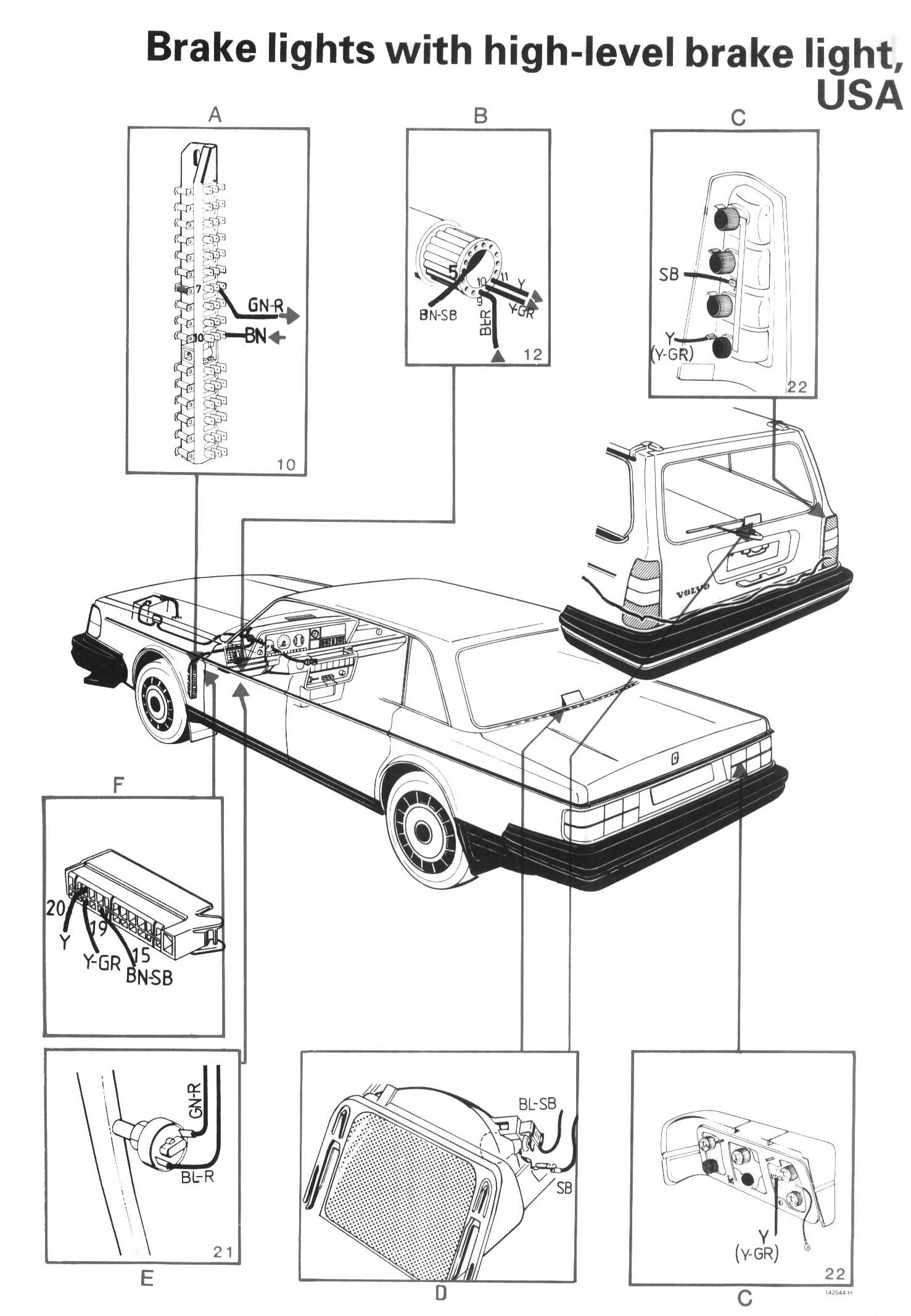

Component / Connector Views:

LEGEND
A Fusebox
B Bulb failure warning sensor
C Brake light
D High-level brake light
E Brake light switch
F Connector
