Bulb Failure Warning Sensor

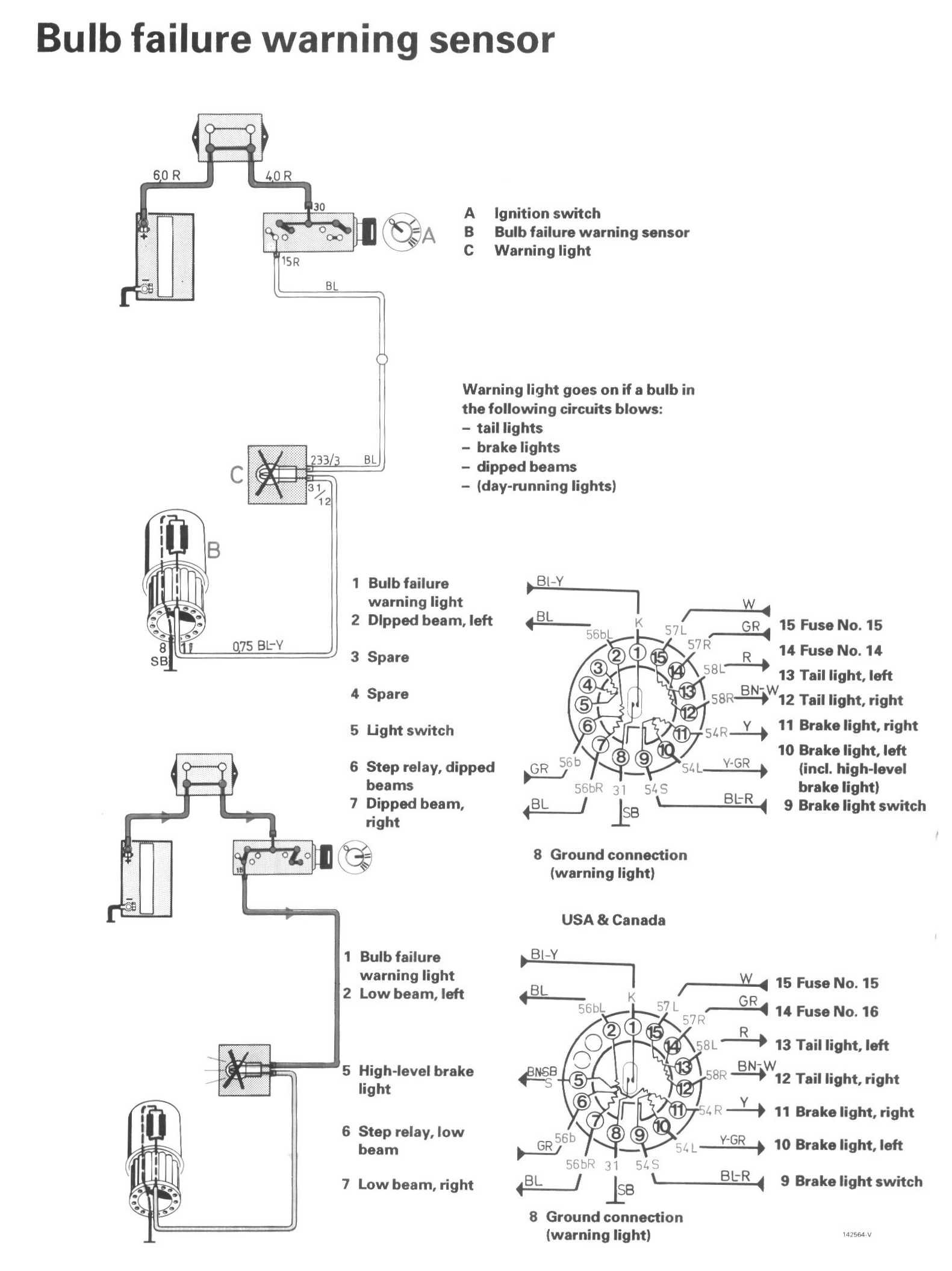

Wiring Diagrams:




Component / Connector Views:




LEGEND
A Ignition switch
B Bulb failure warning sensor
C Warning light
