Bulb Failure Warning Sensor, Brake Light Monitor (Europe)

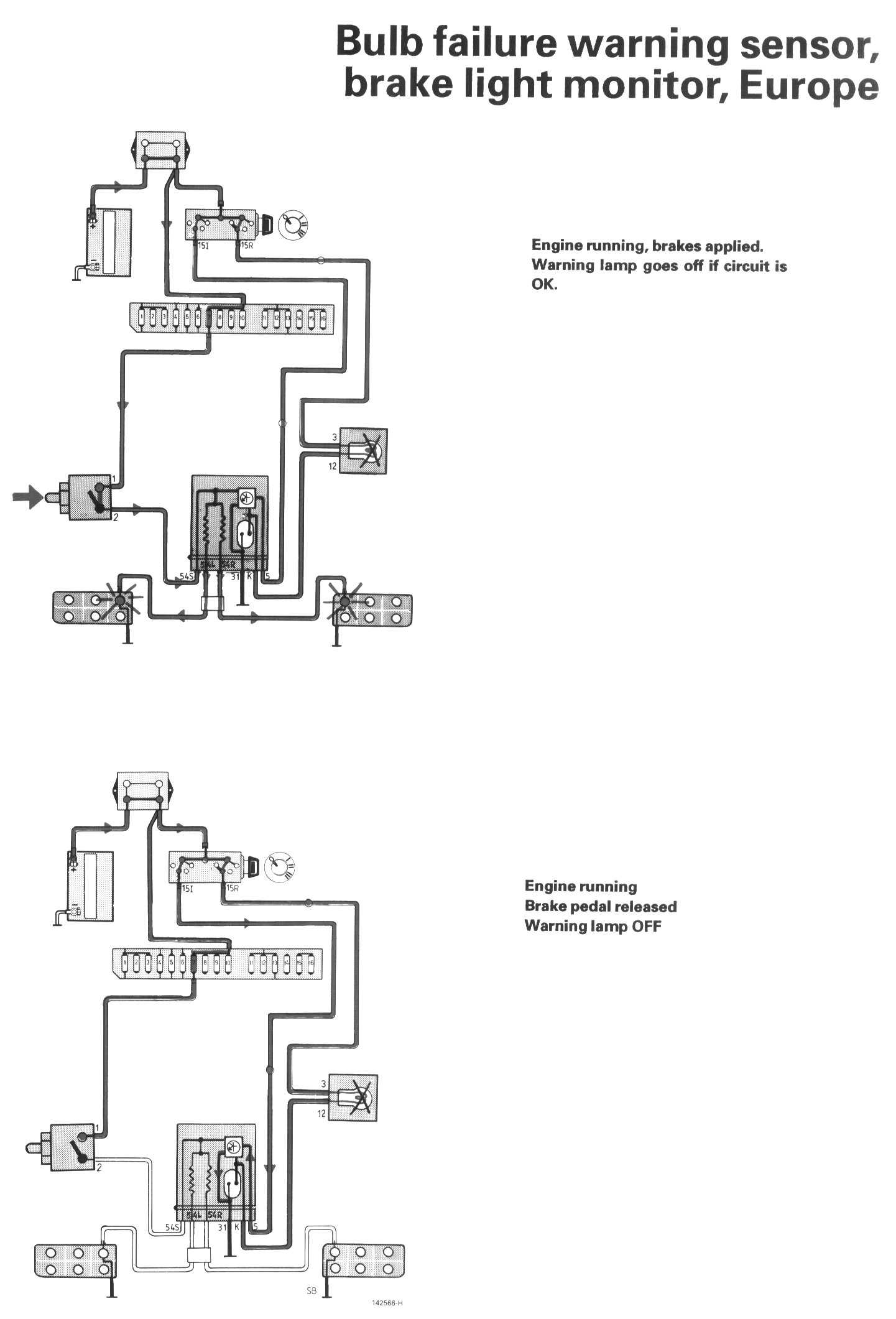

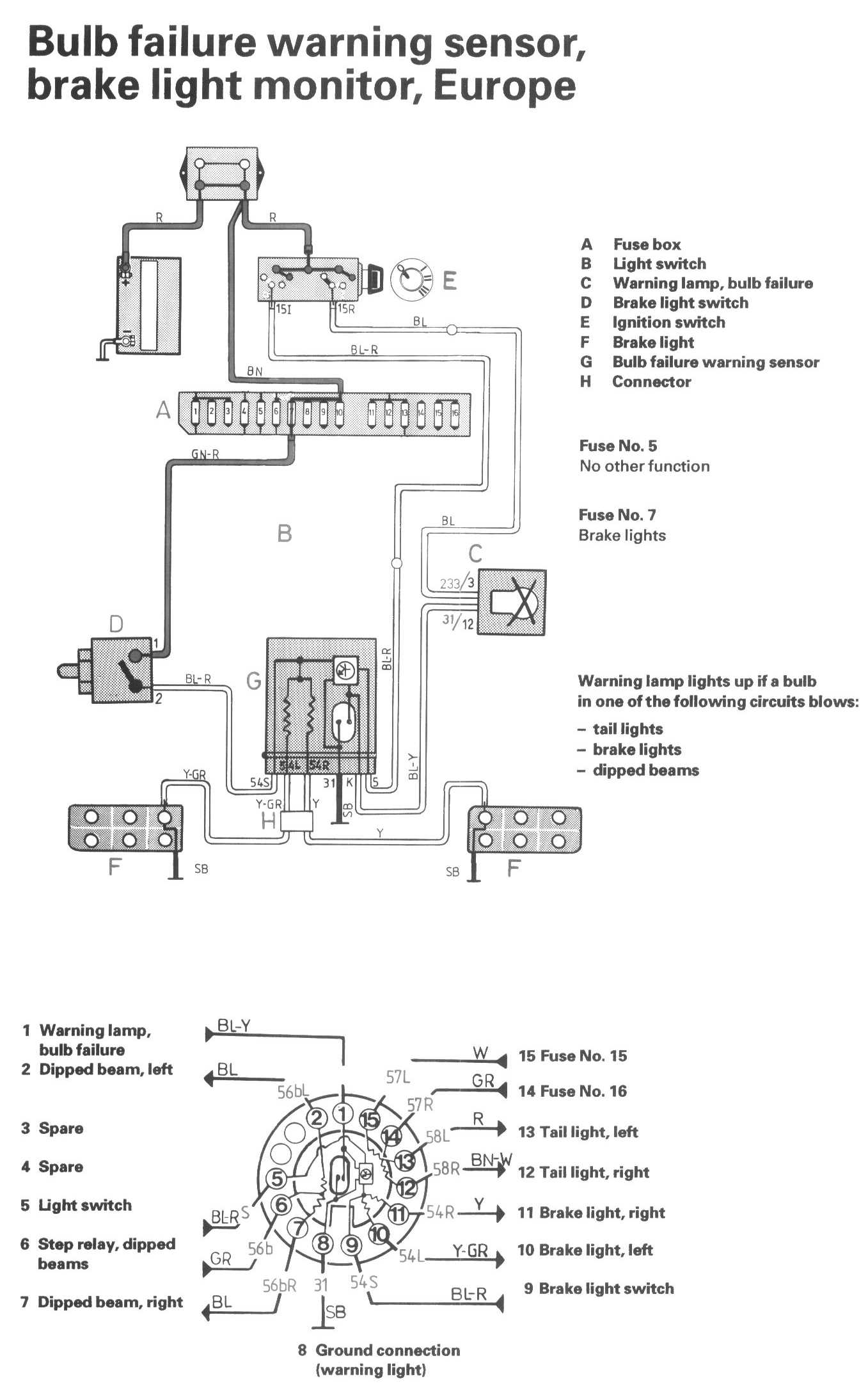

Wiring Diagrams:

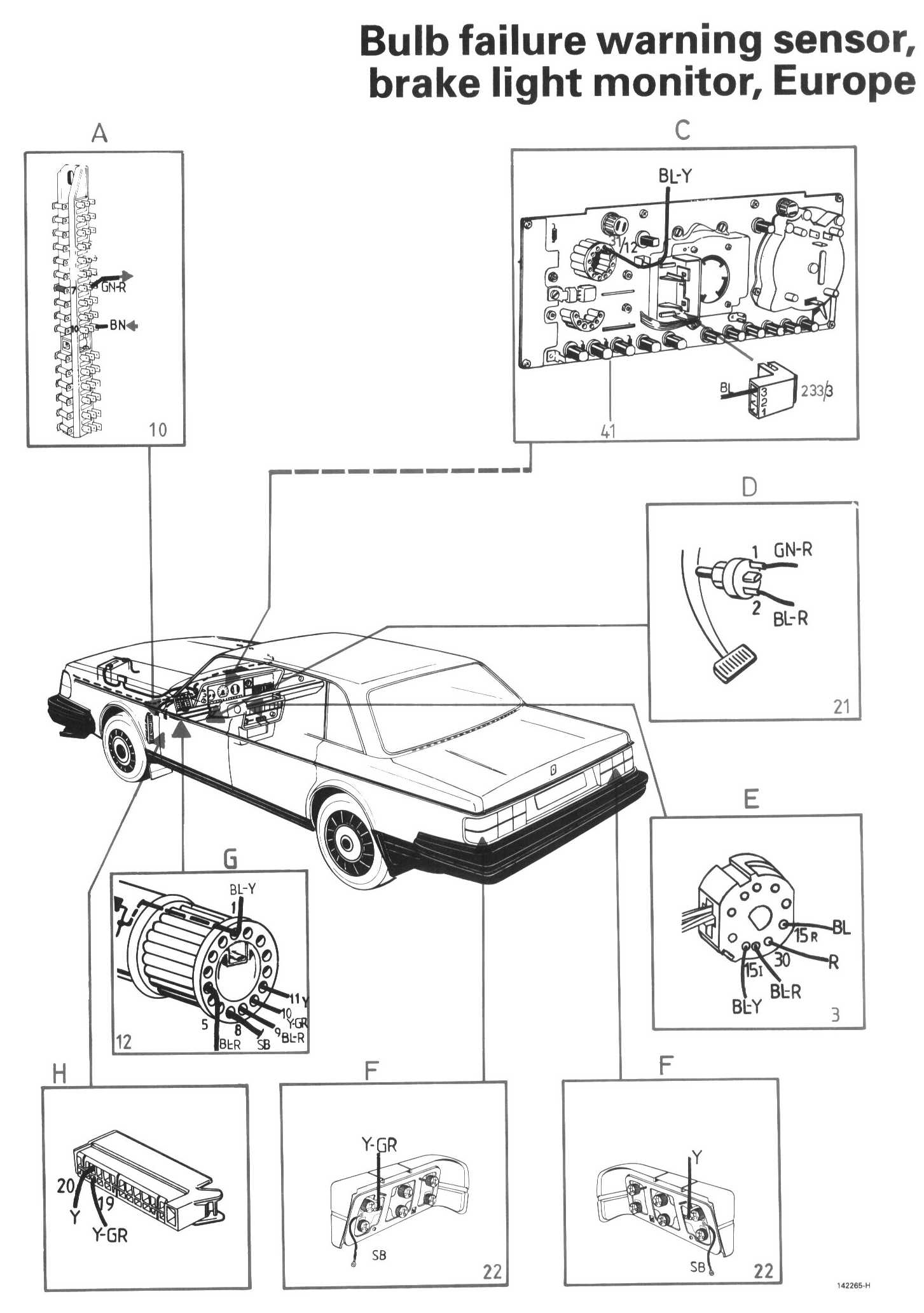

Component / Connector Views:

LEGEND
A Fusebox
B Light switch
C Warning lamp, bulb failure
D Brake light switch
E Ignition switch
F Brake light
G Bulb failure warning sensor
H Connector
