High / Low Beams (USA/Canada)

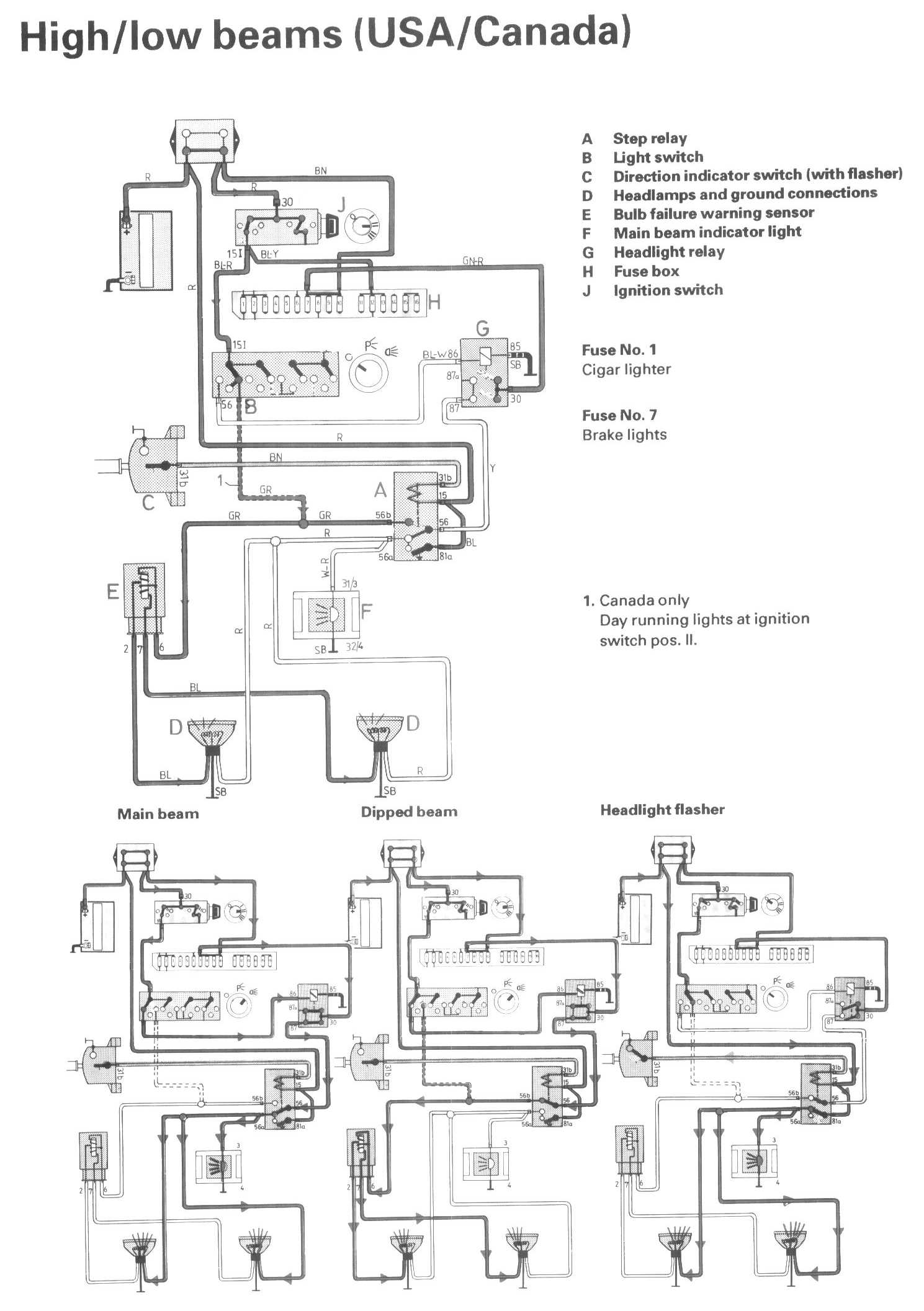

Wiring Diagrams:

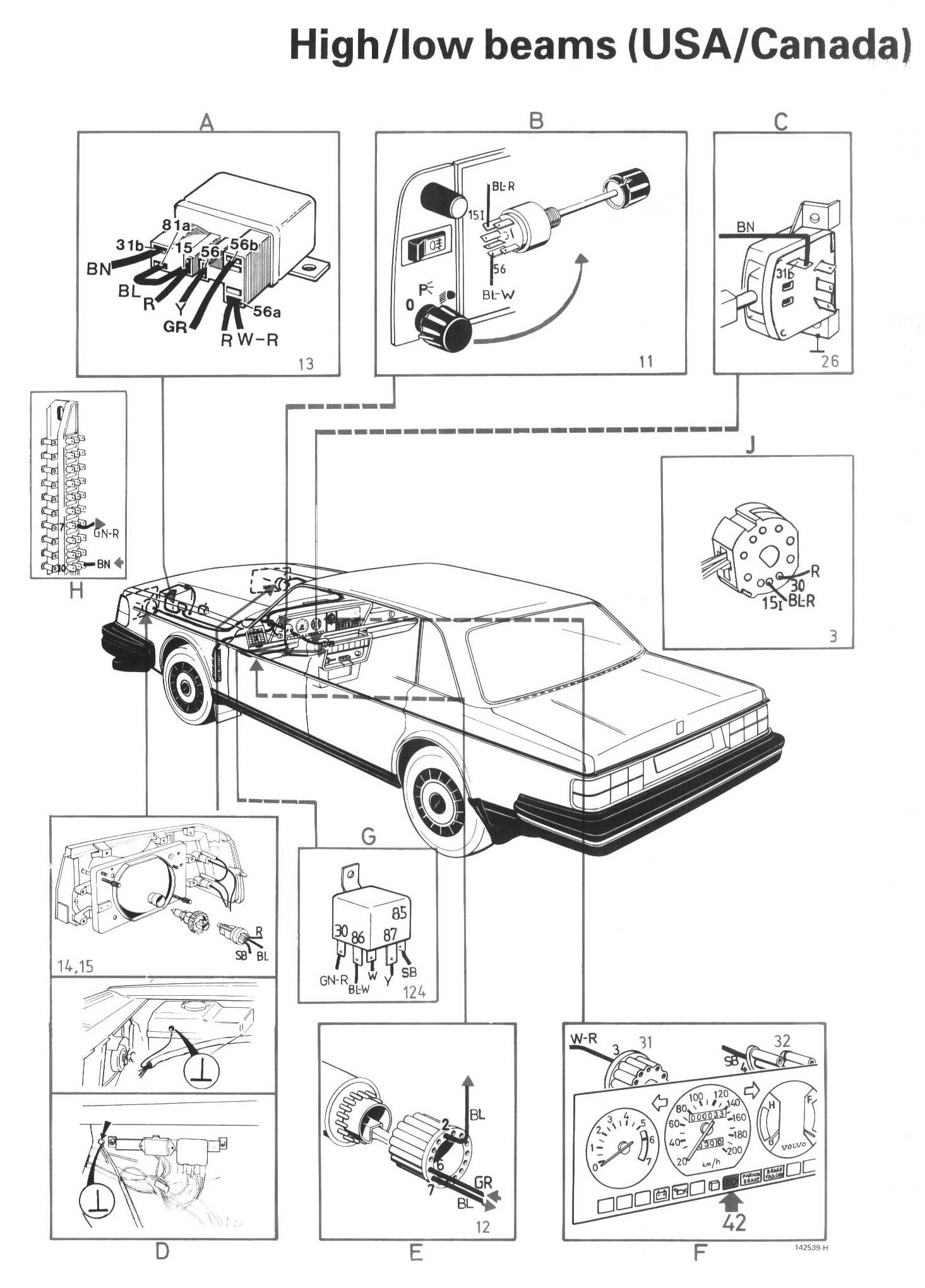

Component / Connector Views:

LEGEND
A Step relay
B Light switch
C Direction indicator switch (with flasher)
D Headlamps and ground connections
E Bulb failure warning sensor
F Main beam indicator light
G Headlight relay
H Fusebox
J Ignition switch
