Lighting, Instrument and Controls

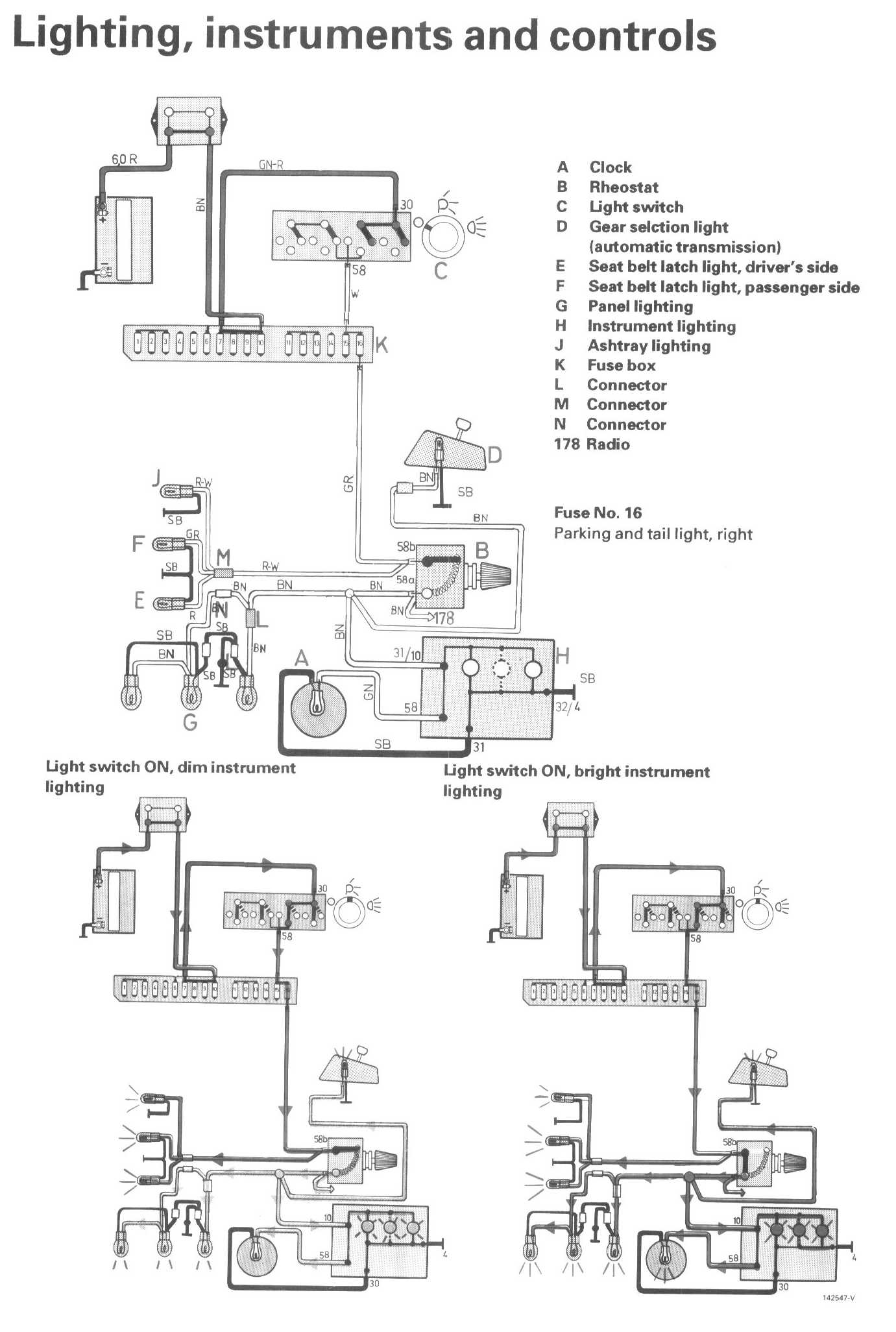

Wiring Diagrams:

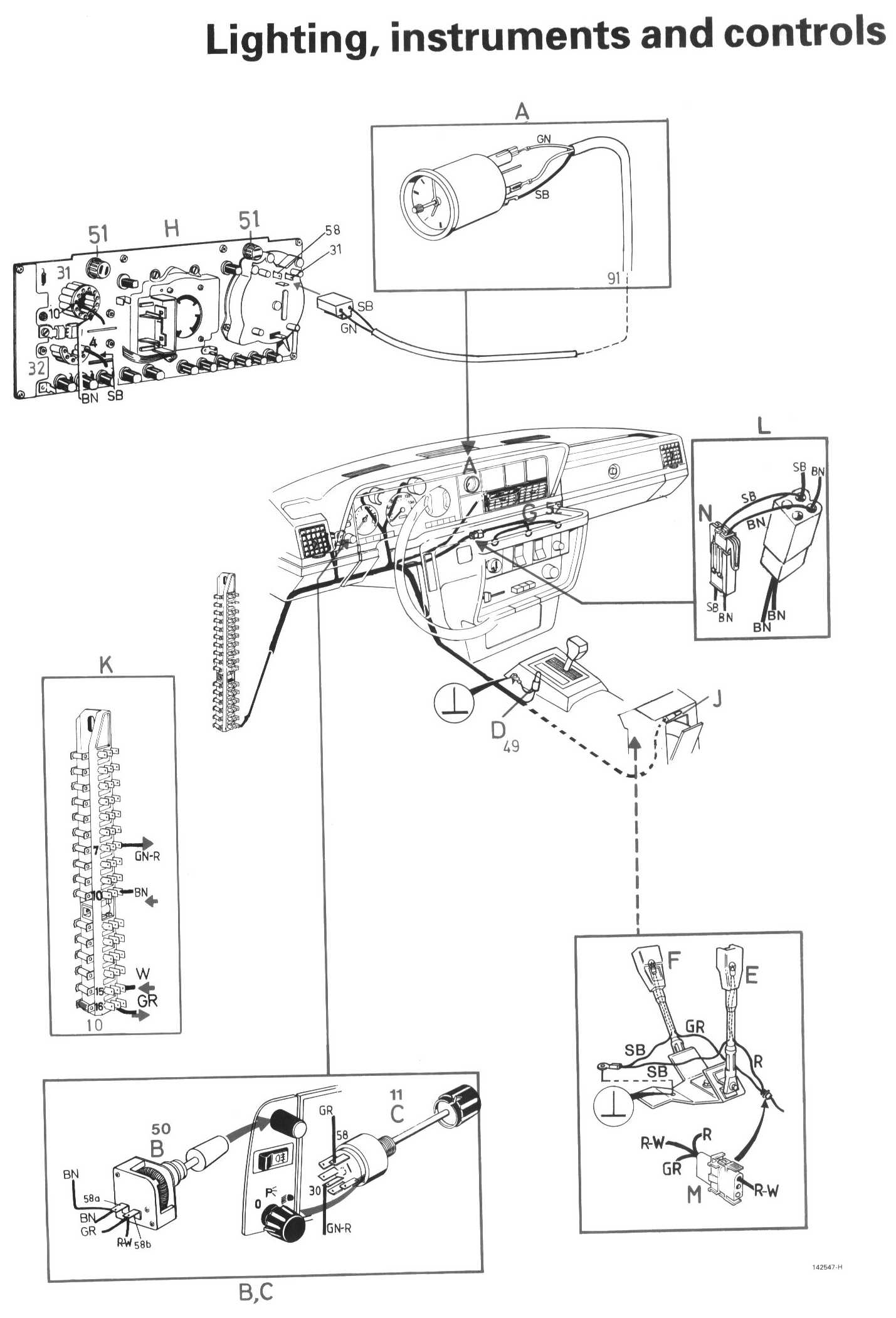

Component / Connector Views:

LEGEND
A Clock
B Rheostat
C Light switch
D Gear selection light (automatic transmission)
E Seat belt latch light. driver side
F Seat belt latch light, passenger side
G Panel lighting
H Instrument lighting
J Ashtray lighting
K Fusebox
L Connector
M Connector
N Connector

178 Radio
